Specifications
Brand Name :
topleader
Model Number :
BWP
Certification :
CE,ISO,SASO
Place of Origin :
China
MOQ :
1 set
Price :
US$15000-20000/set
Supply Ability :
300 SET/MONTH
Delivery Time :
30 DAYS
Packaging Details :
The whole Electric Flat Transfer Vehicle is packed by tarp, the parts are packed by the wooden case.
Item :
Mecanum Wheel Motorized Automated Mold Transport Trackless Electric Flat Transfer Vehicle
Material :
Q235B steel
Load capacity :
1-300 Ton
Table size :
Customized
Speed :
0-20m/min
Motor :
2*2.2lw
Application :
industry
Delivery time :
45 days
Cargo transported :
heavy cargoes
Key Words :
Electric Flat Transfer Vehicle
Description

Mecanum Wheel Motorized Automated Mold Transport Trackless Electric Flat Transfer Vehicle

Brief Introduction of Electric Flat Transfer Vehicle

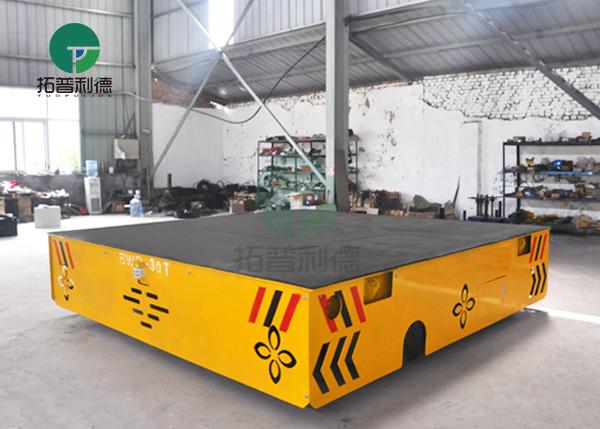

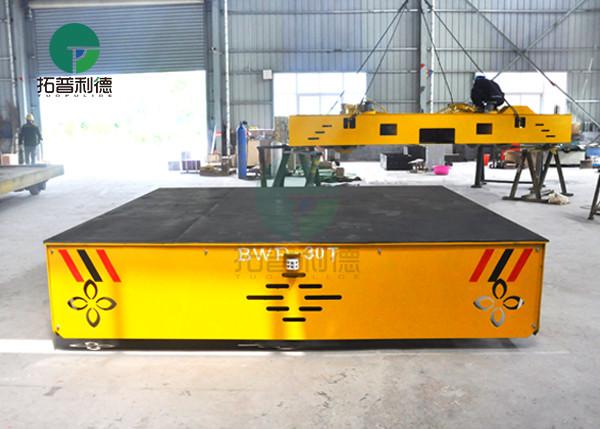

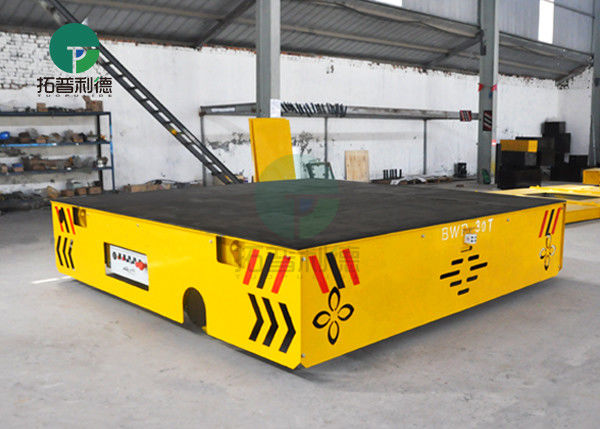

The Mecanum Wheel Motorized Automated Mold Transport Trackless Electric Flat Transfer Vehicle consist of steel structure bearing frame, driving device, DC motor, storage battery, intelligent charger, fixed wheels, gear train, steering gear, running gear, electric control box and so on. Electric flat transfer vehicle is a kind of trackless motorized material transfer vehicle.

It is powered by storage battery. The battery is installed in the transfer vehicle and we also equip intelligent charger for it. The transfer vehicle is controlled to go forward, backward, turn left, turn right, adjust speed through PLC and speed controller. It can turn around on the cement and concrete floor.

Mecanum Wheel Motorized Automated Mold Transport Trackless Electric Flat Transfer Vehicle

Custom Options of Electric Flat Transfer Vehicle

Flat decks or fixtures customized for specific loads.

Custom deck configurations including built-in scales and lift/tilt/rotate capabilities.

Track or trackless, non-guided steering. Alternative drive and steering systems including gear reducer axle drives and individually-controlled drive wheels.

Fixed or variable speeds with forward/reverse function.

Drives with acceleration/deceleration capabilities.

Variety of operator control systems including fixed user interface, pendant control on coil cord, and radio-controlled remote operation.

Safety features including horns, flashing lights, e-stops, bumpers and collision avoidance systems.

Mecanum Wheel Motorized Automated Mold Transport Trackless Electric Flat Transfer Vehicle

Application of Electric Flat Transfer Vehicle

The electric flat transfer vehicle is mainly applied in assembly line, metallurgy industry, warehouse transport, ship industry, work piece transport in workshop, lathe transport, steel factory, construction, petroleum industry, energy, chemical industry, railway, etc.

Mecanum Wheel Motorized Automated Mold Transport Trackless Electric Flat Transfer Vehicle

Parameter of Electric Flat Transfer Vehicle

Model
 BWP-2T BWP-10T BWP-20T BWP-30T BWP-50T BWP-80T BWP-100T
Rated load (T) 2 10 20 30 50 80 100
Table size length(L) 2000 2300 2400 3500 5500 6500 6600
Width(W) 1500 2000 2200 2200 2600 2800 3000
Height(H) 450 500 600 700 800 950 1200
Wheel Base (mm) 1080 1650 2800 1650 2000 1950 2000
Axle Base (mm) 1380 1850 1435 2700 2850 3500 4000
Wheel Diameter(mm) Φ250 Φ400 Φ350 Φ450 Φ600 Φ600 Φ600
Wheel Quantity(Nos) 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75 75
Running speed (m/min) 0-25 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 2*1.2 2*2.2 2*4.5 2*5.5 2*7.5 30 40
Battery Capacity(Ah) 250 250 400 450 500 800 1000
Battery Voltage(V) 24 48 48 48 72 72 72
Running Time When Full Load 2.5 2.8 2.2 2 2.5 2 1.9
Running Distance for one Charge(Km) 3 3.4 2.7 2.4 3 32.4 2.3
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 185 190
Reference Weight (t) 2.3 4.2 5.9 6.8 8 14.6 26.8

Mecanum Wheel Motorized Automated Mold Transport Trackless Electric Flat Transfer Vehicle

About Us

Xinxiang New Leader Machinery Manufacturing Co., Ltd is devoted to manufacture and sell lifting and handling equipment. We can produce 1-500 ton range of various tonnage of KPD rail low voltage series, KPJ cable reel series, KPC safety sliding line series, KPX battery powered series, BWP rubber wheel transfer cart series, KPT towed cable series, KP non-power type seven series which including turning electric flat car, trackless electric flat car, ladle car, ferry electric flat car, hydraulic lifting electric transfer car, electric winch, rail wheel and so on more than 90 products.
