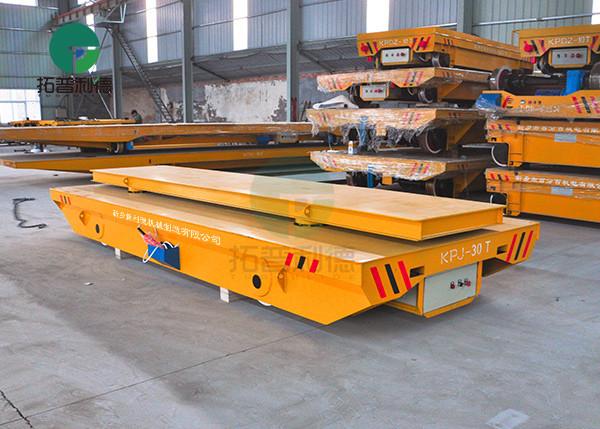

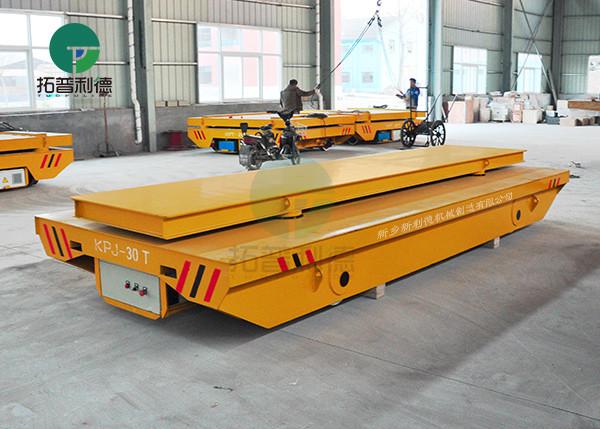

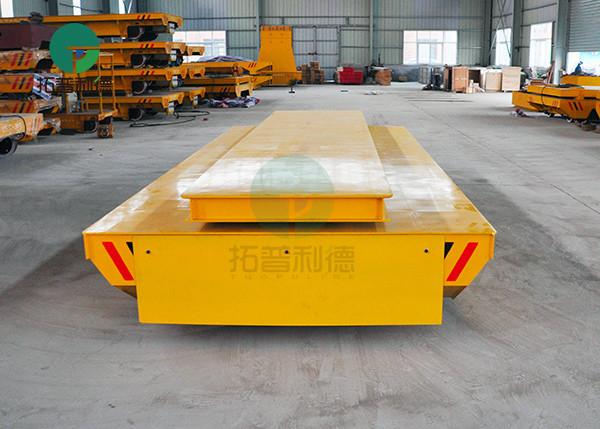

30 Ton Heavy Duty Material Handling Platform Cable Powered Electric Flat Transfer Cart With Lifting System

Brief Introduction --- Electric Flat Transfer Cart

The 30 Ton Heavy Duty Material Handling Platform Cable Powered Electric Flat Transfer Cart With Lifting System which is running on the rails. It is designed for material handling from one bay to another in the working site. As the rail electric flat transfer carts are equipped with steel wheels and move on steel rails, and the very low friction between steel and steel, the rail electric flat transfer carts are suited to very high loading capacities.

Working Principle --- Electric Flat Transfer Cart

The electric flat transfer cart is the cable reels powered, the transfer vehicle gets power AC 380v through the device of cable reel, and the motor is controlled by the power through AC control system that make the electric flat transfer cart to start, stop, go forward, backward, adjust the speed and so on.

To avoid damage to the cable, add a cable reel as a retracting/discharging device. Due to the limitation of the cable, it is suitable for a short-distance rail transportation system, but its structure is simple and the price is low. Therefore, it is also a common rail transportation equipment in the workshop.

The power supply can be customized according as your true demands, such as battery powered, low voltage rail powered, busbar powered, etc.

Custom Options --- Electric Flat Transfer Cart

1. load capacity, table size and rail gauge can be customized.

2. Options:

a. Remote radio control (imported or made in China)

b. Automatic stop when detecting obstacle or person, limit switches (to limit travel)

c. Automatic cutting off power on rail

3. Variable speed device (VFD)

4. Electrical parts can be optional (made in China or imported)

5. Can be designed to meet special working environment such as high temperature.

Parameter List --- Electric Flat Transfer Cart

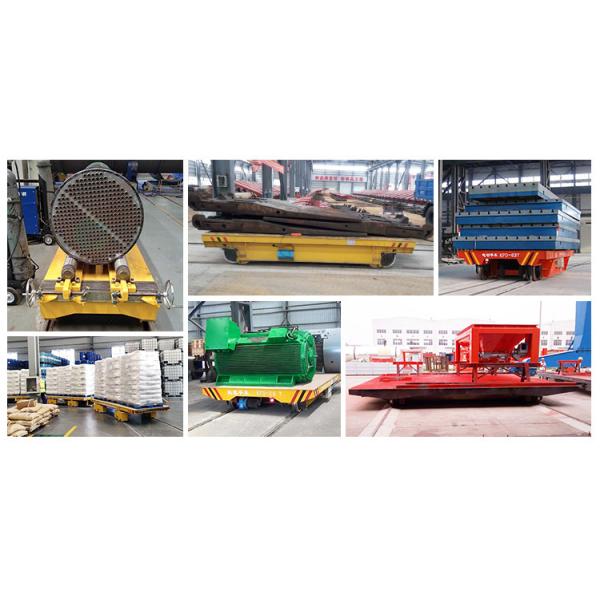

Application --- Electric Flat Transfer Cart

This series electric flat transfer cart can be widely applied in many fields, such as automobile, steel factory, heavy industry, light industry, machinery, petroleum, metallurgy, mining, chemical industry, engineering, aerospace, coal, nuclear energy, shipyard, water conservancy, etc.

Tags: Electric Transfer Cart, Rail Transfer Cart
