Specifications
Brand Name :
Topleader
Model Number :
KPX-Dies Molds Transporter
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$3000-$12000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
30-40 days after receive your prepayment
Packaging Details :
The whole Dies Molds Transporter will be packed by the tarp, the parts will be packed by polywood case.
Product name :
Custom Heavy Duty Dies Molds Transporter For Factory Material Handling With Electric Powered
Power supply :
Battery Powered
Key Words :
Dies Molds Transporter
Load capacity :
1-300T
Running speed :
0-30m/min(adjust)
Application :
Factory ,warehouse and working line
Warranty :
1 year
Color :
Customized
OEM :
Accepted
Description

Custom Heavy Duty Dies Molds Transporter For Factory Material Handling With Electric Powered

Product Introduction --- Dies Molds Transporter

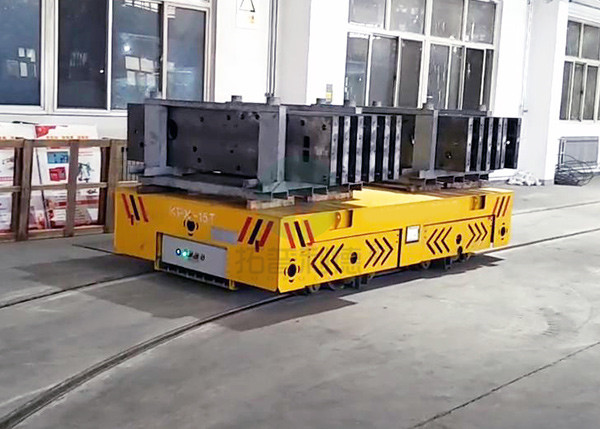

The Custom Heavy Duty Dies Molds Transporter For Factory Material Handling With Electric Powered is an electric driven material handling cart designed for die, mold transport in the workshop. This series transfer cart can be divided into two types, running on rail and without rail running on ground directly. The rail type transfer cart with the cast steel wheels, and the steerable transfer trailer adopt Pu wheels.

The powered supply of the transfer cart can be choosed according as per demands, such as battery powered, rail powered, busbar powered, diesel powered, etc.

Custom Heavy Duty Dies Molds Transporter For Factory Material Handling With Electric Powered

Custom Options --- Dies Molds Transporter

Flat decks or fixtures customized for specific loads.

Custom deck configurations including built-in scales and lift/tilt/rotate capabilities.

Track or trackless, non-guided steering. Alternative drive and steering systems including gear reducer axle drives and individually-controlled drive wheels.

Fixed or variable speeds with forward/reverse function.

Drives with acceleration/deceleration capabilities.

Variety of operator control systems including fixed user interface, pendant control on coil cord, and radio-controlled remote operation.

Safety features including horns, flashing lights, e-stops, bumpers and collision avoidance systems.

Custom Heavy Duty Dies Molds Transporter For Factory Material Handling With Electric Powered

Parameter --- Dies Molds Transporter

Rated load (T)

2

10

20

30

50

63

150

Table size

length(L)

2000

3600

4000

4500

5500

5600

10000

Width(W)

1500

2000

2200

2200

2500

2500

3000

Height(H)

450

500

550

600

650

700

1200

Wheel Base (mm)

1200

2600

2800

3200

4200

4300

7000

Rail Inner Gauge (mm)

1200

1435

1435

1435

1435

1435

2000

Wheel Diameter(mm)

Φ270

Φ300

Φ350

Φ400

Φ500

Φ600

Φ600

Wheel Quantity

4

4

4

4

4

4

8

Ground Clearance (mm)

50

50

50

50

50

75

75

Running speed (m/min)

0-25

0-25

0-20

0-20

0-20

0-20

0-18

Motor Power (Kw)

1

1.6

2.2

3.5

5

6.3

15

Battery Capacity(Ah)

180

160

180

250

330

400

600

Battery Voltage(V)

24

48

48

48

48

48

72

Running Time When Full Load

4.32

4.8

4

3.5

3.3

3

2.9

Running Distance for one Charge(Km)

6.5

7.2

4.8

4.2

4

3.6

3.2

Max Wheel Load (KN)

14.4

42.6

77.7

110.4

174

221.4

265.2

Reference Weight (t)

2.8

4.2

5.9

6.8

8

10.8

26.8

Recommended Rail Model

P15

P18

P24

P38

P43

P50

QU100

Applications --- Dies Molds Transporter

The mold transport trolley can be widely used in assembly line (ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction(bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry (electrolytic cell, retort etc), railway (rail maintenance, rail welding, train tractor).

Custom Heavy Duty Dies Molds Transporter For Factory Material Handling With Electric PoweredCustom Heavy Duty Dies Molds Transporter For Factory Material Handling With Electric Powered

Customer Visit

Custom Heavy Duty Dies Molds Transporter For Factory Material Handling With Electric Powered

Processing Flow

Custom Heavy Duty Dies Molds Transporter For Factory Material Handling With Electric Powered

Our After-Sale Service

  • Our commitment: The load bearing safety factor of the trolley is no less than 120%.

  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.

  • 16 hours engineering service and 24 hours internet service for our customers.

  • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.

  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
