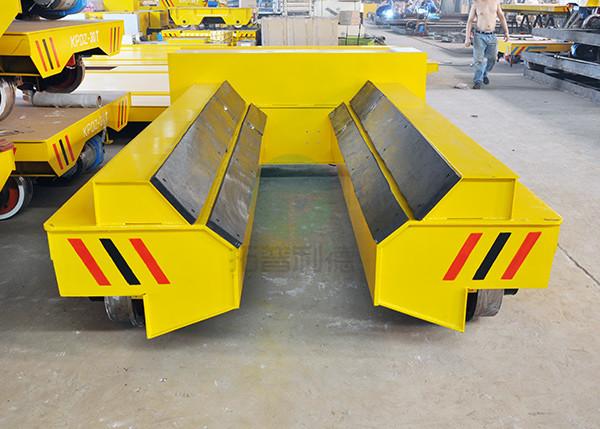

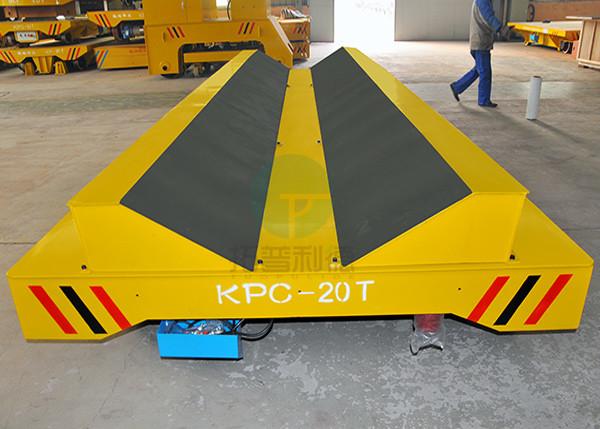

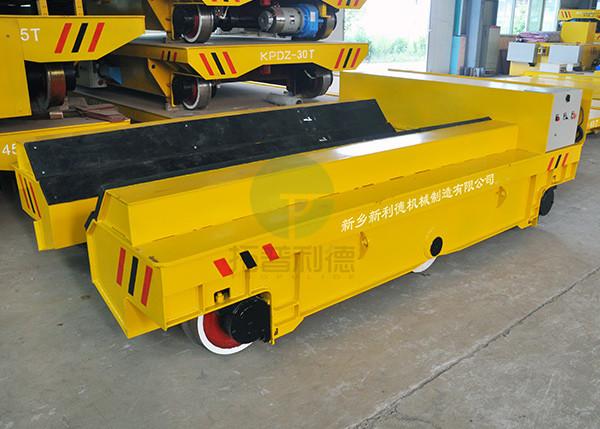

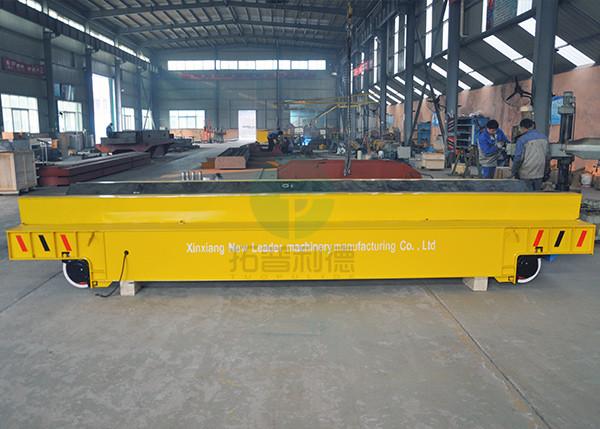

50ton high temperature proof transport handling V-deck railway wagon
50ton high temperature proof transport handling V-deck railway wagon
50ton high temperature proof transport handling V-deck railway wagon
50ton high temperature proof transport handling V-deck railway wagon
50ton high temperature proof transport handling V-deck railway wagon
50ton high temperature proof transport handling V-deck railway wagon
50ton high temperature proof transport handling V-deck railway wagon
50ton high temperature proof transport handling V-deck railway wagon
Specifications
Brand Name :
Topleader
Model Number :
KPC
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$4000-$8000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
30-40 days after receive your prepayment
Packaging Details :
The whole V-deck railway wagon will be packed by the tarp, the parts will be packed by polywood case.
Product name :
50ton high temperature proof transport handling V-deck railway wagon
Power supply :
Sliding line power
Size :
Customized
Load capacity :
1-500T
Running speed :
30m/min(adjust)
Application :
Crane manufacturing industry ,metallurgical industry and other industry
Warranty :
1 year
Color :
Customized
Key Words :
V-deck railway wagon
Description

50ton high temperature proof transport handling V-deck railway wagon

Brief Introduction ---V-deck railway wagon

The V-deck railway wagon is applied in shipbuilding. It is powered by shrouded bus bar. The vehicle conducts 360V/ AC via busbar directly to the AC motor, which drive the cart wheel start, stop, move forward or backward, etc.

50ton high temperature proof transport handling V-deck railway wagon

Working Principle --- V-deck motorized wagon

V-deck railway wagon are powered by the sliding line,is conducts AC 380V sliding wire directly into the AC electrical control system of the transfer cart to let it star,stop,go forward,backward and so on.

50ton high temperature proof transport handling V-deck railway wagon

Performance Characteristics --- V-deck railway wagon

V-deck railway wagon carts are running on track.The series' carts have low cost , With hydraulic lifting and dumping system.

Suitable for the conditions of short running distance,high using frequency,low cart's and assembly line works.

50ton high temperature proof transport handling V-deck railway wagon

Parameter List ---V-deck railway wagon

Model

KPC-2T

KPC-5T

KPC-10T

KPC-20T

KPC-30T

KPC-50T

KPC-100T

KPC-150T

Rated load (T)

2

5

10

20

30

50

100

150

Table size

length(L)

2000

3500

3600

4000

4500

5500

6500

10000

Width(W)

1500

2000

2000

2200

2200

2500

2800

3000

Height(H)

450

450

500

550

600

650

850

1200

Wheel Base (mm)

1200

2500

2600

2800

3200

4200

4900

7000

Rail Inner Gauge (mm)

1200

1435

1435

1435

1435

1435

2000

2000

Wheel Diameter(mm)

Φ270

Φ300

Φ300

Φ350

Φ400

Φ500

Φ600

Φ600

Wheel Quantity(Nos)

4

4

4

4

4

4

4

8

Ground Clearance (mm)

50

50

50

50

50

50

75

75

Running speed (m/min)

0-25

0-25

0-20

0-20

0-20

0-20

0-20

0-18

Motor Power (Kw)

0.8

1.5

1.5

2.5

4

5.5

11

15

Max Wheel Load (KN)

14.4

25.8

42.6

77.7

110.4

174

343.8

265.2

Reference Weight (t)

2.3

3.3

3.8

5.5

6.3

7.6

13.9

26

Recommended Rail Model

P15

P18

P18

P24

P38

P43

QU100

QU100

Application --- V-deck railway wagon

It is widely applied for Hoist and Crane manufacturing industry ,metallurgical industry and other industry
