55ton metal ore factory plant interbay transport railway guided power wagon

Brief Introduction --- railway guided power wagon

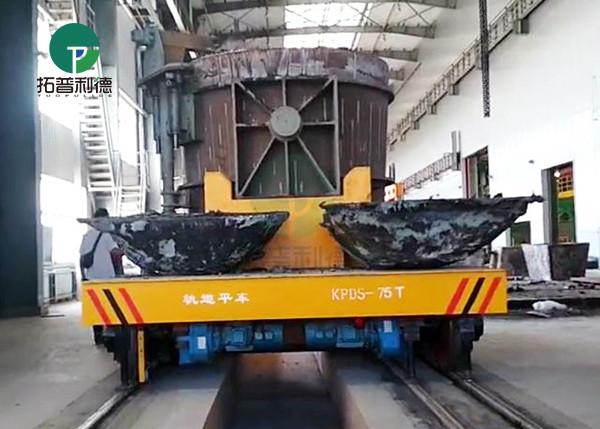

The railway guided power wagon is an electric operated material transfer cart which is powered by battery and running on the rails. Its special is designed for high temperature ladle transport in the steel manufacturing factory.

As the rail ladle transfer carts are equipped with steel wheels and move on steel rails they are suited to very high loading capacities thanks to the very low friction between steel and steel.The capacity load can up to 500 tons.

The batteries are installed in the transfer cart. The batteries supply electricity to the DC motor through the electrical control system. We use this principle to operate the ladle transfer cart, for example, start, stop, go forward and backward, adjust the speed and so on.

It can get rid of the limitation of cables and remote control, which makes the operation more convenient, safe, which can be applied in long distance rail transit system.

Product Details--- railway guided power wagon

Storage Battery	Battery Charger	Electric Control Box
Sound & Light Alarm	Remote Control	Casting Wheel

Product Funcation --- railway guided power wagon​

1. Load-Bearing Transport

Load-bearing transport is the most basic and important function of transfer cart.

2. Turning

This series of rail ladle transfer cart have the function of running on S-shaped, C-shaped, curved rails, etc.

3. Lift

The hydraulic lift system can be installed on the transfer cart to achieve lifting and other functions

4. Side Flip

The transfer cart can realize self-discharging by the hydraulic device

5. Safety Devices

Safety devices can be installed on the transfer cart, for example, proximity switches, dead man stop, alarm systems, buffers to achieve the corresponding safety functions.

6. Others

Our company can research and develop the corresponding non-standard transfer cart to achieve the required functions according to the customers’ requirements.

Working Environment --- railway guided power wagon

1. Environment temperature: -20°C-40°C

2. Environment Humidity: Relative Humidity ≤ 70%

3. Environment PH Degree: Working in a Neutral or Approaching Neutral

4. Environment Electrical Sustainability: 25%

5. Air Cleanliness: Non-corrosive, non-flammable,non-explosive gas

Parameter List --- railway guided power wagon

Application --- railway guided power wagon

The rail ladle transfer carts are mainly applied in assembly line (ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction (bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry (electrolytic cell, retort etc), railway (rail maintenance, rail welding, train tractor).
