Specifications
Brand Name :
Topleader
Model Number :
KPX-30T ladle transfer bogie
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$7000-$12000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
30-40 days after your prepayment
Packaging Details :
The transfer bogie will be packed by the tarp, the parts will be packed by polywood case.
Product name :
Heat-Resisting Large Capacity Molten Steel Ladle Transfer Trolley Car On Rail
Power supply :
Storage battery
Size :
Customized
Load capacity :
1-500T
Running speed :
0-30m/min(adjust)
Application :
Factory ,warehouse and working line
Warranty :
1 year
Color :
Customized
OEM :
Accepted
Description

Heat-Resisting Large Capacity Molten Steel Ladle Transfer Trolley Car On Rail

Description --- Molten Steel Ladle Transfer Trolley Car

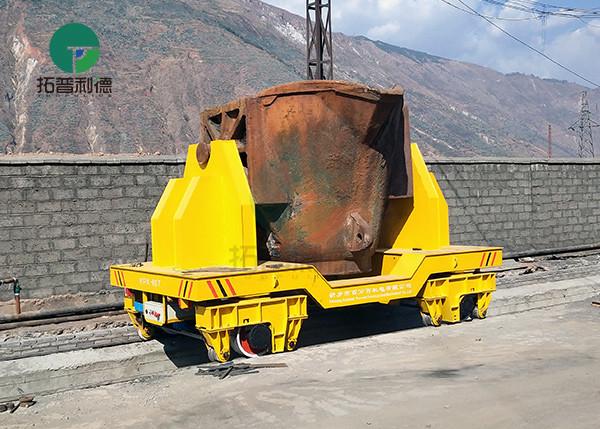

The molten steel ladle transfer trolley car also known as ladle car, ladle transfer trolley, molten steel ladle car, ladle transfer car, etc. It use heat insulating material, and can resist the high -temperature. In order to ensure safety and working frequency, the ladle transfer bogie usually prepared two motors, When one is damaged, the other one can be used to continue the work.
This kind of ladle transfer car can solve problems with high temperature steel ladle, liquid iron ladle transferring in metallurgy industry.
Ladle transfer car is specially designed to transfer the high-temperature ladle. This kind of transfer car has strict requirements on safety and anti-high temperature, so the material, driving system and electrical parts of the bogie should be specially designed.

Heat-Resisting Large Capacity Molten Steel Ladle Transfer Trolley Car On Rail

Working Principle --- Molten Steel Ladle Transfer Trolley Car


This series molten steel ladle transfer car is powered by battery. The battery supply power to the DC motor, which is installed inside of transfer car body. Through the order of start, stop, forward, back, speed governing, etc, electrical control system command the order to DC motor to drive transfer car working.
The power supply also can be customized according as per demands, such as low voltage rail power, cable reel power, busbar power, etc.
Heat-Resisting Large Capacity Molten Steel Ladle Transfer Trolley Car On Rail

Parts Details --- Molten Steel Ladle Transfer Trolley Car

Heat-Resisting Large Capacity Molten Steel Ladle Transfer Trolley Car On Rail Heat-Resisting Large Capacity Molten Steel Ladle Transfer Trolley Car On Rail
Storage Battery Battery Charger
Heat-Resisting Large Capacity Molten Steel Ladle Transfer Trolley Car On Rail Heat-Resisting Large Capacity Molten Steel Ladle Transfer Trolley Car On Rail
Electric Control Box Sound & Light Alarm


Application --- Molten Steel Ladle Transfer Trolley Car

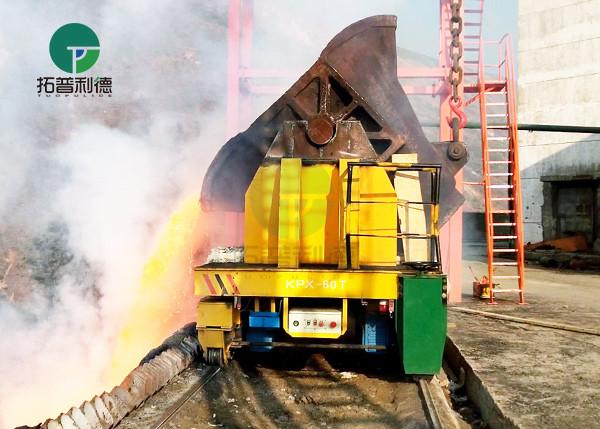

The ladle transfer car is commonly applied in steel industry or metallurgy industry to transfer liquid steel, steel ladle, steel scraps, etc. It can be used within workshop handling or between workshops.
In order to ensure the platform and driving system damaged by high-temperature, there is firebrick laid on the platform of the ladle. Or the driving system is protected by special design.


Heat-Resisting Large Capacity Molten Steel Ladle Transfer Trolley Car On Rail

Technical Parameters --- Molten Steel Ladle Transfer Trolley Car

Model KPX-2T KPX-10T KPX-20T KPX-30T KPX-50T KPX-63T KPX-150T
Rated load (T) 2 10 20 30 50 63 150
Table size length(L) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000 2200 2200 2500 2500 3000
Height(H) 450 500 550 600 650 700 1200
Wheel Base (mm) 1200 2600 2800 3200 4200 4300 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 2000
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ400 Φ500 Φ600 Φ600
Wheel Quantity 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75 75
Running speed (min) 0-25 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 1 1.6 2.2 3.5 5 6.3 15
Running Time When Full Load 4.32 4.8 4 3.5 3.3 3 2.9
Running Distance for one Charge(Km) 6.5 7.2 4.8 4.2 4 3.6 3.2
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 265.2
Reference Weight (t) 2.8 4.2 5.9 6.8 8 10.8 26.8
Recommended Rail Model P15 P18 P24 P38 P43 P50 QU100


Delivery --- Molten Steel Ladle Transfer Trolley Car


Heat-Resisting Large Capacity Molten Steel Ladle Transfer Trolley Car On Rail

Rail Transfer Cart Applied At Site In Customers' Factory


Heat-Resisting Large Capacity Molten Steel Ladle Transfer Trolley Car On Rail

After-Sale Service

  • Our commitment: The load bearing safety factor of the trolley is no less than 120%.
  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
  • 16 hours engineering service and 24 hours internet service for our customers.
  • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.

Heat-Resisting Large Capacity Molten Steel Ladle Transfer Trolley Car On Rail
