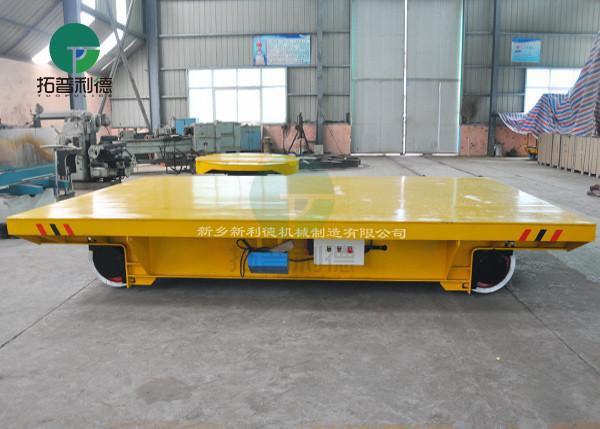

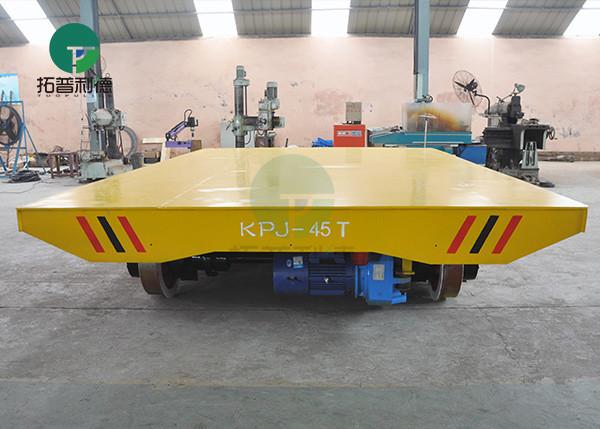

45 Ton Large Table Battery Power Rail Transfer Trolley For Steel Factory Material Transport
45 Ton Large Table Battery Power Rail Transfer Trolley For Steel Factory Material Transport
45 Ton Large Table Battery Power Rail Transfer Trolley For Steel Factory Material Transport
45 Ton Large Table Battery Power Rail Transfer Trolley For Steel Factory Material Transport
45 Ton Large Table Battery Power Rail Transfer Trolley For Steel Factory Material Transport
45 Ton Large Table Battery Power Rail Transfer Trolley For Steel Factory Material Transport
45 Ton Large Table Battery Power Rail Transfer Trolley For Steel Factory Material Transport
45 Ton Large Table Battery Power Rail Transfer Trolley For Steel Factory Material Transport
Specifications
Brand Name :
Topleader
Model Number :
KPX
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$5000-$12000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
30-40 days after receive your prepayment
Packaging Details :
The whole Battery Power Rail Transfer Trolley will be packed by the tarp, the parts will be packed by polywood case.
Product name :
45 Ton Large Table Battery Power Rail Transfer Trolley For Steel Factory Material Transport
Power supply :
Battery Power
Key Words :
Battery Power Rail Transfer Trolley
Load capacity :
1-500T
Running speed :
0-20m/min
Application :
Factory ,warehouse and working line
Warranty :
1 year
Color :
Customized
OEM :
Accepted
Description

45 Ton Large Table Battery Power Rail Transfer Trolley For Steel Factory Material Transport

Brief Introduction --- Battery Power Rail Transfer Trolley

About the 45 Ton Large Table Battery Power Rail Transfer Trolley For Steel Factory Material Transport, the batteries are installed in the rail transfer trolley. The batteries supply electricity to the DC motor through the electrical control system. We use this principle to operate the rail transfer trolleys, for example, start, stop, go forward and backward, adjust the speed and so on. It can get rid of the limitation of cables and remote control, which makes the operation more convenient, safe, which can be applied in long distance rail transit system.

45 Ton Large Table Battery Power Rail Transfer Trolley For Steel Factory Material Transport

Product Details--- Battery Power Rail Transfer Trolley

45 Ton Large Table Battery Power Rail Transfer Trolley For Steel Factory Material Transport 45 Ton Large Table Battery Power Rail Transfer Trolley For Steel Factory Material Transport 45 Ton Large Table Battery Power Rail Transfer Trolley For Steel Factory Material Transport

Storage Battery

Battery Charger

Electric Control Box
45 Ton Large Table Battery Power Rail Transfer Trolley For Steel Factory Material Transport 45 Ton Large Table Battery Power Rail Transfer Trolley For Steel Factory Material Transport 45 Ton Large Table Battery Power Rail Transfer Trolley For Steel Factory Material Transport

Sound & Light Alarm

Remote Control

Casting Wheel

Product Funcation --- Battery Power Rail Transfer Trolley

1. Load-Bearing Transport

Load-bearing transport is the most basic and important function of battery power rail transfer trolley

2. Turning

This series of rail transfer trolley have the function of running on S-shaped, C-shaped, curved rails, etc.

3. Lift

The hydraulic lift system can be installed on the rail transfer trolley to achieve lifting and other functions

4. Side Flip

The transfer trolley can realize self-discharging by the hydraulic device

5. Safety Devices

Safety devices can be installed on the transfer trolley, for example, proximity switches, dead man stop, alarm systems, buffers to achieve the corresponding safety functions.

6. Others

Our company can research and develop the corresponding non-standard transfer trolley to achieve the required functions according to the customers’ requirements.

45 Ton Large Table Battery Power Rail Transfer Trolley For Steel Factory Material Transport

Working Environment --- Battery Power Rail Transfer Trolley

1. Environment temperature: -20°C-40°C

2. Environment Humidity: Relative Humidity ≤ 70%

3. Environment PH Degree: Working in a Neutral or Approaching Neutral

4. Environment Electrical Sustainability: 25%

5. Air Cleanliness: Non-corrosive, non-flammable,non-explosive gas

45 Ton Large Table Battery Power Rail Transfer Trolley For Steel Factory Material Transport

Parameter List --- Battery Power Rail Transfer Trolley

Model

KPX-2T

KPX-5T

KPX-10T

KPX-20T

KPX-30T

KPX-50T

KPX-100T

KPX-150T

Rated load (T)

2

5

10

20

30

50

100

150

Table size(mm)

length

2000

3500

3600

4000

4500

5500

6500

10000

Width

1500

2000

2000

2200

2200

2500

2800

3000

Height

450

500

500

550

600

650

900

1200

Wheel Base (mm)

1200

2500

2600

2800

3200

4200

4900

7000

Rail Inner Gauge (mm)

1200

1435

1435

1435

1435

1435

2000

2000

Wheel Diameter(mm)

Φ280

Φ300

Φ300

Φ350

Φ400

Φ500

Φ600

Φ600

Wheel Quantity(Nos)

4

4

4

4

4

4

4

8

Ground Clearance (mm)

50

50

50

50

50

50

75

75

Motor Power (Kw)

1

1.2

1.6

2.2

3.5

5

10

15

Battery Capacity (Ah)

180

180

160

180

250

330

440

600

Battery Voltage (V)

24

36

48

48

48

48

72

72

Running speed (m/min)

0-30

0-30

0-25

0-25

0-25

0-20

0-20

0-18

Running Time When Full Load(Hours)

4.32

5.4

4.8

4

3.5

3.3

3.2

3.2

Running Distance for One Charge(Km)

6.5

8.1

7.2

4.8

4.2

4

3.8

3.2

Max Wheel Load (KN)

14.4

25.8

42.6

77.7

110.4

174

343.8

265.2

Reference Weight (t)

2.8

3.6

4.2

5.9

6.8

8

14.5

26.8

Recommended Rail Model

P15

P18

P18

P24

P38

P43

QU100

QU100

Application --- Battery Power Rail Transfer Trolley

The battery power rail transfer trolley is mainly applied in assembly line (ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction (bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry (electrolytic cell, retort etc), railway (rail maintenance, rail welding, train tractor).
