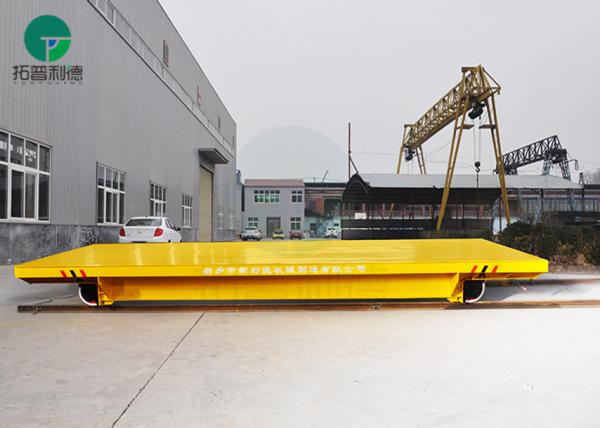

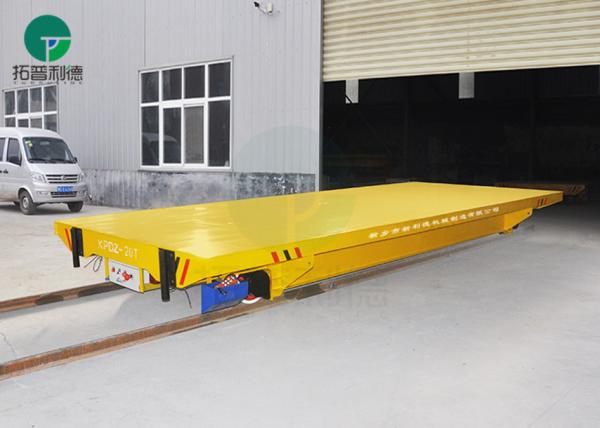

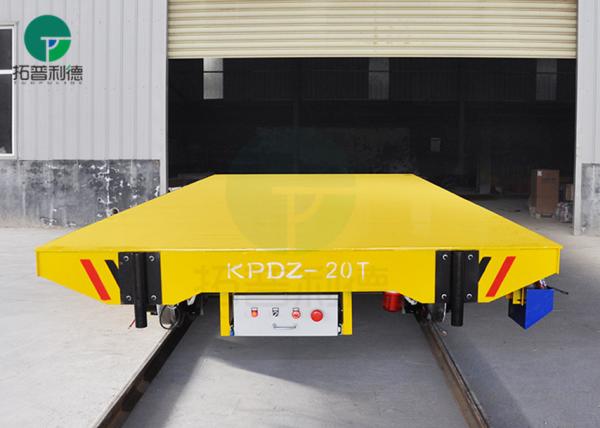

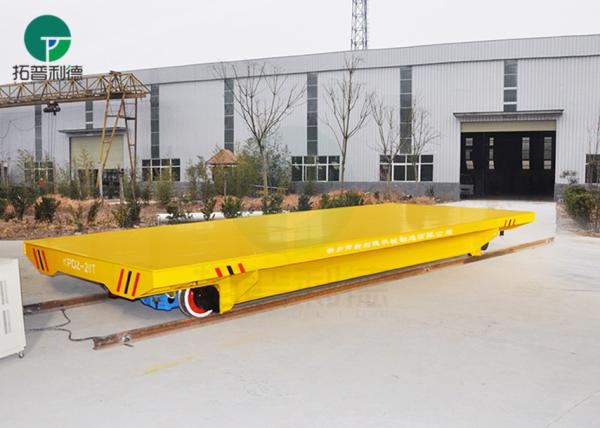

Low Voltage Railway Powered Self Propelled Material Transport Billet Transfer Cart
Low Voltage Railway Powered Self Propelled Material Transport Billet Transfer Cart
Low Voltage Railway Powered Self Propelled Material Transport Billet Transfer Cart
Low Voltage Railway Powered Self Propelled Material Transport Billet Transfer Cart
Low Voltage Railway Powered Self Propelled Material Transport Billet Transfer Cart
Low Voltage Railway Powered Self Propelled Material Transport Billet Transfer Cart
Low Voltage Railway Powered Self Propelled Material Transport Billet Transfer Cart
Low Voltage Railway Powered Self Propelled Material Transport Billet Transfer Cart
Specifications
Brand Name :
Topleader
Model Number :
KPD
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$4000-$10000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
30-40 days after receive your prepayment
Packaging Details :
The whole transfer cart will be packed by the tarp, the parts will be packed by polywood case.
Product name :
Low Voltage Railway Powered Self Propelled Material Transport Billet Transfer Cart
Power supply :
Low Voltage Railway Powered
Size :
Customized
Load capacity :
1-500T
Running speed :
30m/min(adjust)
Application :
Factory,warehouse and working line
Warranty :
1 year
Color :
Customized
OEM :
Accepted
Description

Low Voltage Railway Powered Self Propelled Material Transport Billet Transfer Cart

Brief Introduction --- Billet Transfer Cart

The kinds of material transport billet transfer cart, which is powered by low voltage railways. It makes the AC electricity power is transformed into AC 36v two-phase and are respectively connected to the two rails. Then the wheel conduct the AC 36v on rail into the electrical appliance box at the bottom of the billet transfer cart. And then the AC 36v is transformed into DC 36v to control the DC motor. Use this principle to make the transfer cart start, stop, go forward and backward, adjust the speed and so on.

Low Voltage Railway Powered Self Propelled Material Transport Billet Transfer Cart

Product Features --- Billet Transfer Cart

1. High quality reducer, gears adopt CNC grinding technology, high precision, good contact, high transmission efficiency, high bearing capacity and long service life.

2. High quality motor, with a correspondingly fast, large starting torque, from zero speed to rated speed with rated torque performance.

3. The wheel adopts angular bearing seat for easy installation and adjustment, in order to properly improve the machining accuracy of the relevant parts to improve the accuracy of the transfer cart's installation and manufacturing, to place the wheel deviation, the contact between the rim and the track intensifies the rim wear and increases the frictional resistance and so on.

4. High degree of automation, to achieve unmanned automated production processes.

Low Voltage Railway Powered Self Propelled Material Transport Billet Transfer Cart

Parameter List --- Billet Transfer Cart

Model
 KPD-2T KPD-5T KPD-10T KPD-20T KPD-30T KPD-40T KPD-50T KPD-63T
Rated load (T) 2 5 10 20 30 40 50 63
Table size length(L) 2000 3500 3600 4000 4500 5000 5500 5600
Width(W) 1500 2000 2000 2200 2200 2500 2500 2500
Height(H) 450 450 500 550 600 650 650 750
Wheel Base (mm) 1200 2500 2600 2800 3200 3800 4200 4300
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 1435 1435
Wheel Diameter(mm) Φ270 Φ300 Φ300 Φ350 Φ400 Φ500 Φ500 Φ600
Wheel Quantity(Nos) 4 4 4 4 4 4 4 4
Ground Clearance (mm) 50 50 50 50 50 50 50 75
Running speed (m/min) 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20
Motor Power (Kw) 1 1.2 1.6 2.2 3.5 4 5 6.3
Transformer Power (KVA) 3 5 5 6.8 10 10 10 20
Transformer Quantity (Pcs) 1 1 1 1 1 1 1 1
Running Distance (m) 80 80 80 80 80 60 50 50
Max Wheel Load (KN) 14.4 25.8 42.6 77.7 110.4 142.8 174 221.4
Reference Weight (T) 2.8 3.6 4.2 5.9 6.8 7.6 8 10.8
Recommended Rail Model P15 P18 P18 P24 P38 P43 P43 P50

Low Voltage Railway Powered Self Propelled Material Transport Billet Transfer Cart

Application --- Billet Transfer Cart

This series self propelled coil transfer cart can be widely applied in many fields, such as automobile, steel factory, heavy industry, light industry, machinery, petroleum, metallurgy, mining, chemical industry, engineering, aerospace, coal, nuclear energy, shipyard, water conservancy, etc.

Low Voltage Railway Powered Self Propelled Material Transport Billet Transfer Cart

Production Process --- Billet Transfer Cart

CNC Cutting → Assembly Welding → Welding → Polishing Derusting → Spray Primer → Assembly Wheel → Assembly Motor and Reducer → Spray Paint → Electrical Installation → Electrical Commissioning → Cart Commissioning → Trial Operation
