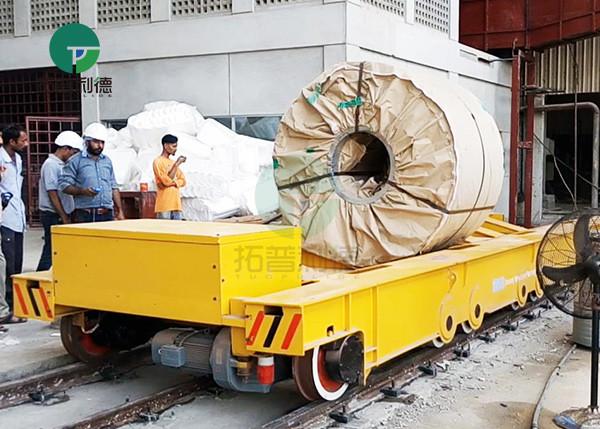

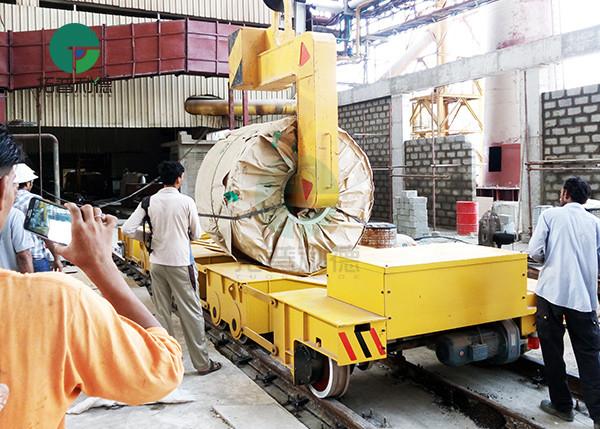

120 Ton V Frame Electrically Operated Steel Coil Railway Transfer Vehicle For Pakistan Steel Plant

Brief Introduction --- Steel Coil Railway Transfer Vehicle

About the electrically operated steel coil railway transfer vehicle is powered by battery, the batteries are installed in the steel coil railway transfer vehicle. The batteries supply electricity to the DC motor through the electrical control system. We use this principle to operate the railway transfer vehicle, for example, start, stop, go forward and backward, adjust the speed and so on.

It can get rid of the limitation of cables and remote control, which makes the operation more convenient, safe, which can be applied in long distance rail transit system.

Product Details--- Steel Coil Railway Transfer Vehicle

Electric Power Control System:It is mainly composed of control switch, voltage converter, warning lamp and conductive transmission device. Its main function is to provide the voltage needed for the operation of railway transfer vehicle and ensure its safety.

Driven Control System:It is mainly composed of motor, reducer, roller belt, brake device and brake controller. Its main function is to drive the railway trasnfer vehicle to slide on the track.

Car Frame:The frame material is steel structure, the outer surface is 50MM thick high strength steel plate, and the frame is welded.

Others:It include wheel frame, shaft coupling, transmission worm gear, pressure testing tool, or alarm lamp, stop device, explosion-proof device, hydraulic lifting platform device, etc.

Product Funcation --- Steel Coil Railway Transfer Vehicle

1. Load-Bearing Transport

Load-bearing transport is the most basic and important function of steel coil railway transfer vehicle.

2. Turning

This series of railway transfer vehicle have the function of running on S-shaped, C-shaped, curved rails, etc.

3. Lift

The hydraulic lift system can be installed on the railway transfer vehicle to achieve lifting and other functions

4. Side Flip

The railway transfer vehicles can realize self-discharging by the hydraulic device

5. Safety Devices

Safety devices can be installed on the railway transfer vehicle, for example, proximity switches, dead man stop, alarm systems, buffers to achieve the corresponding safety functions.

6. Others

Our company can research and develop the corresponding non-standard transfer vehicle to achieve the required functions according to the customers’ requirements.

Working Environment --- Steel Coil Railway Transfer Vehicle

1. Environment temperature: -20°C-40°C

2. Environment Humidity: Relative Humidity ≤ 70%

3. Environment PH Degree: Working in a Neutral or Approaching Neutral

4. Environment Electrical Sustainability: 25%

5. Air Cleanliness: Non-corrosive, non-flammable,non-explosive gas

Parameter List --- Steel Coil Railway Transfer Vehicle

Customized Options --- Steel Coil Railway Transfer Vehicle

Flat decks or fixtures customized for specific loads.

Custom deck configurations including built-in scales and lift/tilt/rotate capabilities.

Track or trackless, non-guided steering. Alternative drive and steering systems including gear reducer axle drives and individually-controlled drive wheels.

Fixed or variable speeds with forward/reverse function.

Drives with acceleration/deceleration capabilities.

Variety of operator control systems including fixed user interface, pendant control on coil cord, and radio-controlled remote operation.

Safety features including horns, flashing lights, e-stops, bumpers and collision avoidance systems.
