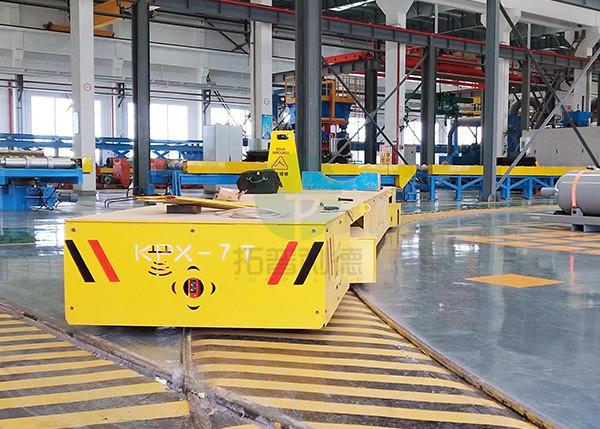

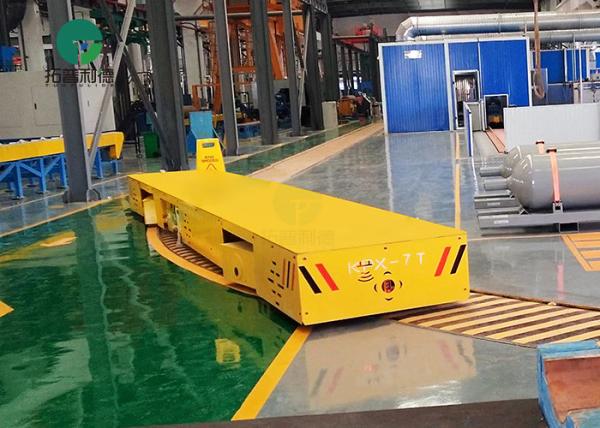

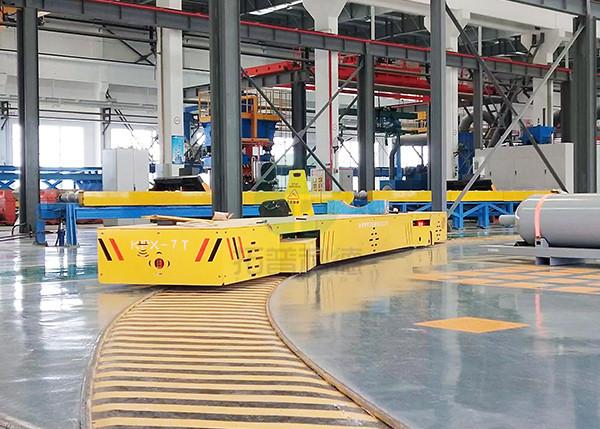

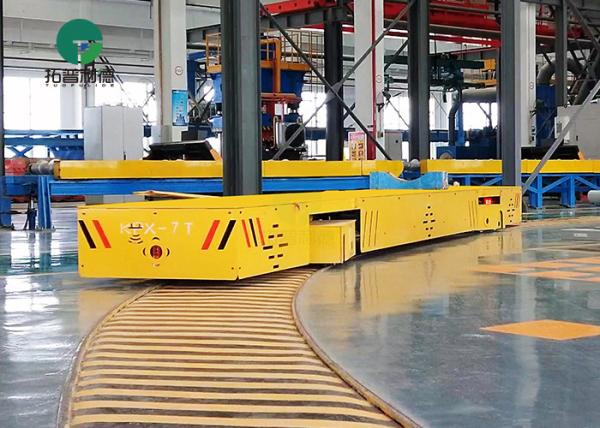

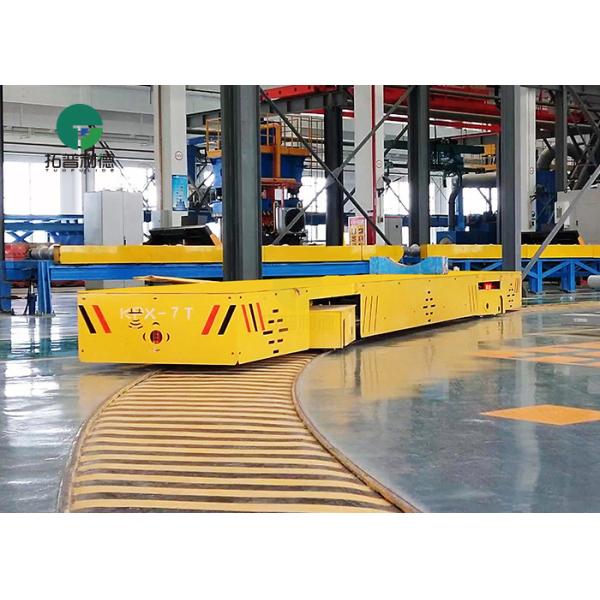

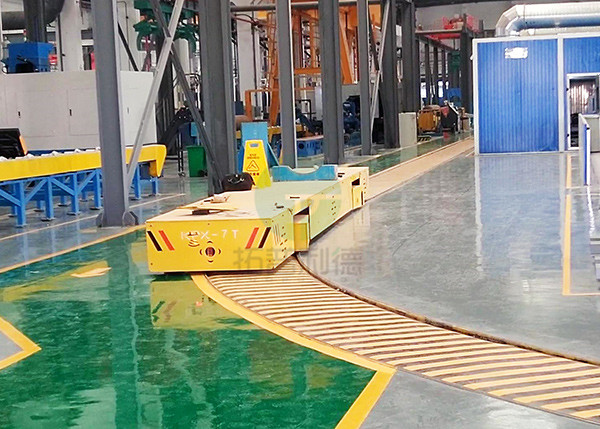

7 Ton Machinery Plant Workpiece Handling S Type Rail Turning Electric Transfer Trolleys

Brief Introduction --- S Type Rail Turning Electric Transfer Trolleys

About the Machinery Plant Workpiece Handling S Type Rail Turning Electric Transfer Trolleys is powered by battery, the batteries are installed in the turning electric transfer trolleys. The batteries supply electricity to the DC motor through the electrical control system. We use this principle to operate the electric transfer trolleys, for example, start, stop, go forward and backward, adjust the speed and so on.

It can get rid of the limitation of cables and remote control, which makes the operation more convenient, safe, which can be applied in long distance rail transit system.

Product Details--- S Type Rail Turning Electric Transfer Trolleys

Storage Battery	Battery Charger	Electric Control Box
Sound & Light Alarm	Remote Control	Casting Wheel

Product Features --- S Type Rail Turning Electric Transfer Trolleys

1. Safety and flexibility

2. Unrestricted operating distance

3. Speed adjustable

4. Low noise

5. Save labor costs

6. Environmental protection

7. Easy operation

8. Easy to repair

9. The requirements for laying the track are not high

10. Strong bearing capacity

Working Environment --- S Type Rail Turning Electric Transfer Trolleys

1. Environment temperature: -20°C-40°C

2. Environment Humidity: Relative Humidity ≤ 70%

3. Environment PH Degree: Working in a Neutral or Approaching Neutral

4. Environment Electrical Sustainability: 25%

5. Air Cleanliness: Non-corrosive, non-flammable,non-explosive gas

Parameter List --- S Type Rail Turning Electric Transfer Trolleys

Application --- S Type Rail Turning Electric Transfer Trolleys

The s type rail turning electric transfer trolleys are mainly applied in assembly line (ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction (bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry (electrolytic cell, retort etc), railway (rail maintenance, rail welding, train tractor).

Operated Tips --- S Type Rail Turning Electric Transfer Trolleys

The electric transfer trolleys can be equipped with two kinds of operating handles and remote control; the length of the handle is generally 3m or 5m, there are four keys and a joystick, the four keys are: start, emergency stop, forward and backward, the joystick controls the steering of the transfer trolley ,

Move the joystick to the left, the trolley to the left, move the rocker to the right, and the car to the right (the direction of the motor is the direction of going forward). if make the car stop, release the forward or back button or press the stop button, if want to start again, turn emergency stop clockwise, press start. The remote control is a six-button control, including start, stop, go forward, backward, left and right turn, when turning left or right, you must press the corresponding direction key at the same time. When you start again, press the start button directly. Now. What’s more, the operating handle and the remote control cannot control the transfer trolley at the same time (the control box has a switcher with operating handle and remote switch). there are a handle-placed box in the car for convenient placement.
