Specifications
Brand Name :
Topleader
Model Number :
KPX-Steel Coil Handling Electric Flat Car
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$2500-$6000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
30-40 days after receive your prepayment
Packaging Details :
The whole Steel Coil Handling Electric Flat Car will be packed by the tarp, the parts will be packed by polywood case.
Product name :
Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame
Power supply :
Battery Powered
Key Words :
Steel Coil Handling Electric Flat Car
Load capacity :
1-500T
Running speed :
0-20m/min
Application :
Factory and warehouse for coil material handling
Warranty :
1 year
Color :
Customized
OEM :
Accepted
Description

Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame

Brief Introduction --- Steel Coil Handling Electric Flat Car

Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame

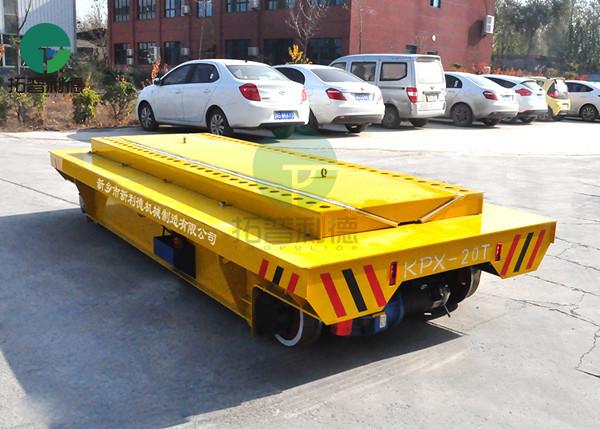

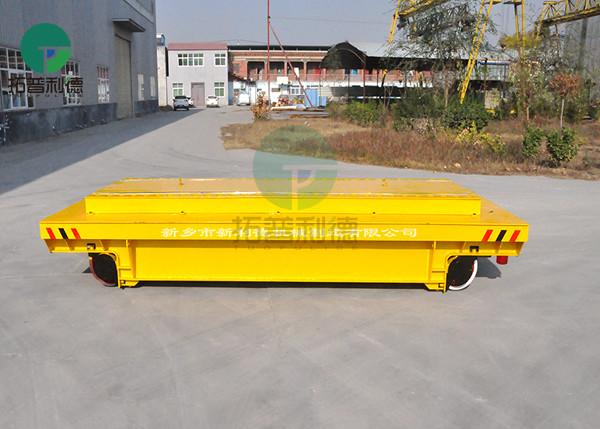

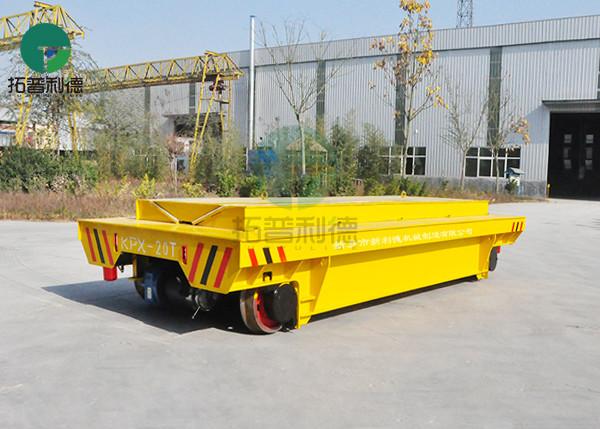

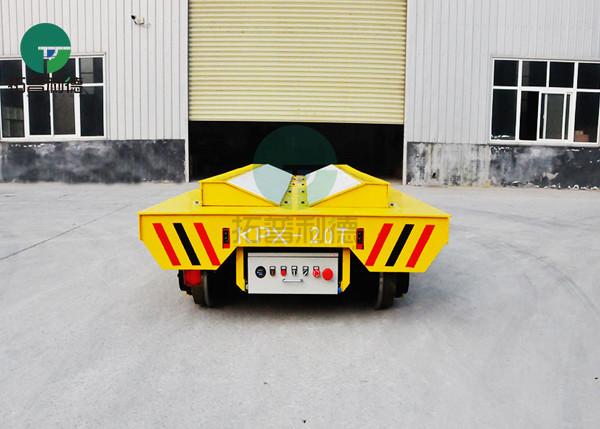

The Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame is a rail-mounted material transport cart suitable for transporting coils and coil materials. Motorized steel coil handling electric flat car has four power modes, the most common of which is the battery as a power source. The steel coilhandling electric flat car has two anti-slip measures. First, the motorized coil flat car is equipped with U-shaped V-shaped device on the table to prevent the material from slipping off the motorized coil handling electric flat car.

Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame

Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame

Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame

Product Details--- Steel Coil Handling Electric Flat Car

Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame

Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame

Maintenance Free Storage Battery

Battery Charger

Rail Cast Wheel

Compared the common one, this kinds battery needn’t be maintained once a regular time. And the life time is longer than the common.Besides, safe, effective, stable, environmental, are its feature.

For battery powered steel coil handling electric flat car, when the battery power is insufficient, to charge the battery. The charger adopts constant current and constant voltage charging + floating charging + balanced charging mode, which does not damage the battery and prolongs the battery life.

The wheel adopts the crane special wheel, the wheel uses ZG55, the whole quenching, the wheel tread and the wheel rim inner hardness hb320-380, the depth 20mm, after the wheel is assembled, the rotation is flexible.It has the features of high strength and long wearing life.

Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame

Custom Options --- Steel Coil Handling Electric Flat Car

Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame

1. Load capacity, table size and rail gauge can be customized.

2. Remote radio control (imported or made in China)

3. Automatic stop when detecting obstacle or person, limit switches (to limit travel)

4. Battery type(free of maintenance battery, lithium battery, explosion-proof battery and anti-high temperature battery)

5. Motor(DC motor with brush and DC motor brushless)

6. Electrical parts can be optional (made in China or imported)

Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame

Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame

Parameter List --- Steel Coil Handling Electric Flat Car

Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame

Model

KPX-5T

KPX-10T

KPX-20T

KPX-30T

KPX-50T

KPX-100T

KPX-150T

Rated load (T)

5

10

20

30

50

100

150

Table size(mm)

length

3500

3600

4000

4500

5500

6500

10000

Width

2000

2000

2200

2200

2500

2800

3000

Height

500

500

550

600

650

900

1200

Wheel Base (mm)

2500

2600

2800

3200

4200

4900

7000

Rail Inner Gauge (mm)

1435

1435

1435

1435

1435

2000

2000

Wheel Diameter(mm)

Φ300

Φ300

Φ350

Φ400

Φ500

Φ600

Φ600

Wheel Quantity(Nos)

4

4

4

4

4

4

8

Ground Clearance (mm)

50

50

50

50

50

75

75

Motor Power (Kw)

1.2

1.6

2.2

3.5

5

10

15

Battery Capacity (Ah)

180

160

180

250

330

440

600

Battery Voltage (V)

36

48

48

48

48

72

72

Running speed (m/min)

0-30

0-25

0-25

0-25

0-20

0-20

0-18

Running Time When Full Load(Hours)

5.4

4.8

4

3.5

3.3

3.2

3.2

Running Distance for One Charge(Km)

8.1

7.2

4.8

4.2

4

3.8

3.2

Max Wheel Load (KN)

25.8

42.6

77.7

110.4

174

343.8

265.2

Reference Weight (t)

3.6

4.2

5.9

6.8

8

14.5

26.8

Recommended Rail Model

P18

P18

P24

P38

P43

QU100

QU100

Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame

Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame

Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame

Application --- Steel Coil Handling Electric Flat Car

Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame

Our steel coil handling electric flat car not only can transport all kinds of coils in steel mill, it is also can be widely applied in Metallurgy, Machinery Fabrication, Auto makers, Heavy Industrial, Light Industrial, Mold Maker, Construction Machinery maker, Shipyard, Port Cargo Yard, Steel Transfer, Mining Transfer, Air and Space as well as Military industries and so on to transfer and handling equipment or material from workshop to workshop or from bay to warehouse.

Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame

Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame

Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame
