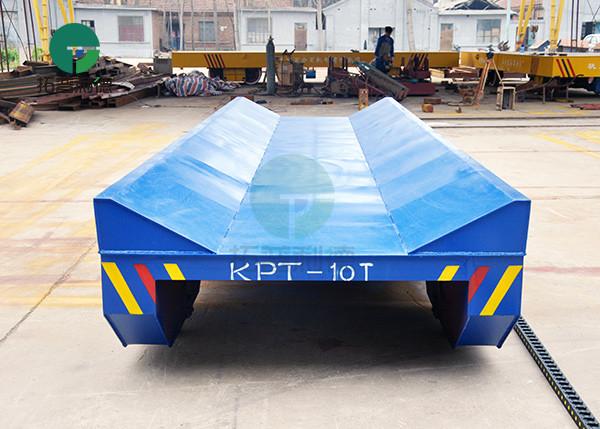

Precast Concrete Industry Plant Motorized Handling Load Arc Rail Transport Wagon
Precast Concrete Industry Plant Motorized Handling Load Arc Rail Transport Wagon
Precast Concrete Industry Plant Motorized Handling Load Arc Rail Transport Wagon
Precast Concrete Industry Plant Motorized Handling Load Arc Rail Transport Wagon
Precast Concrete Industry Plant Motorized Handling Load Arc Rail Transport Wagon
Precast Concrete Industry Plant Motorized Handling Load Arc Rail Transport Wagon
Precast Concrete Industry Plant Motorized Handling Load Arc Rail Transport Wagon
Precast Concrete Industry Plant Motorized Handling Load Arc Rail Transport Wagon
Specifications
Brand Name :
Topleader
Model Number :
KPT
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$5000-$12000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
30-40 days after receive your prepayment
Packaging Details :
The whole arc rail transport wagon will be packed by the tarp, the parts will be packed by polywood case.
Product name :
Precast Concrete IndustryPlant Motorized Handling Load Arc Rail Transport Wagon
Power supply :
Mobile cable powered
Material :
steel
Load capacity :
1-300T
Running speed :
20m/min
Application :
Factory ,warehouse and working line
Warranty :
1 year
Color :
customized
OEM :
Accepted
Description

Precast Concrete Industry Plant Motorized Handling Load Arc Rail Transport Wagon

Brief Introduction --- Arc Rail Transport Wagon

KPT series Precast Concrete Industry Plant Motorized Handling Load Arc Rail Transport Wagon is powered by mobile cable. It conducts AC 380V directly into the electrical control system of the arc rail transport wagon to let it start, stops, goes forward and backward and so on. The transport wagon is powered by dragging cable winch is laid on the ground. The cable line is placed between the two rails. The operation system is low voltage 36V power.

Precast Concrete Industry Plant Motorized Handling Load Arc Rail Transport Wagon

Product Details--- Arc Rail Transport Wagon

Precast Concrete Industry Plant Motorized Handling Load Arc Rail Transport Wagon Precast Concrete Industry Plant Motorized Handling Load Arc Rail Transport Wagon Precast Concrete Industry Plant Motorized Handling Load Arc Rail Transport Wagon

Steel Welding Frame

Cast Steel Wheel

Mobile Cable
Precast Concrete Industry Plant Motorized Handling Load Arc Rail Transport Wagon Precast Concrete Industry Plant Motorized Handling Load Arc Rail Transport Wagon Precast Concrete Industry Plant Motorized Handling Load Arc Rail Transport Wagon

Reducer

Handle & Remote Control

Sound & Light Alarm

Product Features --- Arc Rail Transport Wagon

1.Maintenance-free, long service life, as long as it can be moved, steel can be used without rust；

2.Suitable for short distance transportation；

3.High efficiency, large load capacity, can transport a lot of materials at a time；

4.One person is enough to save costs and save manpower；

5.Simple operation, with remote control button and joystick operation；

6.There are people stop and danger warning lights on the transport wagon, safe operation.

Precast Concrete Industry Plant Motorized Handling Load Arc Rail Transport Wagon

Advantages --- Arc Rail Transport wWagon

Safe and environment friendly

Big starting power

Small impact to the gear reducer

No restriction of the running distance

Can running on s-shape rail, arc-shape rails

Has no limit on working distance

Anti-explosion, anti-high temperature

Long lifetime

Precast Concrete Industry Plant Motorized Handling Load Arc Rail Transport Wagon

Parameter List --- Arc Rail Transport Wagon

Model

KPT-2T

KPT-5T

KPT-10T

KPT-20T

KPT-30T

KPT-50T

KPT-100T

KPT-150T

Rated load (T)

2

5

10

20

30

50

100

150

Table size

length(L)

2000

3500

3600

4000

4500

5500

6500

10000

Width(W)

1500

2000

2000

2200

2200

2500

2800

3000

Height(H)

450

450

500

550

600

650

850

1200

Wheel Base (mm)

1200

2500

2600

2800

3200

4200

4900

7000

Rail Inner Gauge (mm)

1200

1435

1435

1435

1435

1435

2000

2000

Wheel Diameter(mm)

Φ270

Φ300

Φ300

Φ350

Φ400

Φ500

Φ600

Φ600

Wheel Quantity(Nos)

4

4

4

4

4

4

4

8

Ground Clearance (mm)

50

50

50

50

50

50

75

75

Running speed (m/min)

0-30

0-30

0-25

0-25

0-25

0-20

0-20

0-18

Motor Power (Kw)

0.8

1.5

1.5

2.5

4

5.5

11

15

Max Wheel Load (KN)

14.4

25.8

42.6

77.7

110.4

174

343.8

265.2

Reference Weight (t)

2.5

3.5

4

5.6

6.5

7.8

14.1

26.2

Recommended Rail Model

P15

P18

P18

P24

P38

P43

QU100

QU100

Application --- Arc Rail Transport Wagon

Arc rail transport wagon can be used for short-distance transportation. They can be transported indoors or outdoors. They are mainly used in large steel plants, accessory factories, shipyards, and mold factories.
