50-100 Ton Interbay High Temperature Resistance Metal Ladle Railway Cart Hot Slab Transfer Truck
50-100 Ton Interbay High Temperature Resistance Metal Ladle Railway Cart Hot Slab Transfer Truck
50-100 Ton Interbay High Temperature Resistance Metal Ladle Railway Cart Hot Slab Transfer Truck
50-100 Ton Interbay High Temperature Resistance Metal Ladle Railway Cart Hot Slab Transfer Truck
50-100 Ton Interbay High Temperature Resistance Metal Ladle Railway Cart Hot Slab Transfer Truck
50-100 Ton Interbay High Temperature Resistance Metal Ladle Railway Cart Hot Slab Transfer Truck
50-100 Ton Interbay High Temperature Resistance Metal Ladle Railway Cart Hot Slab Transfer Truck
50-100 Ton Interbay High Temperature Resistance Metal Ladle Railway Cart Hot Slab Transfer Truck
Specifications
Brand Name :
Topleader
Model Number :
kpx
Certification :
CE, ISO9001
Place of Origin :
Xinxiang,China
MOQ :
1 set
Price :
US$15000/ SET
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600set per year
Delivery Time :
45 Working days
Packaging Details :
The hot slab transfer truck is packed by tarp and the accessories are packed by wooden case.
product name :
50-100 Ton Interbay High Temperature Resistance Metal Ladle Railway Cart Hot Slab Transfer Truck
Load capacity :
1-300ton
Power :
battery power
Table size :
3600*2000*500 or custom
Working time :
4-5 hours with hot slab transfer truck
Voltage :
72v
Application :
ladle, slag, scrap,molten steel handling
Warranty :
12 months
Service :
OEM CUSTOMIZED
Description

50-100 Ton Interbay High Temperature Resistance Metal Ladle Railway Cart Hot Slab Transfer Truck

Product Brief - Hot Slab Transfer Truck

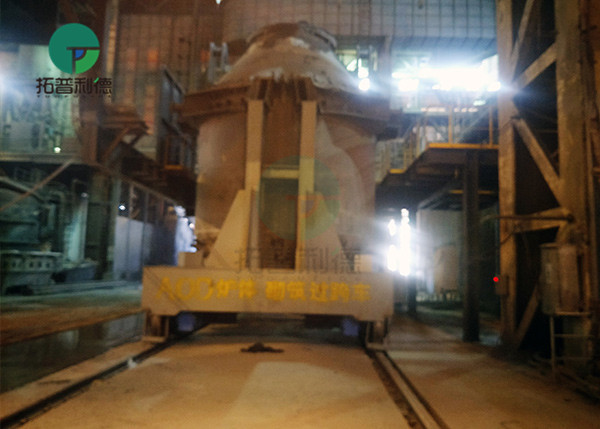

50-100 Ton Interbay High Temperature Resistance Metal Ladle Railway Cart Hot Slab Transfer Truck is powered by the battery is used to handle the slag, scrap, molten steel, ladle from one shop to another matching the crane. It can run on straight rail, curved rails,or rail turntable. Custom design and convenient operation get more client likes.

50-100 Ton Interbay High Temperature Resistance Metal Ladle Railway Cart Hot Slab Transfer Truck

Features - Hot Slab Transfer Truck

50-100 Ton Interbay High Temperature Resistance Metal Ladle Railway Cart Hot Slab Transfer Truck 50-100 Ton Interbay High Temperature Resistance Metal Ladle Railway Cart Hot Slab Transfer Truck 50-100 Ton Interbay High Temperature Resistance Metal Ladle Railway Cart Hot Slab Transfer Truck

The running distance is unlimited.

Simple structure, easy in installation and maintain.

The high quality hot slab transfer truck can run on the C-form track or S-form track.

Safety, flexibility, high using frequency, long using time, long service life.

50-100 Ton Interbay High Temperature Resistance Metal Ladle Railway Cart Hot Slab Transfer Truck

Technical Parameter - Hot Slab Transfer Truck

50-100 Ton Interbay High Temperature Resistance Metal Ladle Railway Cart Hot Slab Transfer Truck 50-100 Ton Interbay High Temperature Resistance Metal Ladle Railway Cart Hot Slab Transfer Truck

Model

KPX-80T

Rated Load(t)

80T

Table Size(mm)

6000*2600*800

Wheel Base(mm)

4700

Rail Gauge(mm)

1800

Wheel Diameter(mm)

Ф600

Wheel Quantity

4

Ground Clearance(mm)

75

Running Speed(m/min)

0-20

Motor Power

8

Battery Capacity(Ah)

400

Battery Voltage(V)

72

Running Time When Full Load

3.6

Running Distance for One Charge(Km)

4.3

Max Wheel Load(KN)

278.4

Reference Weight(t)

12.8

Recommended Rail Model

P50

Application - Hot Slab Transfer Truck

The 50-100 Ton Interbay High Temperature Resistance Metal Ladle Railway Cart Hot Slab Transfer Truck not only can transport all kinds of ladle in steel mill, it is also can be widely applied in ship industries, petroleum industries, painting industries, precast concrete factories, quarry plants, transformer plants, turbine plants, paper making plants, coking plants, boiler plants, power station, textile plants, cement factories, machinery factories, construction sites, production line, workshop, warehouse and other fields for materials, workpieces, machines transport from one bay to another

50-100 Ton Interbay High Temperature Resistance Metal Ladle Railway Cart Hot Slab Transfer Truck

Client Visit

50-100 Ton Interbay High Temperature Resistance Metal Ladle Railway Cart Hot Slab Transfer Truck

50-100 Ton Interbay High Temperature Resistance Metal Ladle Railway Cart Hot Slab Transfer Truck 50-100 Ton Interbay High Temperature Resistance Metal Ladle Railway Cart Hot Slab Transfer Truck 50-100 Ton Interbay High Temperature Resistance Metal Ladle Railway Cart Hot Slab Transfer Truck 50-100 Ton Interbay High Temperature Resistance Metal Ladle Railway Cart Hot Slab Transfer Truck
