Specifications
Brand Name :
Topleader
Model Number :
KPX
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$7000-$12000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
30-40 days after your prepayment
Packaging Details :
The whole automatic guided wagon will be packed by the tarp, the parts will be packed by polywood case.
Product name :
100 Ton Precast Concrete Workshop Use Industrail Interbay Rail Automatic Guided Wagon
Power supply :
Low Voltage Electricity
Material :
steel
Load capacity :
1-300T
Running speed :
0-20m/min
Application :
Factory ,warehouse and working line
Warranty :
1 year
Color :
customized
OEM :
Accepted
Description

100 Ton Precast Concrete Workshop Use Industrail Interbay Rail Automatic Guided Wagon

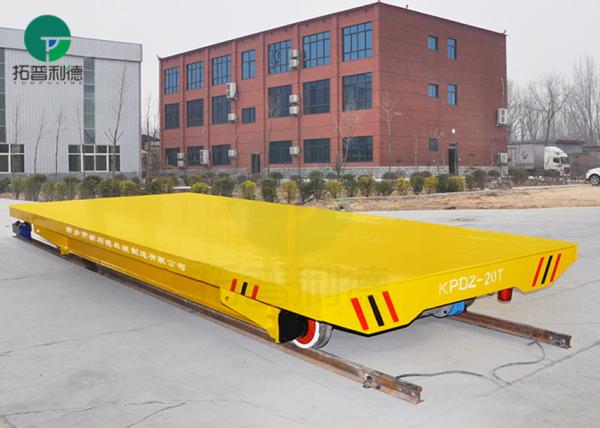

Automatic guided wagon Introduce

KPDZ series automatic guided wagon are powered by the low voltage electricity from the railways. The power source AC 380V is transformed into AC 36V two-phase and are respectively connected to the two rails. Then the automatic guided wagon wheels conduct the AC36V on rail into the electrical appliance box at the bottom of the carts. And then the AC 36V is transformed into DC 36V and then control the DC and adjust the speed and so on. The rated load can not be more than 50T.. When running distance is more than 70m, you need to increase the transformers to make up the voltage which has been lowered

100 Ton Precast Concrete Workshop Use Industrail Interbay Rail Automatic Guided Wagon

.

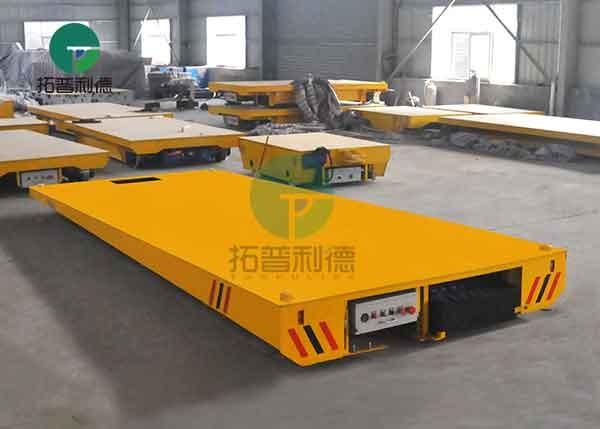

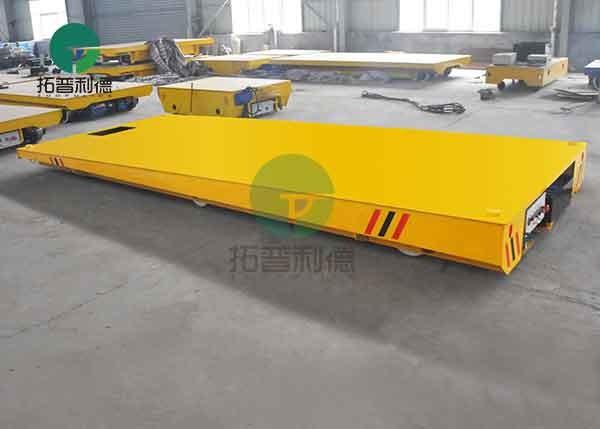

Automatic guided wagon Details

100 Ton Precast Concrete Workshop Use Industrail Interbay Rail Automatic Guided Wagon

The Parameter of Automatic guided wagon

Model

KPD-2T

KPD-10T

KPD-20T

KPD-30T

KPD-50T

KPD63T

KPD-150T

Rated load (T)

2

10

20

30

50

63

150

Table size

length(L)

2000

3600

4000

4500

5500

5600

10000

Width(W)

1500

2000

2200

2200

2500

2500

3000

Height(H)

450

500

550

600

650

700

1200

Wheel Base (mm)

1200

2600

2800

3200

4200

4300

7000

Rail Inner Gauge (mm)

1200

1435

1435

1435

1435

1435

2000

Wheel Diameter(mm)

Φ270

Φ300

Φ350

Φ400

Φ500

Φ600

Φ600

Wheel Quantity

4

4

4

4

4

4

8

Ground Clearance (mm)

50

50

50

50

50

75

75

Running speed (min)

0-25

0-25

0-20

0-20

0-20

0-20

0-18

Motor Power (Kw)

1

1.6

2.2

3.5

5

6.3

15

Battery Capacity(Ah)

180

160

180

250

330

400

600

Battery Voltage(V)

24

48

48

48

48

48

72

Running Time When Full Load

4.32

4.8

4

3.5

3.3

3

2.9

Running Distance for one Charge(Km)

6.5

7.2

4.8

4.2

4

3.6

3.2

Max Wheel Load (KN)

14.4

42.6

77.7

110.4

174

221.4

265.2

Reference Weight (t)

2.8

4.2

5.9

6.8

8

10.8

26.8

Recommended Rail Model

P15

P18

P24

P38

P43

P50

QU100

Automatic guided wagon Application

It mainly use in wheel manufacturing, paper industry, ceramic workshop, metallurgical heavy industry, billet transfer workshop, coal electromechanical industry, burn-free brick transfer industry, etc

100 Ton Precast Concrete Workshop Use Industrail Interbay Rail Automatic Guided Wagon

Customer Visit

100 Ton Precast Concrete Workshop Use Industrail Interbay Rail Automatic Guided Wagon

Packaging

100 Ton Precast Concrete Workshop Use Industrail Interbay Rail Automatic Guided Wagon

Our After-Sale Service:

  • Our commitment: The load bearing safety factor of the trolley is no less than 120%.

  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.

  • 16 hours engineering service and 24 hours internet service for our customers.

  • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.

  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
