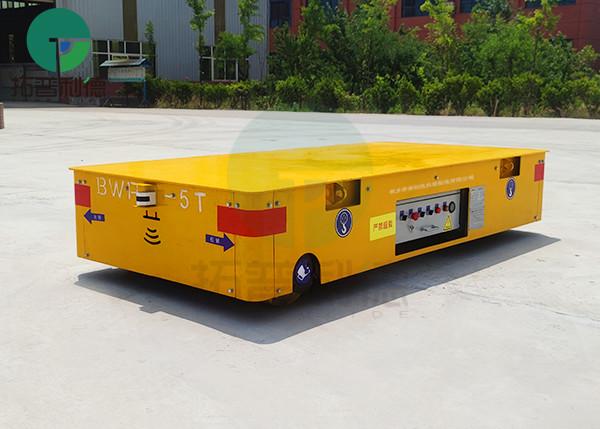

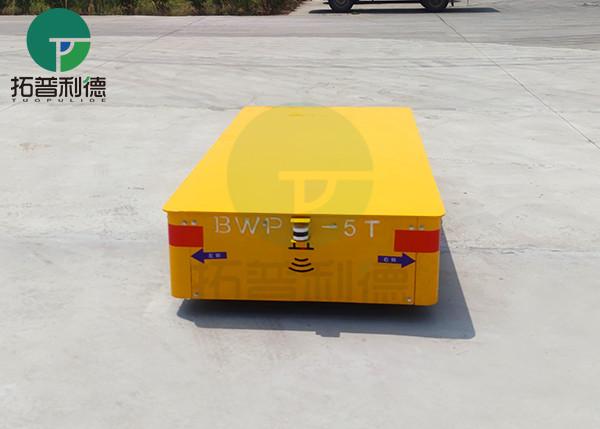

Workshop Apply 30 Tons Trackless Motorized Steerable Transfer Car
Workshop Apply 30 Tons Trackless Motorized Steerable Transfer Car
Workshop Apply 30 Tons Trackless Motorized Steerable Transfer Car
Workshop Apply 30 Tons Trackless Motorized Steerable Transfer Car
Workshop Apply 30 Tons Trackless Motorized Steerable Transfer Car
Workshop Apply 30 Tons Trackless Motorized Steerable Transfer Car
Workshop Apply 30 Tons Trackless Motorized Steerable Transfer Car
Workshop Apply 30 Tons Trackless Motorized Steerable Transfer Car
Workshop Apply 30 Tons Trackless Motorized Steerable Transfer Car
Workshop Apply 30 Tons Trackless Motorized Steerable Transfer Car
Specifications
Brand Name :
Topleader
Model Number :
BWP
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$3000-$12000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
30-40 days after receive your prepayment
Packaging Details :
The whole Material Handling Transfer Cart will be packed by the tarp, the parts will be packed by polywood case.
Product name :
Workshop Apply 30 Tons Trackless Motorized Steerable Transfer Car
Power supply :
Battery power
Key Words :
steerable trackless transfer cart
Load capacity :
1-500 ton
Running speed :
0-20m/min
Application :
Factory ,warehouse and working line
Warranty :
1 Year
Color :
customized
Size :
customized
Description

Workshop Apply 30 Tons Trackless Motorized Steerable Transfer Car

BWP workshop apply 30 tons trackless motorized steerable transfer car's motor of the car is divided into ordinary lifting motor and explosion-proof motor according to the working environment. Due to its low starting power, high starting rate, strong overload capacity and durability, it is suitable for long-term use. The electrical components are composed of control box, controller assembly, electrical accessories, etc. Main combined components, both ends are equipped with alarm device and anti-collision device, emergency stop button, electric flat plate parking brake to deal with emergency situations, press the handle start button, the contactor enters the suction state, after use, run to the storage position, cut off the power for 30 seconds check the power supply to see if there is a power outage.

Workshop Apply 30 Tons Trackless Motorized Steerable Transfer Car

Parts Details

Workshop Apply 30 Tons Trackless Motorized Steerable Transfer Car

The control system consists of control circuit, remote control device, safety protection system, etc.

The control system can realize the following functions:

1) Soft start, smooth running, soft stop and emergency stop of the motor are realized through the driver. Make the operation of the platform truck run smoothly and handle emergency braking.

2) The driver adopts imported electronic control assembly, which has functions such as short-circuit protection and motor overload and overload protection.

3) The flat car can automatically decelerate when passing the turning section to ensure safety, and can automatically accelerate when passing straight to improve efficiency.

4) The flat car can automatically increase the output torque of the motor when passing through the climbing section, and can automatically reduce the power when passing through the downhill and straight sections; it avoids the situation of large horse-drawn trolleys, and greatly improves on the premise of meeting the normal use. battery life.

5) The electrical components of the flat car adopt Siemens, Schneider, Omron and other brands to improve product stability.

Application

Workshop Apply 30 Tons Trackless Motorized Steerable Transfer Car

Workshop Apply 30 Tons Trackless Motorized Steerable Transfer CarWorkshop Apply 30 Tons Trackless Motorized Steerable Transfer Car

Shipping

Workshop Apply 30 Tons Trackless Motorized Steerable Transfer Car

Parameter List

Model
 BWP-2T BWP-10T BWP-20T BWP-30T BWP-50T BWP-100T
Rated load (T) 2 10 20 30 50 100
Table size length(L) 2000 2300 2400 3500 5500 6600
Width(W) 1500 2000 2200 2200 2600 3000
Height(H) 450 500 600 700 800 1200
Wheel Base (mm) 1080 1650 2800 1650 2000 2000
Axle Base (mm) 1380 1850 1435 2700 2850 4000
Wheel Diameter(mm) Φ250 Φ400 Φ350 Φ450 Φ600 Φ600
Wheel Quantity(Nos) 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75
Running speed (m/min) 0-25 0-25 0-20 0-20 0-20 0-18
Motor Power (Kw) 2*1.2 2*2.2 2*4.5 2*5.5 2*7.5 40
Battery Capacity(Ah) 250 250 400 450 500 1000
Battery Voltage(V) 24 48 48 48 72 72
Running Time When Full Load 2.5 2.8 2.2 2 2.5 1.9
Running Distance for one Charge(Km) 3 3.4 2.7 2.4 3 2.3
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 190
Reference Weight (t) 2.3 4.2 5.9 6.8 8 26.8
About Us
Workshop Apply 30 Tons Trackless Motorized Steerable Transfer Car
Workshop Apply 30 Tons Trackless Motorized Steerable Transfer Car
Workshop Apply 30 Tons Trackless Motorized Steerable Transfer Car
Workshop Apply 30 Tons Trackless Motorized Steerable Transfer Car
