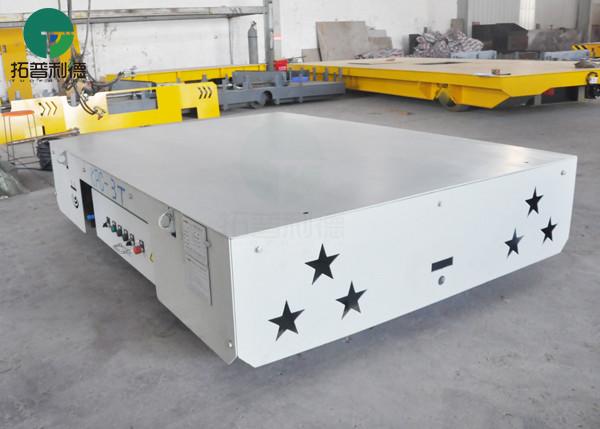

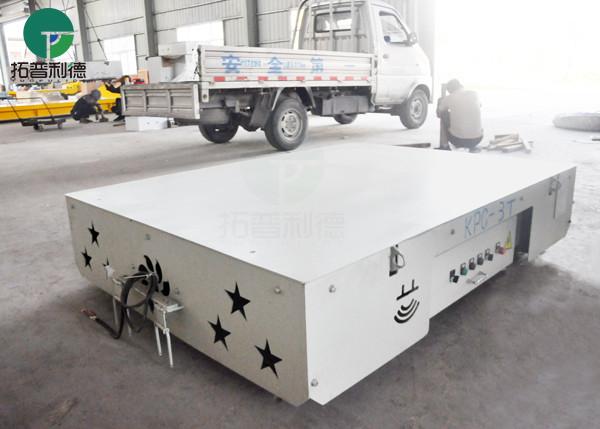

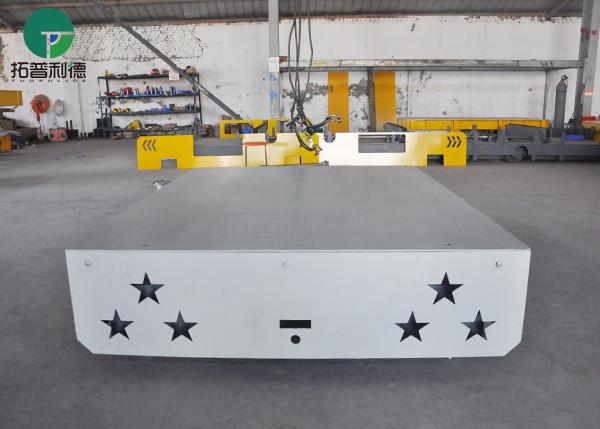

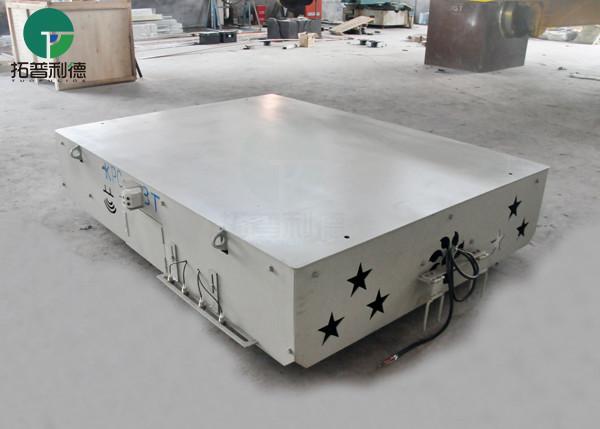

3 Tons Capacity Customized Sliding Line Power Motorized Rail Transfer Cart
3 Tons Capacity Customized Sliding Line Power Motorized Rail Transfer Cart
3 Tons Capacity Customized Sliding Line Power Motorized Rail Transfer Cart
3 Tons Capacity Customized Sliding Line Power Motorized Rail Transfer Cart
3 Tons Capacity Customized Sliding Line Power Motorized Rail Transfer Cart
3 Tons Capacity Customized Sliding Line Power Motorized Rail Transfer Cart
3 Tons Capacity Customized Sliding Line Power Motorized Rail Transfer Cart
3 Tons Capacity Customized Sliding Line Power Motorized Rail Transfer Cart
3 Tons Capacity Customized Sliding Line Power Motorized Rail Transfer Cart
3 Tons Capacity Customized Sliding Line Power Motorized Rail Transfer Cart
Specifications
Brand Name :
Topleader
Model Number :
KPC
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$7000-$12000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
30-40 days after your prepayment
Packaging Details :
The whole Electrical Industrial Material Transfer Trolley will be packed by the tarp, the parts will be packed by polywood case.
Product name :
10 Ton Busbar Powered Bogie Heavy Duty Electrical Industrial Material Transfer Trolley For Sale
Power supply :
Storage battery
Material :
steel
Load capacity :
1-300T
Running speed :
0-20m/min
Application :
Factory ,warehouse and working line
Warranty :
1 year
Color :
customized
OEM :
Accepted
Description

3 Tons Capacity Customized Sliding Line Power Motorized Rail Transfer Cart

Brief Introduction of Sliding Line Power Motorized Rail Transfer Cart

KPC series electric rail transfer cart is an electric transfer cart powered by safety sliding contact line. The 380V AC power supply is supplied to the rail transfer cart through the safety sliding wire, and through the sliding knife on the rail transfer cart, the 380V AC power is continuously introduced into the electrical control system from the safety sliding wire to supply power to the rail transfer cart, so as to realize the start, stop and forward of this series of carts,and back and forth and other actions. The safety sliding contact line can be installed in the middle of the rail or outside the rail, or it can be installed in the trench, on the top of the workshop. Other auxiliary devices such as positioning devices, clamping devices, lifting platforms, etc. can be installed on the rail transfer cart to meet different usage requirements and fully automated requirements. This series of rail transfer carts can be used in high temperature environment and high frequency occasions, and its running distance is not limited.

3 Tons Capacity Customized Sliding Line Power Motorized Rail Transfer Cart

Working Principle of Sliding Line Power Motorized Rail Transfer Cart

The working principle of the sliding line power motorized rail transfer cart is that the safe sliding wire is set in a channel ditched beside the rail, and also can be set on the ground along the wall. It contacts AC 380V sliding wire directly into the AC electrical control system of the transfer cart to let it start, stop, go forward and backward and so on. The cart gets power from the slider of the safe sliding line which is moved by the cart's running.

3 Tons Capacity Customized Sliding Line Power Motorized Rail Transfer Cart

Advantages of Sliding Line Power Motorized Rail Transfer Cart

  • Anti-explosion and Anti-high temperature;

  • The sliding line power motorized rail transfer cart can apply to various occasions;

  • Simple structure, low cost;

  • The busbar power steel pipe handle cart for steel and iron factory has no strict requirement for the construction of the railway;

  • No limit of running and working time;

  • Safe and convenient operation for there is no wire outside the cart;

  • Adjustable speed;

  • The powered bogie can running on the straight, “s” or arc-shaped railways rails;

  • The hydraulic lifting device can be installed on the steel pipe handle cart for powered cart.

3 Tons Capacity Customized Sliding Line Power Motorized Rail Transfer Cart

Application of Sliding Line Power Motorized Rail Transfer Cart

As the professional manufacturer of sliding line power motorized rail transfer cart,our busbar powered electrical industrial material transfer trolley is suitable for various industries, steel mill, handling grain, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc. Paper roll plant: transfer paper coil, Painting shops, transfer work-piece into the painting room, Sand blasting room Other industries: shipbuilding, quarries, warehouses and multi-bay workshops, etc. agricultural machinery electric cart is composed of Car frame, wheel, sliding wire,gear reducer, motor,electrical control,etc. This series material transfer trolley for material handling is suitable conditions of short running distance( ≤50m ), high using frequency, low height and assemble line works.

3 Tons Capacity Customized Sliding Line Power Motorized Rail Transfer Cart

Parameters of Sliding Line Power Motorized Rail Transfer Cart

Model KPC-2T KPC-10T KPC-20T KPC-30T KPC-50T KPC-63T KPC-100T KPC-150T
Rated load (T) 2 10 20 30 50 63 100 150
Table size length(L) 2000 3600 4000 4500 4000 5600 6500 10000
Width(W) 1500 2000 2200 2200 2500 2500 2800 3000
Height(H) 450 500 550 600 650 750 850 1200
Wheel Base (mm) 1200 2600 3200 2800 4200 4300 4900 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 2000 2000
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ350 Φ500 Φ600 Φ600 Φ600
Wheel Quantity 4 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75 75 75
Running speed (min) 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 0.8 1.5 2.5 4 5.5 7.5 11 15
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 343.8 265.2
Reference Weight (t) 2.3 3.8 3.8 6.3 7.6 10.3 13.9 26
Recommended Rail Model P15 P18 P24 P38 P43 P50 QU100 QU100

Packing & Delivery of Sliding Line Power Motorized Rail Transfer Cart

3 Tons Capacity Customized Sliding Line Power Motorized Rail Transfer Cart
