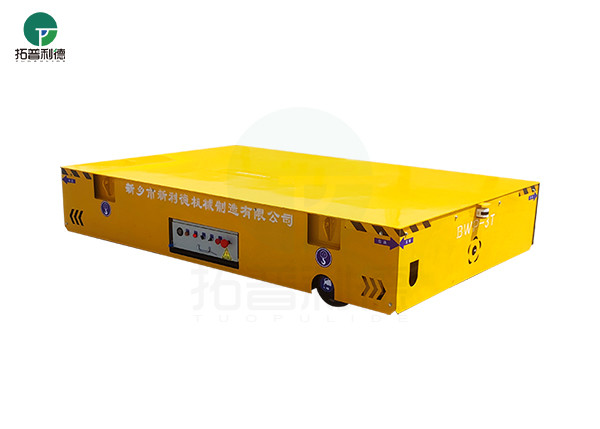

Good Price Machinery Plant Apply Trackless Electric Transfer Cart 3t
Good Price Machinery Plant Apply Trackless Electric Transfer Cart 3t
Good Price Machinery Plant Apply Trackless Electric Transfer Cart 3t
Good Price Machinery Plant Apply Trackless Electric Transfer Cart 3t
Good Price Machinery Plant Apply Trackless Electric Transfer Cart 3t
Good Price Machinery Plant Apply Trackless Electric Transfer Cart 3t
Good Price Machinery Plant Apply Trackless Electric Transfer Cart 3t
Good Price Machinery Plant Apply Trackless Electric Transfer Cart 3t
Specifications
Brand Name :
Topleader
Model Number :
BWP
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$7000-$12000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
50 days after your prepayment
Packaging Details :
The whole transfer cart will be packed by the tarp, the parts will be packed by polywood case.
Product name :
Good Price Machinery Plant Apply Trackless Electric Transfer Cart 3T
Power supply :
Storage battery
Material :
steel
Load capacity :
1-100T
Running speed :
0-20m/min
Application :
Factory ,warehouse and working line
Warranty :
1 year
Color :
customized
OEM :
Accepted
Description

Good Price Machinery Plant Apply Trackless Electric Transfer Cart 3T

Product Introduction

The good price machinery plant apply trackless electric transfer cart is guided in the direction of the steering wheel and bears the total weight together with the load-bearing wheel. The battery inside the cart body provides energy, and the electric control box provides power to the motor, so that the reducer amplifies the torque to provide power to the trolley, driving the the cart runs and stops.


Good Price Machinery Plant Apply Trackless Electric Transfer Cart 3t

Parts Details

Good Price Machinery Plant Apply Trackless Electric Transfer Cart 3t

Good Price Machinery Plant Apply Trackless Electric Transfer Cart 3t



Application


Good Price Machinery Plant Apply Trackless Electric Transfer Cart 3t


Technical Parameters

Model BWP-3T
Rated Load(t) 3t
Impacted rated load(t) 3.2
structure of frame steel plates welded beam structure
Thickness of the steel plate 12
Cart weight(t) 1
Wheel load(t) 7.7
Ground requirement cement ground
Table size(mm) 3000x1200
Height of the whole cart(mm) 650
Space from the ground(mm) 50
Wheels distance 1700
Axles distance 4300
Turning radius(mm) 4300
Turning type turning while driving without stop
Control method for turning control button
Turning structure mechanical
Wheel diameter Ф400/4
Wheel quality polyurethane wheels
Running speed(m/min) 0-12
Brake principle electric magnetic force
Operation method with wire or no wire
Charger motor's installation installed on cart
Function of charger motor automatic charging
Warning equipment sound and light lamp

Advantage

1. The BWP trackless electric transfer cart adopts solid cast steel ladle rubber wheels, which has a large bearing capacity and does not require a track. It is required that the ground flatness and bearing capacity must be high, and the direction guided by the steering wheel can be freely turned.


2. The BWP trackless electric transfer cart is powered by a battery, without external power supply, and the rubber wheels do not need a rail. It can turn 360° freely without being restricted by the rail. The remote control handle is easy to operate, convenient and flexible, but it is not suitable for high frequency use. workplace.


3. The BWP trackless electric transfer cart can turn 360 degrees flexibly, with forward, backward, left turn, right turn buttons, speed control button, emergency stop button, abnormal light indication, power-on light indication, authority key and other control buttons.

Good Price Machinery Plant Apply Trackless Electric Transfer Cart 3t


Production Process


Good Price Machinery Plant Apply Trackless Electric Transfer Cart 3t

Packing&Shipping


Good Price Machinery Plant Apply Trackless Electric Transfer Cart 3t

Our Company

Good Price Machinery Plant Apply Trackless Electric Transfer Cart 3t
Good Price Machinery Plant Apply Trackless Electric Transfer Cart 3t

Good Price Machinery Plant Apply Trackless Electric Transfer Cart 3tGood Price Machinery Plant Apply Trackless Electric Transfer Cart 3t


After-sale Service

  • Our commitment: The load bearing safety factor of the trolley is no less than 120%.

  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.

  • 16 hours engineering service and 24 hours internet service for our customers.

  • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.

  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.

  • Good Price Machinery Plant Apply Trackless Electric Transfer Cart 3t
