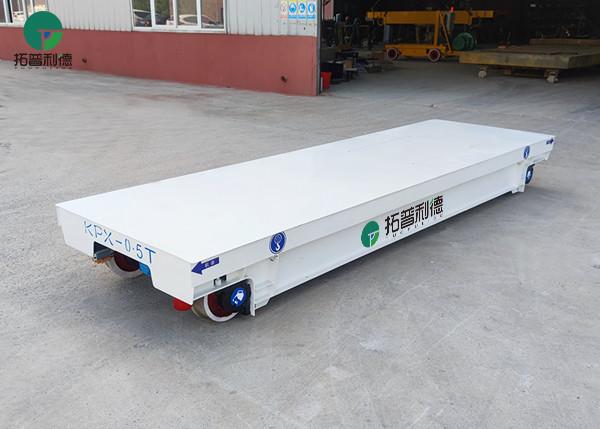

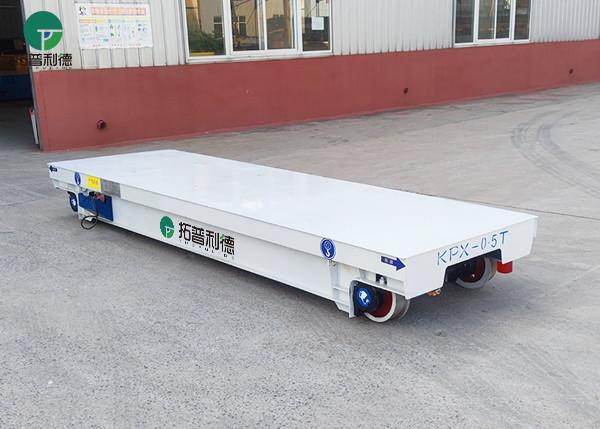

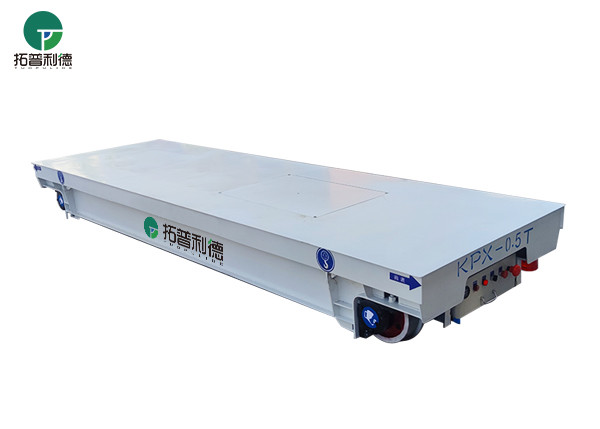

KPX series is a battery electric transfer cart, powered by battery. The battery provides power to the DC traction motor, and the DC motor drives the flat cart to run. Compared with the AC motor, the DC motor has the advantages of not easy to burn, large starting torque and strong overload capacity.The battery electric flat cart drive system mainly consists of drive motor, reducer, drive wheel, etc. The operator can control the running function of the cart (start, run, decelerate and stop) according to the function button of the hand-held button box on the cart; the electromagnetic brake is used for emergency braking of the transfer cart in an emergency state, and this function can be controlled by the function button. It can also automatically realize emergency braking by adding sensors.
Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | |
Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
Reference Weight (t) | 2.8 | 4.2 | 5.9 | 6.8 | 8 | 10.8 | 26.8 | |
Recommended Rail Model | P15 | P18 | P24 | P38 | P43 | P50 | QU100 |
The electric power material handling transfer carts are widely applied in assembly line (ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory(steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction(bridge, simple building, concrete, concrete column), petroleum industry(oil pump, sucker rod and parts), energy(polycrystalline silicon, generator, windmill), chemical industry(electrolytic cell, retort etc), railway(rail maintenance, rail welding, train tractor).
Q: What is the leading time, delivery term, and payment term?
A: Usually our leading time is 30 days.
