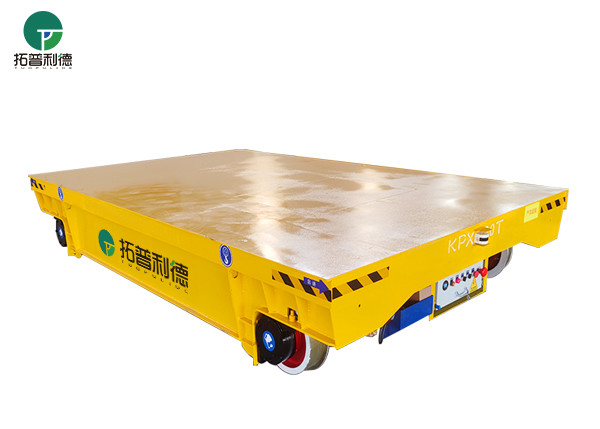

Heavy Load Billet Industry Workshop Battery Operated Rail Trolley
Heavy Load Billet Industry Workshop Battery Operated Rail Trolley
Heavy Load Billet Industry Workshop Battery Operated Rail Trolley
Heavy Load Billet Industry Workshop Battery Operated Rail Trolley
Heavy Load Billet Industry Workshop Battery Operated Rail Trolley
Heavy Load Billet Industry Workshop Battery Operated Rail Trolley
Heavy Load Billet Industry Workshop Battery Operated Rail Trolley
Heavy Load Billet Industry Workshop Battery Operated Rail Trolley
Heavy Load Billet Industry Workshop Battery Operated Rail Trolley
Heavy Load Billet Industry Workshop Battery Operated Rail Trolley
Specifications
Brand Name :
Topleader
Model Number :
KPX
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$3000-$12000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
30-40 days after receive your prepayment
Packaging Details :
The whole Material Handling Transfer Cart will be packed by the tarp, the parts will be packed by polywood case.
Product name :
Heavy load billet industry workshop battery operated rail trolley
Power supply :
Electric Power or Custom
Key Words :
battery operated rail trolley
Load capacity :
1-300T
Running speed :
0-20m/min
Application :
Factory ,warehouse and working line
Warranty :
1 year
Color :
customized
OEM :
Accepted
Description

Heavy load billet industry workshop battery operated rail trolley

Introduction

Heavy load billet industry workshop battery operated rail trolley is composed of frame, transmission device, driving wheel group, driven wheel group, buffer device, maintenance-free battery, electrical equipment and safety protection device. The whole cart design makes the flat cart easy to transport, stable and safe in operation, and has no faults such as rail jamming and derailment. The lubrication points are well sealed, and there is no oil dripping, oil leakage and other faults.

Heavy Load Billet Industry Workshop Battery Operated Rail Trolley

Advantages:
(1) Unlimited running distance.
(2) Can turn.
(3) It ca be used in anti-explosion occasion if the parts are anti-explosion.
(4) The advantage of the DC motor are as follows: stable star,big staring power, small impact to the gear reducer, low voltage, long lifetime and so on.

Heavy Load Billet Industry Workshop Battery Operated Rail Trolley

Parameter List

Rated load (T)

2

10

20

30

50

63

150

Table size

length(L)

2000

3600

4000

4500

5500

5600

10000

Width(W)

1500

2000

2200

2200

2500

2500

3000

Height(H)

450

500

550

600

650

700

1200

Wheel Base (mm)

1200

2600

2800

3200

4200

4300

7000

Rail Inner Gauge (mm)

1200

1435

1435

1435

1435

1435

2000

Wheel Diameter(mm)

Φ270

Φ300

Φ350

Φ400

Φ500

Φ600

Φ600

Wheel Quantity

4

4

4

4

4

4

8

Ground Clearance (mm)

50

50

50

50

50

75

75

Running speed (min)

0-25

0-25

0-20

0-20

0-20

0-20

0-18

Max Wheel Load (KN)

14.4

42.6

77.7

110.4

174

221.4

265.2

Reference Weight (t)

2.8

4.2

5.9

6.8

8

10.8

26.8

Recommended Rail Model

P15

P18

P24

P38

P43

P50

QU100

Application

The electric power material handling transfer carts are widely applied in assembly line (ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory(steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction(bridge, simple building, concrete, concrete column), petroleum industry(oil pump, sucker rod and parts), energy(polycrystalline silicon, generator, windmill), chemical industry(electrolytic cell, retort etc), railway(rail maintenance, rail welding, train tractor).

Heavy Load Billet Industry Workshop Battery Operated Rail Trolley

Delivery & Package

Heavy Load Billet Industry Workshop Battery Operated Rail Trolley

Customer Visit

Heavy Load Billet Industry Workshop Battery Operated Rail Trolley

Q&A

Q: Whether you product can be customized?
A: Sure. All our products are customized as per customers’ requirement, because different products are with different requirements of specification. The proper solution will be provided according to your true demand.
Q: What is the size and load of this Rail Coil Transfer Car?
A:The size and load of our this rail coil transfer car is customized design according to your requirement.
Q: How do transfer cart been shipped?
A: We export the transfer cart by sea or train with full container, LCL or in Bulk.

Q: What is the leading time, delivery term, and payment term?

A: Usually our leading time is 30 days.

About the delivery term, we accept ,FOB, CIF. About the payment, we accept T/T or L/C, etc.
Q: Can we choose the power supply for industry transport cart?
A: Yes,such as the cable drum, battery powered ,low voltage powered, busbar powered ,trailing cable powered, etc.
