20t battery wireless charging autonomous mobile cargo transfer cart
20t battery wireless charging autonomous mobile cargo transfer cart
20t battery wireless charging autonomous mobile cargo transfer cart
20t battery wireless charging autonomous mobile cargo transfer cart
20t battery wireless charging autonomous mobile cargo transfer cart
20t battery wireless charging autonomous mobile cargo transfer cart
20t battery wireless charging autonomous mobile cargo transfer cart
20t battery wireless charging autonomous mobile cargo transfer cart
Specifications
Brand Name :
Topleader
Model Number :
Rail Transfer Cart
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$3000-$12000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
30-40 days after receive your prepayment
Packaging Details :
The whole Material Handling Transfer Cart will be packed by the tarp, the parts will be packed by polywood case.
Product name :
20t battery wireless charging autonomous mobile cargo transfer cart
Power supply :
Electric Power or Custom
Key Words :
20t transfer cart
Load capacity :
1-300T
Running speed :
0-20m/min
Application :
Factory ,warehouse and working line
Warranty :
1 year
Color :
customized
OEM :
Accepted
Description

20t battery wireless charging autonomous mobile cargo transfer cart

Introduction

The battery-driven railway flatbed truck is a rail electric transport vehicle used in factories. First of all, it is a rail-type transport vehicle. It needs to lay tracks on the ground to realize the forward, backward and speed regulation of the vehicle. This kind of flatbed truck has strong load capacity, can travel on curved track, and can adjust the speed. It has the characteristics of simple structure, convenient use, large carrying capacity, easy maintenance, long service life, etc. It is suitable for a variety of working environments and saves labor costs. It is a transportation tool that frequently carries heavy objects within a short distance and between the factory buildings and the factory buildings.

20t battery wireless charging autonomous mobile cargo transfer cart

Advantage

The transfer cart, literally speak, it is a transfer cart with rails, which is the traditional and mature type transfer cart. More importantly, it has been new favorite in the industry transport field all over the world with hot market. Especially for the workshop transportation.

  • The transfer cart can run on the Vertical rails, ”L”rails, “S”rails, arc-shaped rails...
  • The transfer cart can be applied in many occasions, such as easy explosion, high temperature, ferry...
  • DC motor, stable start, starting torque, small impact to gear reducer, low voltage, long lifetime...
  • This kinds of transfer cart is battery powered, so only charged fully, can it run freely without limited distance.
  • Professional team from Xinxiang New Leader Machinery Manufacturing Co., Ltd. the proper solution can be provided once getting for your inquiry.
  • The transfer carts are customized as per your true demand.

20t battery wireless charging autonomous mobile cargo transfer cart

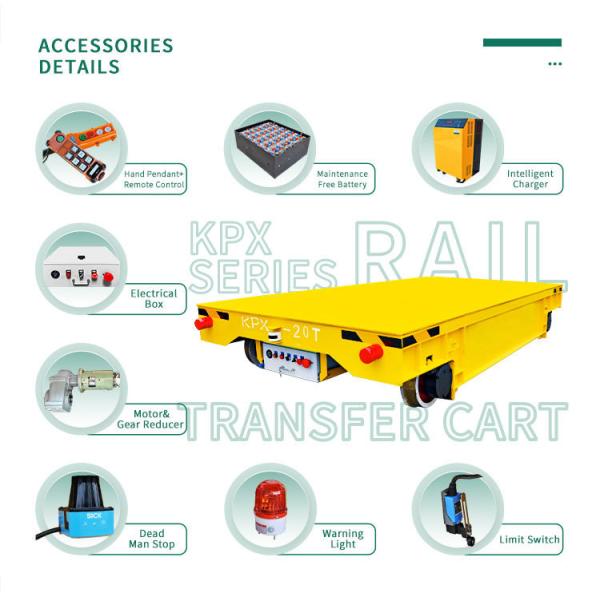

Detail

20t battery wireless charging autonomous mobile cargo transfer cart

Parameter List

Rated load (T)

2

10

20

30

50

63

150

Table size

length(L)

2000

3600

4000

4500

5500

5600

10000

Width(W)

1500

2000

2200

2200

2500

2500

3000

Height(H)

450

500

550

600

650

700

1200

Wheel Base (mm)

1200

2600

2800

3200

4200

4300

7000

Rail Inner Gauge (mm)

1200

1435

1435

1435

1435

1435

2000

Wheel Diameter(mm)

Φ270

Φ300

Φ350

Φ400

Φ500

Φ600

Φ600

Wheel Quantity

4

4

4

4

4

4

8

Ground Clearance (mm)

50

50

50

50

50

75

75

Running speed (min)

0-25

0-25

0-20

0-20

0-20

0-20

0-18

Max Wheel Load (KN)

14.4

42.6

77.7

110.4

174

221.4

265.2

Reference Weight (t)

2.8

4.2

5.9

6.8

8

10.8

26.8

Recommended Rail Model

P15

P18

P24

P38

P43

P50

QU100

Application

Electric battery flat car can be widely used in a variety of working environment, production workshop, machinery manufacturing, automobile industry, warehouse transportation, mold industry, plastic industry, electronic factory, metallurgy industry, coal mining and so on

20t battery wireless charging autonomous mobile cargo transfer cart

Delivery & Package

20t battery wireless charging autonomous mobile cargo transfer cart

Customer Visit

20t battery wireless charging autonomous mobile cargo transfer cart

Q&A

Q: Whether you product can be customized?
A: Sure. All our products are customized as per customers’ requirement, because different products are with different requirements of specification. The proper solution will be provided according to your true demand.
Q: What is the size and load of this Rail Coil Transfer Car?
A:The size and load of our this rail coil transfer car is customized design according to your requirement.
Q: How do transfer cart been shipped?
A: We export the transfer cart by sea or train with full container, LCL or in Bulk.

Q: What is the leading time, delivery term, and payment term?

A: Usually our leading time is 30 days.

About the delivery term, we accept ,FOB, CIF. About the payment, we accept T/T or L/C, etc.
Q: Can we choose the power supply for industry transport cart?
A: Yes,such as the cable drum, battery powered ,low voltage powered, busbar powered ,trailing cable powered, etc.
