Specifications
Brand Name :
Topleader
Model Number :
KPX

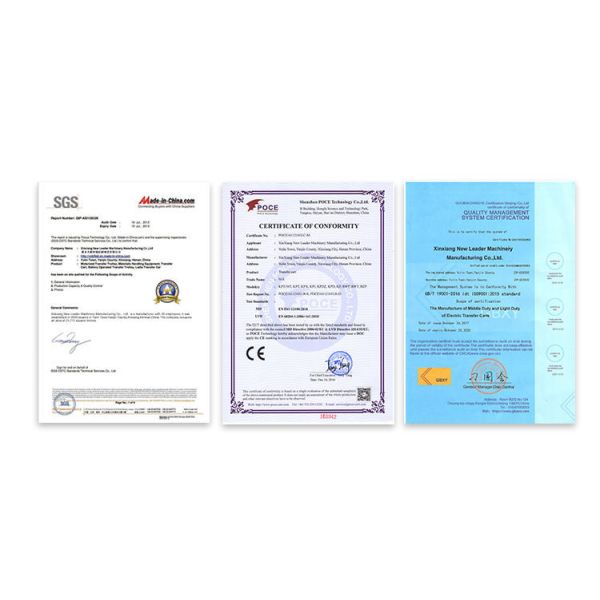

Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$7000-$12000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
30-40 days after your prepayment
Packaging Details :
The transfer bogie will be packed by the tarp, the parts will be packed by polywood case.
Product name :
High temperature resistant rail battery hot metal ladle transfer cart
Power supply :
Battery power
Size :
Customized
Load capacity :
1-500T
Running speed :
0-30m/min(adjust)
Application :
Factory ,warehouse and working line
Warranty :
1 year
Color :
Customized
OEM :
Accepted
Description

High temperature resistant rail battery hot metal ladle transfer cart

Description

About steel ladle car, it is an electric steel ladle car powered by conductor rails. The power source AC380v is transformed into AC36v three-phase through transformer. Then the wheels connected to the three rails respectively(add a conducting rail). The steel ladle car's wheels and conducting plate lead the AC 36V electricity to the electric appliance box which is installed on the carts. And AC36v is transformed to AC 380V through the transformer. Then controls AC Metallurgy motor through AC control system to make the transfer cart start, stop, go forward and backward.
This kind of ladle transfer car can solve problems with high temperature steel ladle, liquid iron ladle transferring in metallurgy industry.
Ladle transfer car is specially designed to transfer the high-temperature ladle. This kind of transfer car has strict requirements on safety and anti-high temperature, so the material, driving system and electrical parts of the bogie should be specially designed.

High temperature resistant rail battery hot metal ladle transfer cart

Advantages

  • The steel ladle transfer trolley can run on the Vertical rails, ”L”rails, “S”rails, arc-shaped rails...
  • The steel ladle transfer trolley can be applied in many occasions, such as easy explosion, high temperature, ferry...
  • DC motor, stable start, starting torque, small impact to gear reducer, low voltage, long lifetime...
  • This kinds of steel ladle transfer trolley is battery powered, so only charged fully, can it run freely without limited distance.
  • Professional team from Xinxiang New Leader Machinery Manufacturing Co., Ltd. the proper solution can be provided once getting for your inquiry.
  • The steel ladle transfer trolley is customized as per your true demand.
High temperature resistant rail battery hot metal ladle transfer cart

Parts Details

High temperature resistant rail battery hot metal ladle transfer cart


Application

The steel ladle transfer trolley is suitable for various occasions, for example,industries, (steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc from one location to another; Paper roll plant: transfer paper coil Painting shops: transfer work piece into the painting room Sand blasting room) Other industries: shipbuilding, quarries, warehouses and multi-bay workshops, etc.

For material transfer, the steel ladle transfer trolley has been widely used in this field with hot market. Any interests and problems, welcome to contact with us. The proper solution can be provided to you once getting for your confirmation.


High temperature resistant rail battery hot metal ladle transfer cart

Technical Parameters

Model KPX-2T KPX-10T KPX-20T KPX-30T KPX-50T KPX-63T KPX-150T
Rated load (T) 2 10 20 30 50 63 150
Table size length(L) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000 2200 2200 2500 2500 3000
Height(H) 450 500 550 600 650 700 1200
Wheel Base (mm) 1200 2600 2800 3200 4200 4300 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 2000
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ400 Φ500 Φ600 Φ600
Wheel Quantity 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75 75
Running speed (min) 0-25 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 1 1.6 2.2 3.5 5 6.3 15
Running Time When Full Load 4.32 4.8 4 3.5 3.3 3 2.9
Running Distance for one Charge(Km) 6.5 7.2 4.8 4.2 4 3.6 3.2
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 265.2
Reference Weight (t) 2.8 4.2 5.9 6.8 8 10.8 26.8
Recommended Rail Model P15 P18 P24 P38 P43 P50 QU100


Delivery --- Molten Steel Ladle Transfer Trolley Car


High temperature resistant rail battery hot metal ladle transfer cart

Our company


High temperature resistant rail battery hot metal ladle transfer cart

High temperature resistant rail battery hot metal ladle transfer cart

After-Sale Service

  • Our commitment: The load bearing safety factor of the trolley is no less than 120%.
  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
  • 16 hours engineering service and 24 hours internet service for our customers.
  • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
