Specifications
Brand Name :
Xiaocheng
Place of Origin :
CHINA
Description

Leaf Spring Automatic Eye Forming:

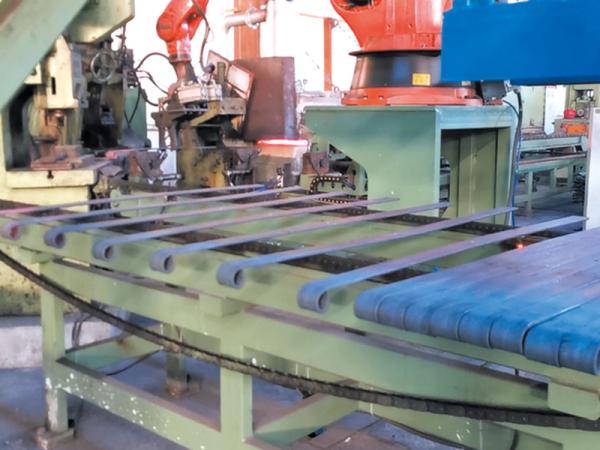

According to the requirements of the demander, design the related equipment of the leaf spring coil ear and the coil ear of automobile, cooperate with the robot, complete the automatic loading and unloading work before and after the leaf spring coil ear and the ear, and realize the full automatic unmanned production function of the coil ear and ear process from the heating.

Leaf Spring Weight Each 2~50kg
Distance between Two Eyes Centre 500~2200mm
Leaf Spring Thickness 6~45mm
Leaf Spring Width 50~120mm
Leaf Spring Length of Automatic Feeding 400~2200mm
Max. Weight of Carrying Capacity 400kg
Max. Width of Magnetic Struck 630mm
Automatic Feeding Quantity 1pc
Max. Heated Length of End Heating Furnace 400mm
Normal Heating Temperature >950℃
Productivity loop 25s/pc
Standard: W90*T16*Heated L400mm
Max. Temperature 1050°C
Consume
5 Burners		 45Nm³/h
Natural Gas
Furnace Temperature Control Accuracy ±10℃
Natural Gas Supply
5000~8000Pa		 >8500KCAL/Nm³
Furnace Dimension
Heating Area		 L4500*W450*H600mm
