Specifications
Brand Name :
Xiaocheng
Place of Origin :
CHINA
Description

Leaf Spring Drilling Hole Production Line:

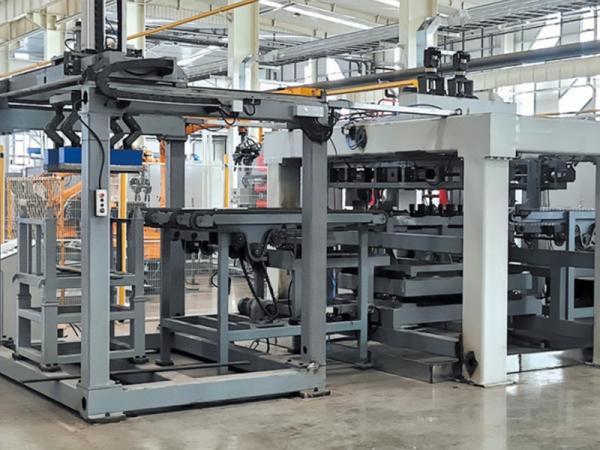

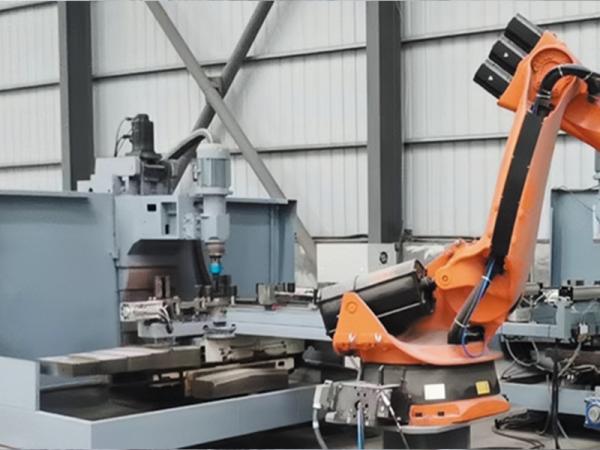

Design and manufacture relevant automatic loading and unloading mechanisms, as well as a servo centering and clamping mechanism, according to the client's requirements. These mechanisms will integrate with the client’s drilling main machine and the full-line automation control system to complete the processing of the leaf spring center hole.

Leaf Spring Unit Weight 10~70kg
Leaf Spring Length 1000~2400mm
Leaf Spring Width 75~120mm
Leaf Spring Thickness 10~50mm
Max. Feeding Raw Material Length 2400mm
Max. Raw Material Weight Each Row 500kg
Max. Raw Material Width Each Row 630mm

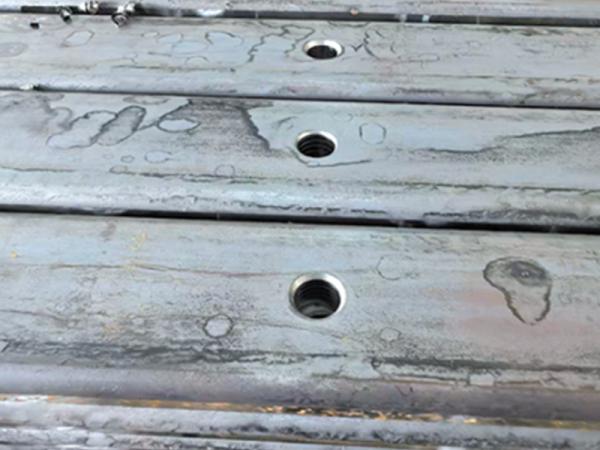

Drilling Size φ12.5~21.5mm
Drilling Type U
Drilling Workstation 2
Drilling Positioning Deviation
Length Direction		 ±1.5mm
Drilling Symmetry
Lateral Deviation		 ≤0.5mm
Production Efficiency 30s/2pcs
Standard: T25mm, φ14.5mm
Power 22kw
