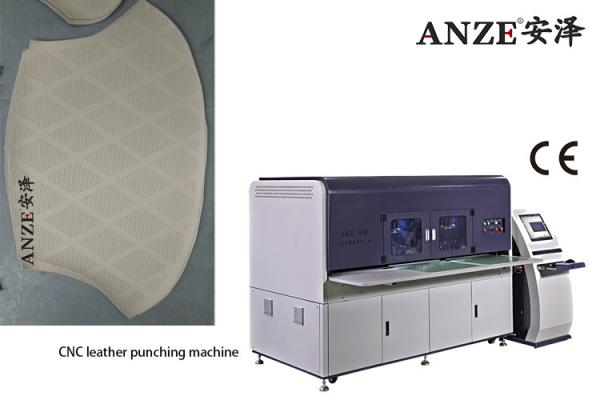

Auto Leather Punching Machine Bag Hole Perforation 900 * 2 Punches / Min
Auto Leather Punching Machine Bag Hole Perforation 900 * 2 Punches / Min
Specifications
Brand Name :
ANZE
Model Number :
A2-G2-R4
Certification :
CE
Place of Origin :
CHINA
MOQ :
Negotiation
Payment Terms :
T/T
Supply Ability :
10
Packaging Details :
Fumigation-free wooden packing
Brand :
ANZE
Model :
A2-G2-R4
Application :
Bag hole perforation
Speed :
900*2 punches/min
Work size :
500*600mm *2
Control type :
Fully automatic
Price :
Negotiation
Delivery Time :
7-14 working days
Description

Automatic bag punching machine A2-G2-R4

Machine Advantages:

GANTRY STRUCTURE

Unique Gantry structure ensures machine in strong and stable condition. It helps to avoid the Ball Screw being damaged by the punching heads. This excellent Gantry structure guarantees the machine durable more than 10 years.

The structure also contributes to reduce the punching noise and make the working environment more comfortable.

PRECISE CNC MACHINING

All key components are processed by CNC machine. ±0.02mm machine tolerance ensures ±0.1mm punching precision.

The punching bars are made of special material to reduce the friction and minimize the abrasion. Our company has a lot on material research.

TAIWAN PMI GRINDING SCREW

Machine transmission part adopts Taiwan PMI grinding screwwith accuracy level of grade C3 which effectively ensures the accuracy of the punching.

Our machines targets at high-end customers, so the quality is obviously much higher.

Basic characteristics:

- Mechanical punching, no burnt, no smell.

- ANZE Self developed punching software allows regular upgrade.

- Design in AutoCAD/CorelDraw, no need of mold.

- 900 holes/minute, 15 holes/second, high efficiency.

- 2 kwh/hour, low power consumption.

- Smart board change saves material laying time.

- Waste collection system keeps the work environment clean.

- Nation patents, the leader of punching industry.

Main freatures:

- Mechanical punching, no burnt, no smell.

- ANZE Self developed punching software allows regular upgrade.

- Design in AutoCAD/CorelDraw, no need of mold.

- 900 holes/minute, 15 holes/second, high efficiency.

- 2 kwh/hour, low power consumption.

- Smart board change saves material laying time.

- Waste collection system keeps the work environment clean.

- Nation patents, the leader of punching industry.

Main specifications:

Model A2-G2-R4
High Speed
2 Group 8 Pins
Speed (Punches/minute) 900*2
Head Quantity 4*2
Rotary Head Quantity 4*2
Working Size (mm) (500*600)*2
Material Thickness (mm) 1~6
Hole Diameter (mm) 0.8~12
Punching Precision (mm) ±0.1
Machine Size (mm) 2340*1730*1700
Packing Size (mm) 2380*2000*1900
Net weight (kg) 1500
Gross Weight (kg) 1800
Power Voltage (VAC) 220
Power Frequency (Hz) 50/60
Power (kW) 2.0
Compressed Air Pressure (bar) 5~6
Other models are also available.
Contact ANZE for details.		 A2-D-R6 600*500mm
A2-D2-R6 (500*600mm)*2
A2-G-R4 600*500mm
A2-G-R6 600*500mm

Sample:

Auto Leather Punching Machine Bag Hole Perforation 900 * 2 Punches / Min

Auto Leather Punching Machine Bag Hole Perforation 900 * 2 Punches / Min

WHY CHOOSE ANZE?

---- HIGHER SPEED, HIGHER PRECISION, HIGHER STABILITY

1. Highly cost-effective, shorten payback time.

Machine with 1 Group, 45~60 days payback time.

Machine with 2 Groups, 30~60 days payback time.

2. High precision.

CNC processing brings high precision.

3. Stable performance.

We are applying the same quality control standard as German companies, so machines are all well-made. They are durable and can work 24 hours continuously every day.

The CNC Leather Punching Machine we are selling now is the 6th generation.

ANZE is at the leading position in punching industry for machine efficiency, precision and stability.

Auto Leather Punching Machine Bag Hole Perforation 900 * 2 Punches / Min
