Many kinds of colors durable K Profile Large Span 600-305 type K Span Roof Panel
Many kinds of colors durable K Profile Large Span 600-305 type K Span Roof Panel
Specifications
Brand Name :
LBM
Model Number :
600-305 Type
Certification :
ISO 9001: 2008
Place of Origin :
Jiangsu, China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
35-40days
Supply Ability :
28 Set per Month
Size :
8800mmx2200mmx2080mm (L*W*H)
Roller stations :
14 rows
Forming speed :
15m/min
Sewing speed :
10m/min
Control System :
PLC+Computer touch screen
Motor Power :
17.5Kw
Description

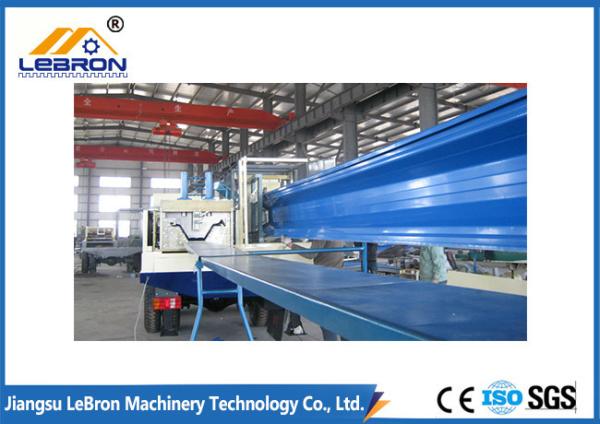

600-305 type K span roof panel roll forming machine

1. Description of 600-305 type K span roof panel roll forming machine

K span roof panel roll forming machine is used for produce K span roof panels.The process is using the forming machine roll bend the color plate to the channel shape, then use the roll machine roll it become to the channel single arc panel. Finally use the locking machine joint it become to a complete plate at one time.

LBM factory is manufacturing high quality K span roof panel roll forming machines, and they are mostly exported to the foreign countries, such as Angola, Congo, Ethiopia, Australia, Turkey, Indonesia, Thailand, Bangladesh, Vietnam, etc.

2. Technical details of 600-305 type K span roof panel roll forming machine

1). Size: 8800mmx2200mmx2080mm
2). Total Weight: approx 8 Ton
3). Color: Blue, White, Orange, Custom
4). Suitable Raw Material: PPGI, PPGL, GI, GL Coils
5). Thickness: 0.6mm-1.6mm
6). Suitable Coil Width: below 600mm
7). Yield Strength: 235Mpa-550Mpa
8). Quantity of forming rollers stations: 14 rolls
9). Working speed: Straight sheet: 15m/min
10). Arch sheet speed: 13m/min
11). Sewing speed: 10m/min
12). Max span: 26m
13). Forming rollers material: No.45 steel with chrome coating and heat treatment, HRC 58-62
14). Cutter material: CR12 mould steel, with quenched treatment
15). Controlling system: PLC+Computer touch screen
16). Forming motor power: 7.5KW
17). Bending motor power: 4.0KW+1.5KW+1.5KW
18). Electric cutting power:3.0KW

3. Main components of K span roof panel roll forming machine

Name Quantity
1). Manual decoiler 1 Set
2). Guiding device 1 Set
3). Roll forming Device 1 Set
4). Hydraulic cutting device 1 Set
5). Curving device 1 Set
6). Sewing equipment 1 Set
7). Support table 1 Set
8). PLC computer control system 1 Set

4. Accessories of 600-305 type k span roof panel roll forming machine

No. Name Amount Usage
1 Sewing machine 2 Assembling the sheets
2 Core shaft 2 Roll the sheets
3 Coil cradles 2 Sheet roll support
4 Straight sheet side cradle 8 Plate support
5 Straight sheet cradle 8 Plate support
6 Arch sheet cradle 8 Plate support
7 Driving chains 3 To roll the gears
8 Chain links 6 To link the chain
9 Suspender 3 Lifting
10 Hanger 8 Lifting
11 Clamp 16 Bait sheets
12 Super pliers 2 Bait sheets
13 Mental scissors 1 For cutting
14 Wrench 1 For setting screw
15 Travel switch 1 Measure sheet length
16 Adjust tools 1 Adjust machine
17 Crank 2 Adjust legs of machine
18 VCD 5 Teach customer produce
19 The instructions 2 How to use machine
20 Software 2 Help customer calculate engineering
21 Brochure 5 Know my company
22 The sample single 5 Know my comany

5. K span roof panel roll forming machine work flowchart

Many kinds of colors durable K Profile Large Span 600-305 type K Span Roof Panel

6. 600-305 type K span roof panel sketch

Many kinds of colors durable K Profile Large Span 600-305 type K Span Roof Panel

7. Applications of 600-305 type K span roof panel roll forming machine

Many kinds of colors durable K Profile Large Span 600-305 type K Span Roof Panel

8. Delivery of 600-305 K span roof panel roll forming machine

Many kinds of colors durable K Profile Large Span 600-305 type K Span Roof Panel

9. Our service

Install and Training:

If buyers come to our factory to inspect, the training to install and operate is provided face to face.

If not, manual and video is provided to show how to install and operate.

After-sale Service:

We provide 12-hour online service for our customers. Phone: +86 15821208506

a .The seller will debug the machines freely in China, and the traffic expense in China of the technique people will be paid by the seller.

When technique men go to the buyer's place to debug the machines, the buyer should pay the

expense of accommodation, and round-trip tickets for the seller’s men. and pay the technician USD60 per day.

b. If the buyer sends people to receive the training of the operation given by the seller, during the training period, the seller should pay the expense of accommodation, and traffic for the buyer's men.
