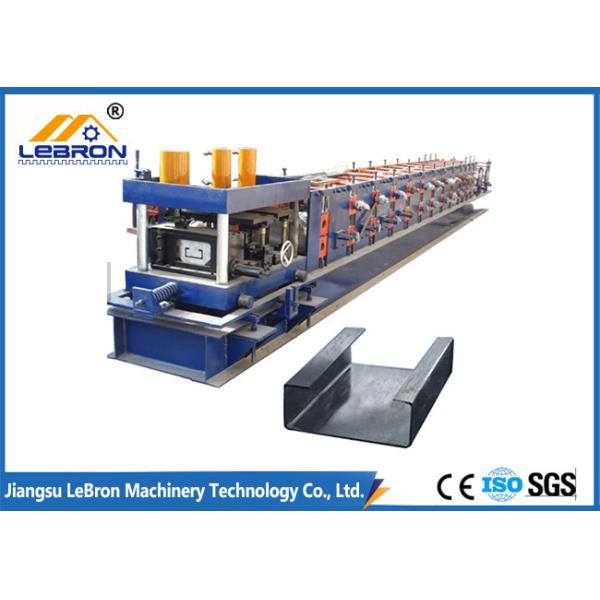

2018 New Type Automatic CNC Control High Speed C Purlin Roll Forming Machine at factory direct sell price
2018 New Type Automatic CNC Control High Speed C Purlin Roll Forming Machine at factory direct sell price
2018 New Type Automatic CNC Control High Speed C Purlin Roll Forming Machine at factory direct sell price
2018 New Type Automatic CNC Control High Speed C Purlin Roll Forming Machine at factory direct sell price
Specifications
Brand Name :
LBM
Model Number :
LBM-CPR-MODEL 01
Certification :
ISO 9001:2008
Place of Origin :
China
Size :
About 8.5m*1.0m×1.4m
Weight :
About 10 Tons
Rollers station :
18 stands
Roller shaft diameter :
80mm
Roll forming speed :
12-24m/min
Roller material :
GCr15 steel with hard chrome, quenched
Cutter material :
Cr12 steel with hard chrome, quenched
Main power :
11Kw
MOQ :
1
Delivery Time :
30-40
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Description

2018 New Type Automatic CNC Control High Speed C Purlin Roll Forming Machine at factory direct sell price

1. Description of C purlin roll forming machine:

C,Z,U shape purlin. Uses the steel strip as the raw material, by the processes such as Leveling, Rolling, Punching, standard length Cutting, etc. become the final product. It can be used for the major stress structure of the large and middle sized industrial constructions and civilian constructions. The roof load bearing and wall panel supporting of the plants, warehouses, engine houses, hangars, exhibition halls, cinemas, gymnasiums, fair flower stands, etc.

LBM factory is manufacturing high quality C shape purlin roll forming machines, and exported to the foreign countries such as Australia, India, Uzbekistan, Indonesia, Croatia, Thailand, etc.

2.Technical parameters of c purlin roll forming machine

1. Configurations Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device,Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table.
2. Control System PLC Inverter Encoder Touch Screen
3. Main Frame 400mm H-Beam
4. Total Power 22 kw
5. Power Supply 380V, 50Hz, 3-Phase
6. Forming Speed 12-24m/min
7. Roll Station 18 stands
8. Roller Shaft Diameter 80mm
9. Effective Width 80-300mm
10. Feeding Thickness 1.5-3.0mm
11. Backboard Thickness 20mm
12. Cutter Standard GCr12 steel with hard chrome, quenched
13. Roller Standard Gcr15# steel with hard chrome, quenched
14. Overall Size About 8500×1000×1400mm
15. Total Weight About 10T
16. Custom

According to customer's requirements

2. C purlin roll forming machine

2018 New Type Automatic CNC Control High Speed C Purlin Roll Forming Machine at factory direct sell price

2018 New Type Automatic CNC Control High Speed C Purlin Roll Forming Machine at factory direct sell price

3. C purlin roll forming machine flow charts:

2018 New Type Automatic CNC Control High Speed C Purlin Roll Forming Machine at factory direct sell price

4. Detailed Technology

1). Cutting Sysytem

Material Of the Cutting: Cr12Mov with quench heat treatment. It can decide cut panel dimension according to the hydraulic drive and PLC computer control system. Easy quick change C size without change moulds.

2018 New Type Automatic CNC Control High Speed C Purlin Roll Forming Machine at factory direct sell price

2). Roller System

Material of the Roller: High grade Gcr15 forged steel

Roller station: 18 rows

Thickness of feeding material: 1.5-3.0mm

2018 New Type Automatic CNC Control High Speed C Purlin Roll Forming Machine at factory direct sell price

2018 New Type Automatic CNC Control High Speed C Purlin Roll Forming Machine at factory direct sell price

3). Computer Control Cabinet

Programmable setting of profile length and quantity. Computed mode has two modes: automatic and manual one.

Language: English, Chinese, Spanish and Russia

The system is easy to operate and use.

2018 New Type Automatic CNC Control High Speed C Purlin Roll Forming Machine at factory direct sell price

2018 New Type Automatic CNC Control High Speed C Purlin Roll Forming Machine at factory direct sell price

Note: Through this motor to replace the different models of production size range of 80-300mm. Set the size you need, it will change automaticly.

4). Hydraulic System

Power: 22kw

Hydraulic Oil: 46# hydraulic oil

Working pressure: 12-16 Mpa adjustable

Solenoid value: 3 groups

Color: Bule (or as customer's requirement)

2018 New Type Automatic CNC Control High Speed C Purlin Roll Forming Machine at factory direct sell price

5). Manual Uncoiler

Loading Capacity: 5 Ton

Inner Diameter: 500-508mm

Steel Coil Width: 600mm

2018 New Type Automatic CNC Control High Speed C Purlin Roll Forming Machine at factory direct sell price

6). Receiving Table:

Main framework adopts welded steel and supported roller , used or transmit and collect the finished products

2018 New Type Automatic CNC Control High Speed C Purlin Roll Forming Machine at factory direct sell price

6. LBM International:

2018 New Type Automatic CNC Control High Speed C Purlin Roll Forming Machine at factory direct sell price

2018 New Type Automatic CNC Control High Speed C Purlin Roll Forming Machine at factory direct sell price

7. Contact Information:

Jiangsu LeBron Machinery Technology Co., Ltd.

Factory address:

No. 551, the Zhenze West Road, Huazhuang Street, Binhu Distrct, Wuxi City, Jiangsu Province, China

Telephone: +86-510-8202 1910

Company address:

1604#, Yangming Sicence & Technology Industry Center, No.855 Nanhu Avenue,Wuxi city, Jiangsu, China

Zip Code: 214000

Telephone: +86-510-8388 8805

Fax: +86-510-8262 0085

Contact Person:

Alfred (Manager)

Cell/Whatsapp/Skype: +86-15821208506

Email: alfred@lebron-machinery.com

Website: www.lebron-machinery.com
