1. Description of highway guardrail roll forming machine:
Guardrail Plate uses the Subgrade, Column,and the Deformation of the crossbeams absorb the impact energy, and force the vehicles to change the direction, return to the normal drive direction, prevent the car run out of the road, and protect the vehicle and passengers, lower down the damage costs of the accident. It is produced by the processes such as steel plate leveling, punching, roll pressing,standard length cutting, etc. It is widely used in the areas of highway guardrail, scenic spots’ exterior-protected constructions, etc.
LBM is manufacturing high quality guardrail roll forming machines, and regularly exported to Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc.
2. Highway guardrail roll forming machine technical details:
1). Suitable Raw Material: Galvanized or Galvalume Coils
2). Thickness: 2-4mm
3). Coil Width: 482mm
4). Yield Strength: 235 Mpa
5). Quantity of forming rollers stations: 16-18 rolls
6). Diameter of forming rollers shafts: 90mm
7). Roll Forming Speed: 10-15/min
8). Forming rollers material: CR12 mould steel, with quenched treatment
9). Cutter material: CR12 mould steel, with quenched treatment
10). Controlling system: PLC and Converter
11). Main motor power: 55kw
12). Hydraulic unit motor power: 22kw
13). Electric voltage: According to customer’s requirement

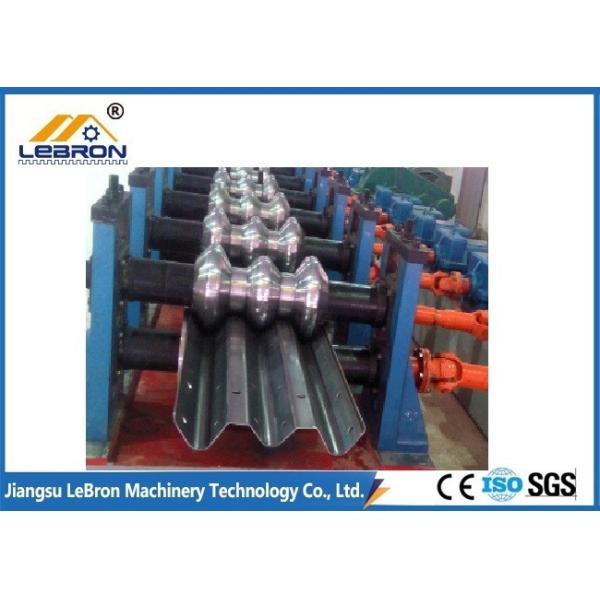

3. Highway guardrail roll forming machine


4. Layout of highway guardrail roll forming machine:

5. Main componets of highway guardrail roll forming machine:

6. Panel drawings:


7. Our Advantages:
1). Germany COPRA software design
2). 5 engineers with more than 20 years experience
3). 30 professional technician team
4). 22 sets advanced CNC production lines on site
5). Passionate Team
6). Installation engineers can reach your factory within 6 days
7). 3 years maintenance and whole life technical support
8. Applications:
