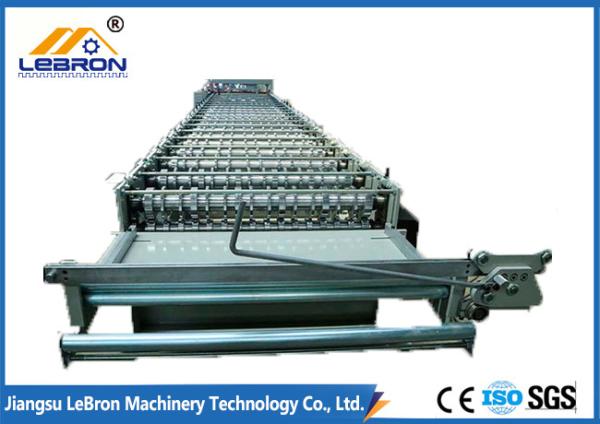

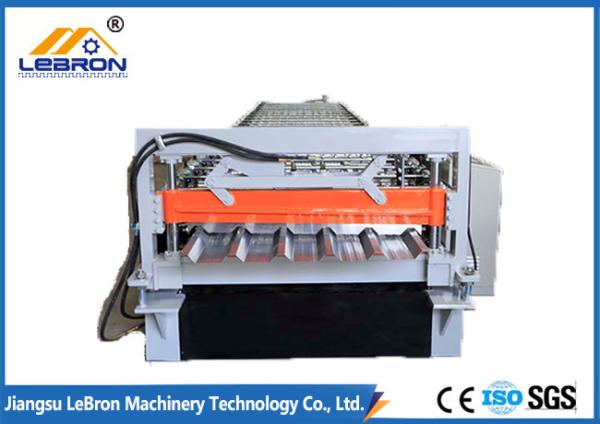

Long time service 2018 new type Color Steel Tile Roll Forming Machine PLC Control Full Automatic made in china Gray
Long time service 2018 new type Color Steel Tile Roll Forming Machine PLC Control Full Automatic made in china Gray
Long time service 2018 new type Color Steel Tile Roll Forming Machine PLC Control Full Automatic made in china Gray
Long time service 2018 new type Color Steel Tile Roll Forming Machine PLC Control Full Automatic made in china Gray
Long time service 2018 new type Color Steel Tile Roll Forming Machine PLC Control Full Automatic made in china Gray
Long time service 2018 new type Color Steel Tile Roll Forming Machine PLC Control Full Automatic made in china Gray
Specifications
Brand Name :
LBM
Certification :
certificate of china
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Delivery Time :
30-40
Material :
45# Steel Quenched, Coated Chrome
Color :
Gray
Roller stations :
15
Forming Rollers Material: :
No.45 Steel, Coated With Chromed Treatment
Roll Forming Speed: :
8-12m/min
Warranty: :
18 Months
Weight: :
7000 Kgs
Main Motor Power: :
7.5Kw
Description

Long time service 2018 new type Color Steel Tile Roll Forming Machine PLC Control Full Automatic made in china Gray

1. Description of YX25-210-840 type color steel tile roll forming machine:

Color steel tile has the good characteristics, such as light weight, high strength, colorful, easy installation, anti-seismic, fire-proofing, rain-proof, long service life, maintenance free, etc. Now, it is widely popularized and used. This machine is suit for the production of various kinds of color steel tiles.

LBM factory is producing high quality color steel tile roll forming machines. Most of the machines were exported to Thailand, Singapore India, Vietnam, Iran, Russia, Ghana, Tanzania, etc.

2. Detailed parameters of YX25-210-840 type color steel tile roll forming machine

Machine Specifications
Weight Approx 6000 Kg
Size 8m*1.5m*1.2m (Length x Width x Height)
Color Main color: Blue & Yellow (or custom)
Suitable Raw Material
Material PPGI and PPGL Coils, Hot rolled & Cold rolled coil
Thickness 0.3-0.8mm
Coil width 1000mm, 1220mm, 1450mm
Yield Strength 235Mpa-550Mpa
Main Technical Parameters
Quantity of forming rollers stations 20
Diameter of forming rollers shafts 70 mm
Roll Forming Speed 10-16m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 5.5 Kw
Electric voltage 380V 50HZ 3 Phase (or custom)

7. Applications:

Long time service 2018 new type Color Steel Tile Roll Forming Machine PLC Control Full Automatic made in china Gray

Long time service 2018 new type Color Steel Tile Roll Forming Machine PLC Control Full Automatic made in china Gray

Long time service 2018 new type Color Steel Tile Roll Forming Machine PLC Control Full Automatic made in china Gray

Long time service 2018 new type Color Steel Tile Roll Forming Machine PLC Control Full Automatic made in china Gray

Long time service 2018 new type Color Steel Tile Roll Forming Machine PLC Control Full Automatic made in china Gray

3. Main components of YX25-210-840 type color steel tile roll forming machine

Manual Decoiler 1 Set
Feeding guiding device 1 Set
Leveling System 1 Set
Roll Forming System 1 Set
Hydraulic Cutting System 1 Set
PLC control box 1 Set
Hydraulic Unit 1 Set
Receiving Tables 1 Set

4. Panel sketch

Long time service 2018 new type Color Steel Tile Roll Forming Machine PLC Control Full Automatic made in china Gray

5. Service

· 5 engineers with more than 20 years experience

· 30 professional technician

· 22 sets advanced CNC production lines on site

· Installation engineers can reach your factory within 6 days

· 3 years maintenance and whole life technical support

· Free accessories can be offered to you during the warranty period

6. Delivery

Long time service 2018 new type Color Steel Tile Roll Forming Machine PLC Control Full Automatic made in china Gray
