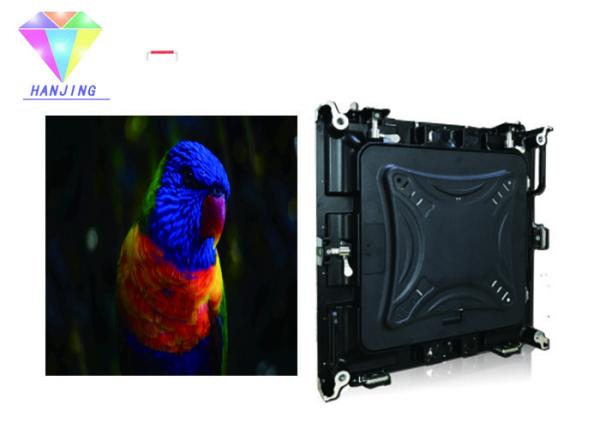

Die-Cast Aluminum Indoor Led Display , 480mm*480mm Indoor Fixed Led Display
Die-Cast Aluminum Indoor Led Display , 480mm*480mm Indoor Fixed Led Display
Die-Cast Aluminum Indoor Led Display , 480mm*480mm Indoor Fixed Led Display
Die-Cast Aluminum Indoor Led Display , 480mm*480mm Indoor Fixed Led Display
Die-Cast Aluminum Indoor Led Display , 480mm*480mm Indoor Fixed Led Display
Die-Cast Aluminum Indoor Led Display , 480mm*480mm Indoor Fixed Led Display
Die-Cast Aluminum Indoor Led Display , 480mm*480mm Indoor Fixed Led Display
Die-Cast Aluminum Indoor Led Display , 480mm*480mm Indoor Fixed Led Display
Specifications
Brand Name :
HANJING
Model Number :
P2.5mm LED Display
Certification :
CE/ROHS/FCC/ETL/TUV
Place of Origin :
ShenZhen，China
MOQ :
1pc/1sqm
Price :
Negotiation
Payment Terms :
35% T/T as prepayment,65% T/T as balance at factory, Western Union, MoneyGram
Supply Ability :
1000 sets per month
Delivery Time :
8-25 working days after received your payment
Packaging Details :
Plywood cartons or flight case packaging
Pixel Pitch :
P2.5mm
LED Type :
SMD2121
Cabinet Size(WXH) :
480mm*480mm
Cabinet Resolution :
192dots*192 dots
Brightness :
≤800 nit
IP Grade :
IP31
Cabinet weight :
6.7 Kg
Refresh Rate :
≥1920 Hz
Color Display :
281 trillion
Cabinet Material :
Die-cast Aluminum
Operating environment :
-20℃-50℃；10%-90%RH
Driving Method :
1/32 scan
Description
P2.5 indoor LED display :
1:True and natural color, perfect displaying effect;
2:LED Density: 160,000 pixel/sqm;

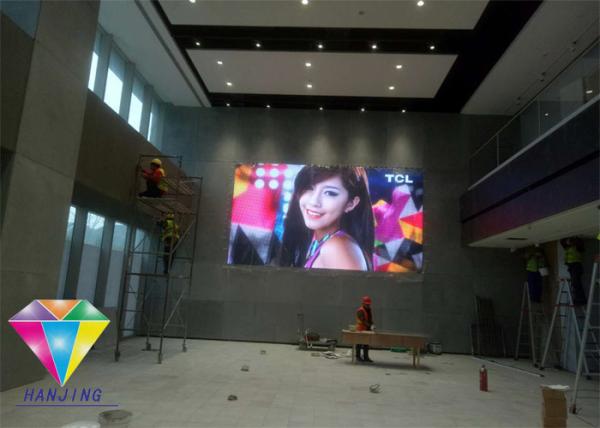

3:For indoor fixed installation application;
4: High brightness & high resolution;
5:High contrast ratio which ensures vivid images;
6:Seamless panels with excellent flatness;
7:Wide viewing angle: 140 degree both horizontal and vertical;
8:Low power consumption, environmentally friendly;
9:High contrast ratio which ensures vivid images;
10:High color saturation, high contrast for good image display.

Specifications:

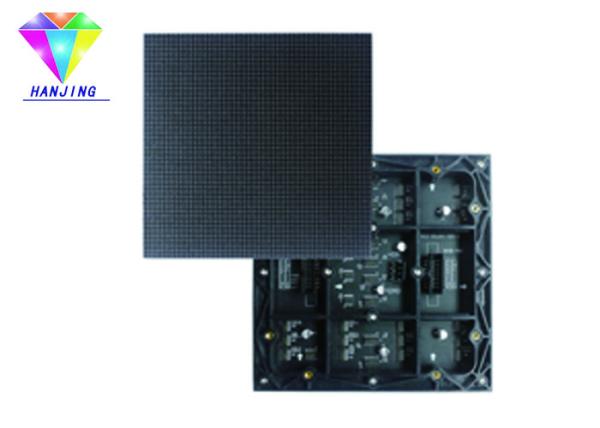

Module

Technical Parameters

Pixel Pitch

2.5mm

LED Type

SMD2121

Module Size (mm)

160mm*160mm

Module Resolution

64dots*64dots

Module weight

0.24kg

Brightness

≤800 nit

Refresh Rate

≥1920 Hz

Driving Method

1/32 scan

Grey level

16bits

Color Display

281 trillion

IP Grade

IP31

Power consumption (Max/Average)

600/200 W/sq.m

LifeSpan

100000 hour

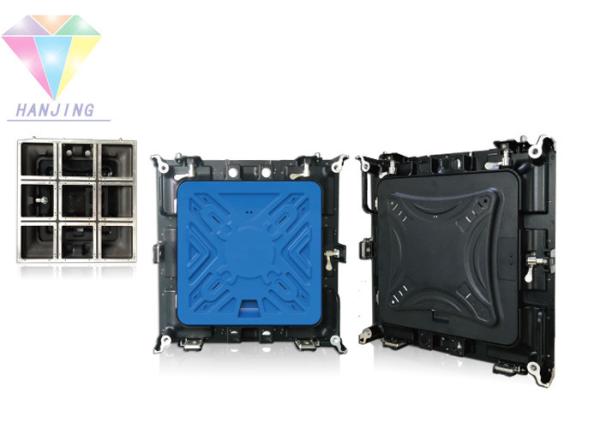

Cabinet

Cabinet Size(WXH)

480mm*480mm

Cabinet resolution

192*192 Pixeles

Cabinet Material

Die-cast Aluminum

Cabinet weight(kg)

6.7kg

Pixel density

160000 Pixeles /m²

Installation

Flat Installation And Arc Installation

Control system

Full color asynchronous /synchronous

Data interconnection

Wifi / USB / HDMI

Software

PC software or Android App or IOS App

Application environment

Input AC power voltage

110V-240V

Working temperature

indoor:-20℃~50℃

Working humidity

humidity:10%-90%RH

Signal type(with video processor)

AV, S-Video, VGA, DVI, HDMI, SDI, DP

Control distance

HSYV: <100m; SMF: <10km
