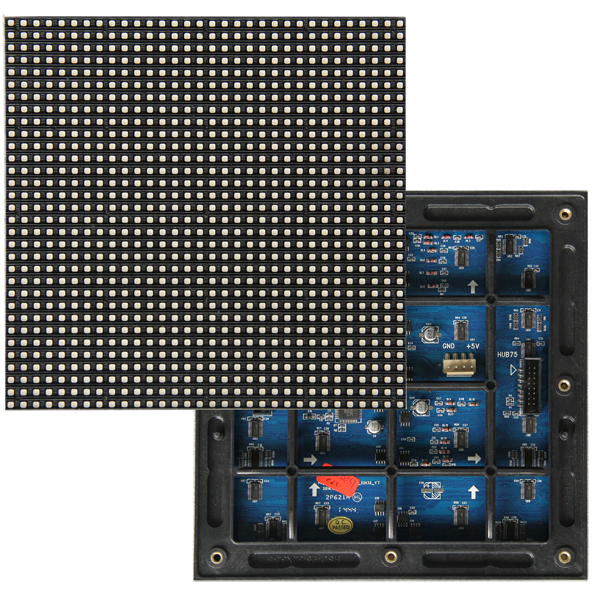

P6mm Outdoor Advertising LED Display SMD3528 Type 5500nits Aluminum Cover
P6mm Outdoor Advertising LED Display SMD3528 Type 5500nits Aluminum Cover
P6mm Outdoor Advertising LED Display SMD3528 Type 5500nits Aluminum Cover
P6mm Outdoor Advertising LED Display SMD3528 Type 5500nits Aluminum Cover
P6mm Outdoor Advertising LED Display SMD3528 Type 5500nits Aluminum Cover
P6mm Outdoor Advertising LED Display SMD3528 Type 5500nits Aluminum Cover
Specifications
Brand Name :
HANJING
Model Number :
P6mmSMD3528
Certification :
CE/ROHS/FCC/ETL/TUV
Place of Origin :
ShenZhen，China
MOQ :
1pc/1sqm
Price :
Negotiation
Payment Terms :
35% T/T as prepayment,65% T/T as balance at factory, Western Union, MoneyGram
Supply Ability :
>600sqm/month
Delivery Time :
8-25 working days after received your payment
Packaging Details :
Plywood cartons or flight case packaging
Model :
P5mm6
Pixel pitch :
6mm
LED type :
SMD3528
Module Size :
192mm × 192mm
Module Resolution :
32 dots × 32 dots
Cabinet Size(WXH) :
576mm ×576mm
Cabinet Resolution :
96 dots × 96 dots
Brightness :
5500nits
Color Processing depth :
16 bit
Contrast ratio :
6000:1
LifeSpan :
100000 hour
IP rating :
IP65
Cabinet Material :
Aluminum
Cabinet weight :
11.4 Kg
Installation :
Crane girder hoisting and fixed installation
Operating environment :
outdoor：-30℃-50℃；humidity:10%-90%RH
Description

P6mm Electronic Outdoor Advertising Led Display Screen For Large Companies / Small Institutions

Specifications:

Item Technical Parameters
Screen model HJ-P6mm
Led encapsulation SMD3528
Led configuration 1R1G1B
Pixel pitch(mm/inch) 6mm
Red chip Wavelength range: 619-628nm, 5nm;
Brightness range:700-1000mcd
Green chip Wavelength range: 461-470nm, 4nm;
Brightness range: 1400-1700mcd
Blue chip Wavelength range: 522-531nm, 4nm;
Brightness range: 350-500mcd
Resolution 27777 dots/㎡
Maintenance Front-maintained
Brightness: CD/sq.ft (CD/㎡) >511CD/sq.ft (5500 CD/㎡)
Refreshing frequency: Hz >960 Hz
Grey scale 16bit
Module pixel W 32 × H 32 dots
Module size W 192 × H 192 mm
Viewing angle Horizontal: 120°, Vertical: 120°
Cabinet material Aluminum/steel
Lightness uniformity Pixel & module>90%
Cabinet color Customized
Driving method 1/8 scan constant current
Driving IC MBI5041/MBI5024/JXI5020
Cabinet size Cabinet size could be adjustable by demands
Power supply 85-264VAC, typical value: 110VAC/220VAC
Max consumption Max.≤89.12W/sq.ft (960W/㎡)
Average consumption Ave.: 29.73-44.59w/sq.ft(Ave.:320-480w/㎡)
Led life time ≥100000hours
Mean time to failure ≥5000hours
Module plainness ≤1mm
Pixel out of control less than 1/ 10⁻⁴, dispersion state
Working temperature -30ºC to +60ºC
Working humidity 20% to 90%
Waterproof IP lamp & top:IP65, other part:IP54
Protection function dampproof/dust-free/anti high temp/anti-thunder/ anti electromagnetic interference, etc
Certificate CCC /CE/UL/Rohs/Tuv
Hardware interface Standard PC network interface technology/U disc/3G
Display mode 24 bit true color
Colors 281 trillion colors
Colour processing ability ≥16bit
Color temperature 3000K ≤ TC ≤9000K, adjustable
Brightness regulating degrees continuously adjustable step by step through the software
Anty-Y correction curve Anti-γ correction system: 2.2-2.8 adjustable
Image adjust White balance/contrasting / hue control/ Single point brightness adjustment
Image processing mage noise reduction/ image enhancement/ image motion compensation/ Image color coordinate transformation processing/ Image passivation treatment
Correction technology Yes
Video mode AVI, WMV, MPG, MOV, DAT, VOB, MP4, FLV
Controlling platform Windows
