Specifications
Brand Name :
HANJING
Model Number :
P8mmSMD3535
Certification :
CE/ROHS/FCC/ETL/TUV
Place of Origin :
ShenZhen,China
MOQ :
1pc/1sqm
Price :
Negotiation
Payment Terms :
35% T/T as prepayment,65% T/T as balance at factory, Western Union, MoneyGram
Supply Ability :
>600sqm/month
Delivery Time :
8-25 working days after received your payme8
Packaging Details :
Plywood cartons or flight case packaging
Model :
P8mm
Pixel pitch :
8mm
LED type :
SMD 3 in 1
Module Size :
320mm × 16mm
Module Resolution :
32 dots × 16 dots
Cabinet Size(WXH) :
960mm * 960mm
Cabinet Resolution :
96 dots × 96 dots
Brightness :
5500nits
Color Processing depth :
16 bit
Contrast ratio :
6000:1
LifeSpan :
100000 hour
IP rating :
IP65
Cabinet Material :
iron
Cabinet weight :
30.5 Kg
Installation :
Flat installation and arc installation
Operating environment :
outdoor:-30℃-50℃;humidity:10%-90%RH
Description

P8 Electronic Outdoor Advertising Led Display Screen For Large Companies / Small Institutions

HanJing is an Chinese company specialized in the filed of electronic advertising and implementation of software and its goal is to help both large companies and small institutions to obtain the best means of advertising at an appropriate cost.

Has been working in the field of electronic advertising screen for more than ten years, especially in the filed of trading system based on a high outcome of the outstanding experience in the filed and rushed to provide integrated solutions for users to start selecting the best products and import from abroad to design and prepare new forms of innovative work on the emergence of more information for pedestrians in a direct way.

To provide the ideal solutions and integrated solutions to suit different sectors of the intuitions, companies, and government institutions and any commercial institution, whether small or micro, medium or global.

We also take care of the punishments to users through continuous training and provide a detailed explanation of our products and explain the method of programming and use through manuals operating.

We put in our hands the expertise of a superior and serious in harnessing the latest information technology to develop optional solutions that suit the nature and circumstances of their work, which always makes us the lead.

Our after-sales services are in contact with customers and follow-up with technical support and maintenance of our products by a team of trainee and specialist. We follow up the information technology and we are keen to provide new and innovative to our customers, which puts us in the top position always.

We regard each client as a partner who deserves the best services. We work as honest advisors to our customers. This is why we are successful in gaining their trust thanks to a team of high efficiency.


Specifications:

Item Technical Parameters
Screen model HJ-P8SMD3535
Led encapsulation SMD3535
Led configuration 1R1G1B
Pixel pitch(mm/inch) 8mm / 0.31 inch
Red chip Wavelength range: 619-628nm, 5nm;
Brightness range:700-1000mcd
Green chip Wavelength range: 461-470nm, 4nm;
Brightness range: 1400-1700mcd
Blue chip Wavelength range: 522-531nm, 4nm;
Brightness range: 350-500mcd
Resolution 1452dots/sq.ft (15625dots/㎡)
Maintenance Front-maintained
Brightness: CD/sq.ft (CD/㎡) >511CD/sq.ft (5500 CD/㎡)
Refreshing frequency: Hz >960 Hz
Grey scale 16bit

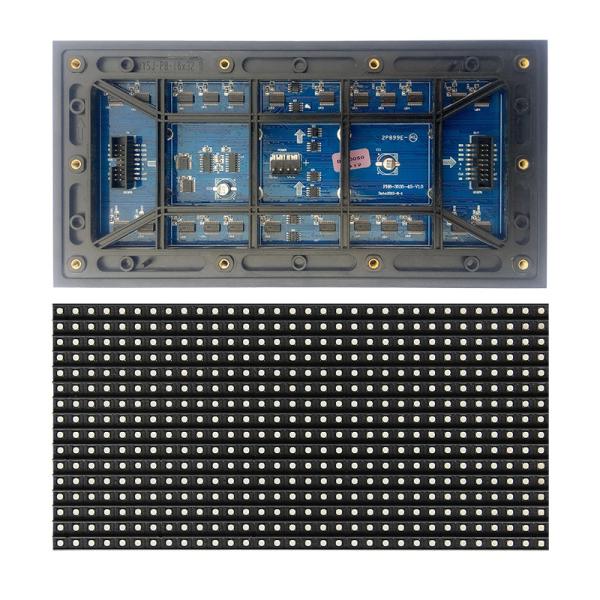

Module pixel W 40 × H 40 dots
Module size W 12.60 X H 12.60 inch (W 320 × H 320 mm)
Viewing angle Horizontal: 120°, Vertical: 120°
Cabinet material Aluminum/steel
Lightness uniformity Pixel & module>90%
Cabinet color Customized
Driving method 1/8 scan constant current
Driving IC MBI5041/MBI5024/JXI5020
Cabinet size Cabinet size could be adjustable by demands
Power supply 85-264VAC, typical value: 110VAC/220VAC
Max consumption Max.≤89.12W/sq.ft (960W/㎡)
Average consumption Ave.: 29.73-44.59w/sq.ft(Ave.:320-480w/㎡)
Led life time ≥100000hours
Mean time to failure ≥5000hours
Module plainness ≤1mm
Pixel out of control less than 1/ 10⁻⁴, dispersion state
Working temperature -30ºC to +60ºC
Working humidity 20% to 90%
Waterproof IP lamp & top:IP65, other part:IP54
Protection function dampproof/dust-free/anti high temp/anti-thunder/ anti electromagnetic interference, etc
Certificate CCC /CE/UL/Rohs/Tuv
Hardware interface Standard PC network interface technology/U disc/3G
Display mode 24 bit true color
Colors 281 trillion colors
Colour processing ability ≥16bit
Color temperature 3000K ≤ TC ≤9000K, adjustable
Brightness regulating degrees continuously adjustable step by step through the software
Anty-Y correction curve Anti-γ correction system: 2.2-2.8 adjustable
Image adjust White balance/contrasting / hue control/ Single point brightness adjustment
Image processing mage noise reduction/ image enhancement/ image motion compensation/ Image color coordinate transformation processing/ Image passivation treatment
Correction technology Yes
Video mode AVI, WMV, MPG, MOV, DAT, VOB, MP4, FLV
Controlling platform Windows
