Specifications
Brand Name :
HANJING
Model Number :
P3.91mm oudoor Floor LED Display
Certification :
CE/ROHS/FCC/ETL/TUV
Place of Origin :
ShenZhen，China
MOQ :
1pc/1sqm
Price :
Negotiation
Payment Terms :
35% T/T as prepayment,65% T/T as balance at factory, Western Union, MoneyGram
Supply Ability :
1000 sets per month
Delivery Time :
8-25 working days after received your payment
Packaging Details :
Plywood cartons or flight case packaging
Pixel Pitch :
P5.2mm
LED Type :
SMD1921
Cabinet Size(WXH) :
250mm*250mm
Cabinet Resolution :
48dots*48dots
Brightness :
≤3000 nit
IP Grade :
IP65
Cabinet weight :
25Kg /m²
Refresh Rate :
≥1920 Hz
Color Display :
281 trillion
Cabinet Material :
Die-cast Aluminum
Operating environment :
oudoor：-20℃-60℃；
Driving Method :
1/6 scan
Description





Remarks:
1. For P6.25 LED Dance Floor, it can be with or without interactive function, if you need it with interactive function, we have already built this function in the led floor.
2. For P5.2 and P8.928, they are just normal LED floor, but they also can be with interactive function, we need to add the webcam and other necessory device.
3. For P5.2, P6.25 and P8.928 normal LED Dance Floor, Linsn/Dbstar/novastar/xixun, all these brand control cards can be used.
4. Both of the PCB and cabinet are designed by ourself, it totally belongs to our patent product.

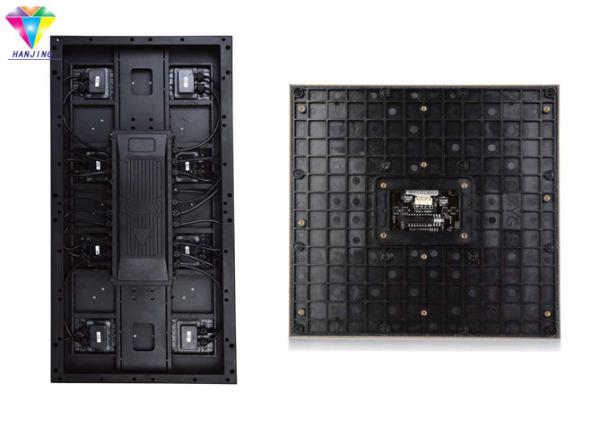

5. Each cabinet with power in/out and signal in/out connector, fast to assemble, easy to connect. Ethernet cable for communication.
6. Adopt the super strong PC and front mask, bearing capacity can up to 2T per sqm. Anti-slip,
7. The depth of the led sign after added the ground supporters can be 120-170mm, adjustable.

Other Corresponding product specifications:

P5.2mm Floor LED Display

P6.25mm Floor LED Display

P8.928mm Floor LED Display



Pitch 5.2mm 6.25mm 8.928mm
Module Resolution 48x48 40x40 28x28
Module Demension 250x250mm 250x250mm 250x250mm
Pixel Density 36,864dots/m2 25,600dots/m2 12,544dots/m2
Pixel Composition 1R1G1B 1R1G1B 1R1G1B
LED Type SMD1921 SMD2525 SMD3528
Drive Mode 1/6 scan 1/5 scan 1/4 scan
White Balance Brightness 3000cd/m2 3000cd/m2 3000cd/m2
Power 44W 40W 35W
Viewing angle H:120 / V:120 H:120 / V:120 H:120 / V:120
Standard Cabinet Size 500mm W x 1000mm H x 80m D 500mm W x 1000mm H x 80m D 500mm W x 1000mm H x 80m D
Cabinet Resolution 96x192 pixels 80x160 pixels 56x112 pixels
Cabinet Weight (metal) 25kg/m2 25kg/m2 25kg/m2
Ground Supporters (metal) 4pcs supporters per cabinet, each one is 2kg 4pcs supporters per cabinet, each one is 2kg 4pcs supporters per cabinet, each one is 2kg
Max. Consumption 700W/m2 650W/m2 600W/m2
Average Consumption 450W/m2 400W/m2 360W/m2
Input Power Frequency 50hz-60Hz 50hz-60Hz 50hz-60Hz
Refresh Rate ≥1920Hz ≥1920Hz ≥1920Hz
Working Environment Temperature, –30℃~+60℃; Humidity, 10%~90%RH
Storage Temperature —20℃～+50℃
Waterproof Rate Outdoor using, Front/rear: IP65/IP43
Working Voltage AC110-220V (±10%)/50-60Hz
Grey Scale/Display Color 14bit / 16.7M (synchronized)
Brightness Adjust 256 levels of each color(manually), 16levels of each color (automatically)
Control System Synchronous (Linsn/Dbstar/Novastar): sending card + receiving card + Video Card + DVI cable + optic fiber transmission(Optional)
Operating Platform XP / Win7 / Win10, with a friendly user interface
MTBF Mean Time Between Failure>5,000hours
Lifespan (Typical) >100,000 hours
Pixel Failure Ratio Defective Dot Rate≤0.0001
