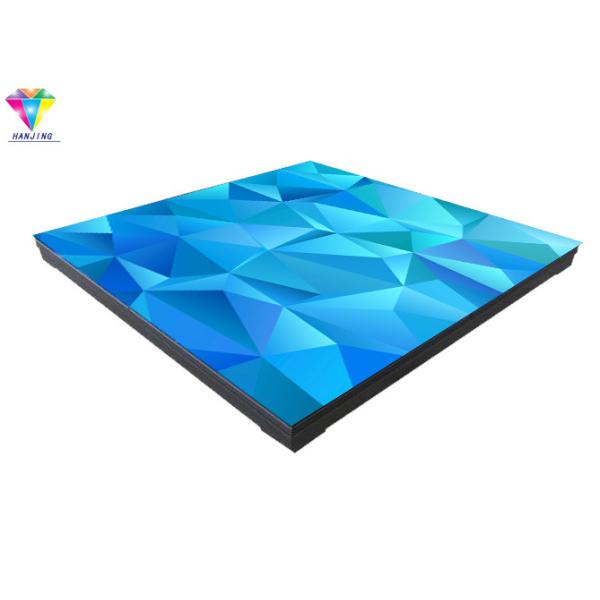

28dots*28dots Floor LED Display SMD1921 With Super Bright LED Lamp Bead
28dots*28dots Floor LED Display SMD1921 With Super Bright LED Lamp Bead
28dots*28dots Floor LED Display SMD1921 With Super Bright LED Lamp Bead
28dots*28dots Floor LED Display SMD1921 With Super Bright LED Lamp Bead
28dots*28dots Floor LED Display SMD1921 With Super Bright LED Lamp Bead
28dots*28dots Floor LED Display SMD1921 With Super Bright LED Lamp Bead
28dots*28dots Floor LED Display SMD1921 With Super Bright LED Lamp Bead
28dots*28dots Floor LED Display SMD1921 With Super Bright LED Lamp Bead
Specifications
Brand Name :
HANJING
Model Number :
P8.9mm stage LED floor tile screen
Certification :
CE/ROHS/FCC/ETL/TUV
Place of Origin :
ShenZhen，China
MOQ :
1pc/1sqm
Price :
Negotiation
Payment Terms :
35% T/T as prepayment,65% T/T as balance at factory, Western Union, MoneyGram
Supply Ability :
1000 sets per month
Delivery Time :
8-25 working days after received your payment
Packaging Details :
Plywood cartons or flight case packaging
Pixel Pitch :
P5.2mm
LED Type :
SMD1921
Cabinet Size(WXH) :
250mm*250mm
Cabinet Resolution :
28dots*28dots
Brightness :
≤3000 nit
IP Grade :
IP65
Cabinet weight :
50Kg /m²
Refresh Rate :
≥1920 Hz
Color Display :
281 trillion
Cabinet Material :
Iron box technology
Operating environment :
oudoor：-20℃-60℃；
Driving Method :
1/6 scan
Description

1:Products use:P8.9mm LED floor tile screen

● This technical specification is only applicable to the use of HanJing light P8.9 floor tile screen.

2:Products in this paper:

● The special effect of floor tile screen in the stage performance has been used fully and vividly, creating an audio-visual feast that is magnificent

and modern.

● P8.9LED floor tile screen module luminescent lamp bead mining SMD1921 three-in-one design, which makes LED floor tile screen indoors or

outdoors has a very good effect.

● The P8.9LED floor tile screen is designed with a super PC cover, which can reach 1.5 tons.

● LED floor brick screen adopts constant current drive chip and input buffer chip. The link LED control system can display video animation, image

text information and other characteristics.

3,Product features introduction:

● Super bright LED lamp bead gold line package and A grade raw material plastic package.

● High-end LED screen special waterproof silica gel.

● PCB adopts exclusive line design.

● The signal line and power line adopt the standard design of the standard.

● LED lamp bead bracket pure copper bracket, red light 12MIL, blue green 13MIL.

● The PC cover is made of anti-slip and the bearing weight is above 2T.

● Realization of human-computer interaction experience (abbreviation: interactive effect)

Other Corresponding product specifications:

P5.2mm Floor LED Display

P6.25mm Floor LED Display

P8.928mm Floor LED Display

4,Product technical specification

Ordinal number Parts Projects Floor tile screen technology index
1 Pixels Arrangement Landscape
2 Pixel spacing 8.9mm
3 Pixels 1R1G1B
4 Lamp bead model SMD1921 (chip ratio 3:6:1)
5 Physical density 12544 / ㎡
6 Module/box size Module size 250 the width & times; High (250 mm)
7 Modular resolution 28 wide & times; 28 high (point)
8 Body size 500(w)×1000(h)mm
9 The body weight 24.1KG/one
10 Casing thickness 9 cm(Block thickness)
11 The whole screen parameters Out of control points ≤3/100000
12 Unit die joint The joint size of the plate gap is consistent and ≤ 2 ㎜
13 The best distance 8-60m
14 Perspective The level of 140; , vertical 140;
15 Surface flatness Maximum error ≤ 2 ㎜
16 Screen surface ink color Ink consistency, no reflection
17 Uniformity Module brightness uniformity, uniformity 1:1
18 The power supply Use the bad border Indoor and outdoor common
19 Operating humidity range Between 10% and 90% RH
20 Operating temperature range - 20 to 65 ℃
21 The most powerful 600W/㎡
22 Average power 300W/㎡
23 Control system Control the host operating system XP computer + control software hardware + playback software and hardware
24 The control mode Synchronous with computer VGA (display synchronization)
25 Control system DVI graphics card + full color control card + fiber transmission
26 Input mode Computer and other peripherals, PAL/NTSC/SECAM, s-video; VGA. RGB. The Composite Video. SDI, etc.
27 Panel function technical parameters The LED driver Constant current drive (5 scan)
28 Computer display module 640×480,800×600,1024×768
29 Refresh rate ³2000hz
30 Grayscale/color The class of 8192
31 The whole screen brightness ³ 5000 cd/㎡
32 Service life More than 100,000 hours
33 According to the content Video DVD, VCD, TV, image, text, animation, and others.
34 Uninterrupted working time ≥10000 hours
25 interfaces Standard Ethemer network interface, communication is rs-422
36 Communication medium, control distance Multi-mode optical fiber < 500m, single mode fiber transmission < 30km, 5 lines < 100 m
37 Protection technology Moisture-proof, dustproof, antiseptic, anti-static, lightning proof, and have the function of overcurrent, short circuit, overpressure and undervoltage protection
38 Software General LED video playback software
39 LED lamp pearlescent characteristics Red chip
40 Red chip size 10 mil reverse polarity
41 Green light chip
42 Green chip size 9 * 11 mil
43 Blue chip
44 Blu-ray chip size 9 * 11 mil

P8.9mm LED floor tile screen module image:

5.1: Front of LED screen module

28dots*28dots Floor LED Display SMD1921 With Super Bright LED Lamp Bead

28dots*28dots Floor LED Display SMD1921 With Super Bright LED Lamp Bead

6,LED floor brick screen box body image

28dots*28dots Floor LED Display SMD1921 With Super Bright LED Lamp Bead

6.3 Installation

28dots*28dots Floor LED Display SMD1921 With Super Bright LED Lamp Bead

LED floor tile screen Rail mounting Installation diagram
