Wide Viewing Angle Electronic Led Advertising Display Board P8mm High Brightness
Wide Viewing Angle Electronic Led Advertising Display Board P8mm High Brightness
Wide Viewing Angle Electronic Led Advertising Display Board P8mm High Brightness
Wide Viewing Angle Electronic Led Advertising Display Board P8mm High Brightness
Specifications
Brand Name :
HANJING
Model Number :
P8mm
Certification :
CE/ROHS/FCC
Place of Origin :
ShenZhen，China
MOQ :
1pc/1sqm
Price :
Negotiation
Payment Terms :
T/T USD/EXW
Supply Ability :
600 sets per month
Delivery Time :
25-30 working days after received your payment
Packaging Details :
Wooden package or flight case package
Pixels :
8mm
Usage :
Outdoor Waterproof Advertising Display
Screen dimension :
500mm×500mm
Warranty :
2 years
Waterproof :
IP65
Pixel pitch :
32 * 16 pixels
Description

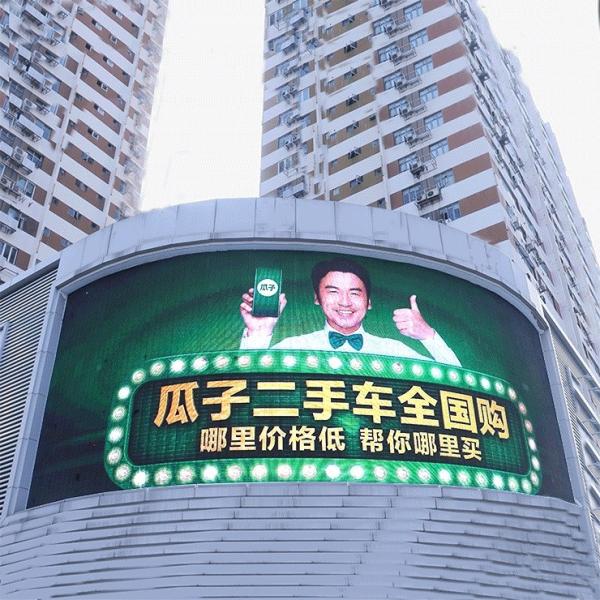

High Brightness Energy Saving Full Color Outdoor Fixed LED Display for Advertising

The Outdoor SMD LED Display use state-of-art outdoor application LEDs, the display brightness can be comparable with DIP oval LED Display but with much wider viewing angle reach to 140 degree both horizontal and vertical. The LEDs has the advantage of UV against.

Features of the outdoor SMD LED Display:
* Wide viewing angle: Horizontal 140degree, Vertical 140degree
* Weatherproof to IP65 standards
* UV against
* Easily configured for various size and aspect ratios
* Brightness from 5000 nits onwards

Functions :
1. High refresh rate: With NOVA STAR control system, no scanning line when photographed
2. High gray level: 256 RGB each ,display 16.7M colors ,vivid and perfect video effect
3. High resolution: The most apparent features of the new generation of LED display
4. Good color uniformity: With brand Lamp Nationstar and high refresh MBI5124 IC.
5. High Brightness: 6000-8000 cd/m2 ,brightness automatically adjusted
6. High Quality: CE, RoHs, FCC, UL, IP65, ISO9001 passed + 96 Hours serious testing time
7. Long life span: over100,000hours, warranty from 2 to 5 years.


Our advantage:
1. Full-color LED display is composed of RGB trichromatic leds, 36 bit color can be shown, and the real-time, synchronous display all kinds of information, such as 2 d or 3 d animation, video, television and live streaming video content.
2 .Screen after use for a long time still can keep perfect quality and white balance and enough brightness.
3. LED optical design, high precision, the RGB tricolor LED the far field of view perfect match, in order to make sure from any Angle can be the perfect reappearance of video picture
4. High quality LED chips, anti static, high wavelength stability;
5. Advanced packaging equipment, guarantee the quality and life expectancy;
6. Has a large Angle, color uniformity, low failure rate and easy maintenance.
7. Standard processing technology to ensure that each row and each column tube at the same level, ensure the stability of the clear picture.

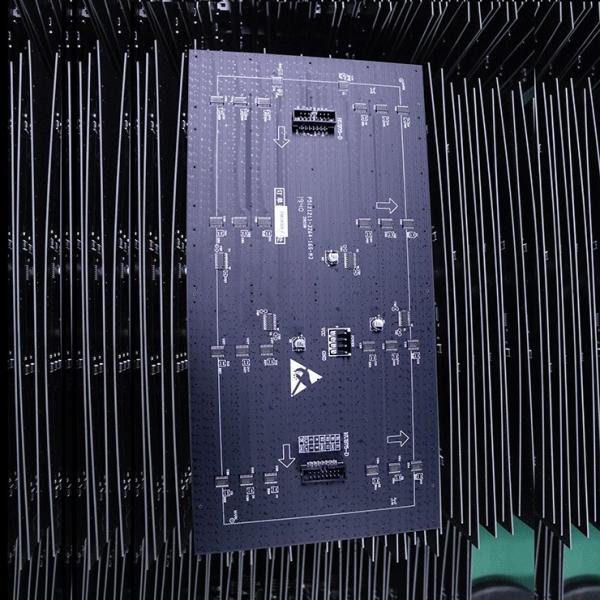

Module Specifications
1 Pixel Pitch 8mm
2 Drive mode constant current
3 Module Size 256mm × 128mm
4 Module Resolution H32dots × 16dots
5 Module Pixles 512 dots
6 Driving Method 1/4 scan
Cabinet / Frame Specification
1 Cabinet Size(WXH) W 1024mm × H1024mm X 150pcs
2 Cabinet Resolution W128 dots × H 128dots
3 Module Quanity 4pcs x 8pcs = 32pcs
4 Pixel Density 15625 dots/m2
5 Material Epoxy paint coated cold steel box
6 Cabinet Weight 40Kg /pcs
7 Mounting system Fixed with 4pcs M10 bolts
8 Ingress protection (front/rear) IP65/IP65
9 Panel service access Back service
Screen Parameters
5 Brightness ≥5000cd / sq.m.
6 View Angle Horizontal 120° Vertical 60°
7 Recommended best viewing distance 10 meter ~ 200 meter
8 Input voltage (nominal) 110 V.AC to 240V.AC
9 Input power frequency 50 to 60 Hertz 　
10 Input power (max) 800 w/sq.m.
11 Input power (average) 800 w/sq.m.
12 Screen weight 45kg/sq.m.
13 Grey scale (linear) 65,536 levels per color
14 Operating temperature range ﹣30℃ to +60℃
15 Humidity operating 10% ~ 90% /RH
16 Colors 281 Trillion
17 Contrast ratio 1000:01:00
18 Processing depth 16 bit
19 Video frame rate 60 Hertz
20 Display refresh rate 900～3840 Hertz
21 Lifetime (50% brightness) ≥100,000 Hours
22 Source compatibility (with video processor) YC, VGA, DVI, YUV, SDI, CVBS,GD-SDI
23 Data interconnection UTP Cat 5/Optical Fiber
24 Control system Synchronous/asynchronous control system
