Specifications
Brand Name :
Alpha
Model Number :
Alpha-fas-028
Certification :
ISO9001
Place of Origin :
Suzhou,Jiangsu, China (Mainland)
MOQ :
10000pcs/Run
Price :
per drawing
Payment Terms :
L/C, T/T
Supply Ability :
5000000pcs/month
Delivery Time :
10-15 work dyas
Packaging Details :
1000pcs/bag
Material :
Spring Steel
OD :
4
L :
25
Finish :
Oxidation
Tolerance :
+/-0.1
Color :
Black
Description

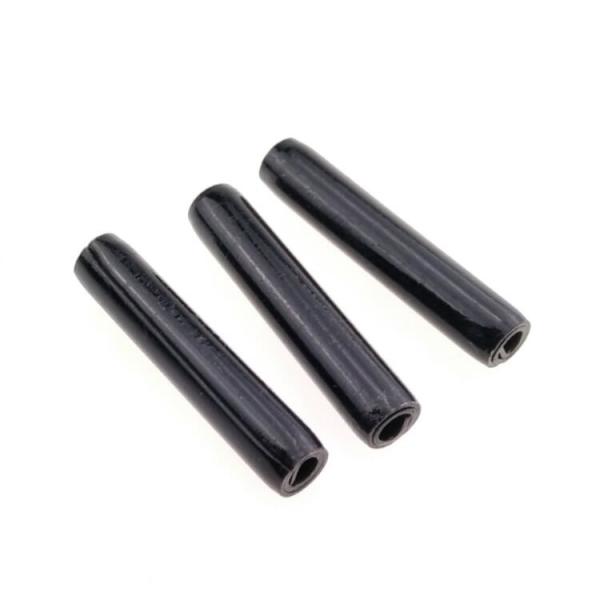

Harden Custom Fasteners Spring Steel Spiral Pins Black Coiled Pin Standard Light Type


General Description

Spiral pins are also known as coiled pins and sometimes called spring roll pins , they are comprise of a split pin ( outer ) and a rolled pin ( inner ) like following piecture showed . rolled pin is locked by splt pin as chamfered ends , they are designed for lighty duty in mechanical parts .

Technical Data

Material

Harden spring steel

Physical Properties

Hardness ( HV ) 350 Yield Strength ( Mpa ) 750 Elongation ( % ) 80
Tensile Strength ( Mpa ) 980 Torque Reduction Area ( % ) 45

Specification

d1 4

L 25
S 0.35
a 1.1

Optional Specifications

d a s l
2 0.7 0.17 4-40
3 0.7 0.25 5-45
4 1.1 0.29 6-50
5 1.3 0.33 8-60
6 1.5 0.42 10-60
8 2 0.5 12-75
10 2.5 0.67 16-120
12 3 0.84 20-120
14 3.5 1 24-160
16 4 1.3 28-200
20 4.5 1.7 32-200

Finish

Type Thickness Salty Spray Hours RoHS / REACH
Oxidation 5 12 RoHS

Product Features

1 . Excellent Flexibility .

Spring pins are made from super quality spring steel , this kind of material has good elastic deformation , which can keep the original shape long time even there is much loading during service .

2 . High Strength .

Finished spring pins on anti-fatigue is up to 240 Mpa .

3 . Perfect stability .

Inside components and instructure of pins are reformed after quenching , keeping this status long time..

4 . Good heat resistance .

Spring steel sping pins can be worked smoothly under 500 degrees surroundings , so , which is the ideal choice for part that in bolier , car , steam valve etc .

5 . Low cost .

As spring steel is easy to make and full automated production ,

6. Easy oparation .

Simple structure and strict tolerances.

7. Nice appearance .

Plated black after forming and also can be coated different colors based on request of fittings .

8 . Enviroment friendly .

All chemical elements and surface treatment are meet for the relative standards .eg , GB , ROSH etc .

9 . Resistance of oxidation.

“V”chemical element , and also can do oxidize surface treatment to improve resistance for oxidation

10 . Resistant wear

Applications

Spring steel spiral pins are used for connecting or locating or fixing puprose of mechanical spare parts . they are widely used to different areas in industry .

Tips for Use

1 . Check diameter of holes in objects before installtion , should be smaller slightly than diameter of spiral pins .

2 . Spiral pins for standard light duty assembly .

3 . Far from acid-base surroundings .


Packing Details

Harden  Custom Fasteners Spring Steel Spiral Pins Black Coiled Pin Standard Light Type Harden  Custom Fasteners Spring Steel Spiral Pins Black Coiled Pin Standard Light Type Harden  Custom Fasteners Spring Steel Spiral Pins Black Coiled Pin Standard Light Type
In Bulk ( Bags + Carton )


Kgs / Bag : 5
Kgs / CTN : 20
L X W X H : 20X 22 X 20 cm

Boxes ( Boxes + Carton )

Kgs / Box : 2
Kgs / CTN : 16
L X W X H : 20x20x18 cm

Pallets

Kgs /pallet : 1500

L X W X H : 1x1x1.5 m



















Remark : Custom packing is acceptable . Above packings are reference only , items showed in the pictures maybe not described one

Screw Description

A fastener or fastening is a hardware device that mechanically joins or affixes two or more objects together. In general, fasteners are used to create non-permanent joints; that is, joints that can be removed or dismantled without damaging the joining components.Welding is an example of creating permanent joints. Steel fasteners are usually made of stainless steel, carbon steel, or alloy steel.

What are the types of fasteners?

Specific types of Fasteners and its uses:

· These are supposed to be threaded lengths made of steel rods with heads on single end.

· Bolts are generally used along with nuts at other end and every so often with a washer too.

· Bolts are of four types including carriage bolt, Cap screw, hex bolts and Plow bolts.

What is screw fastening?

An externally threaded fastener that has thread form which prohibits assembly with a nut having a straight thread of multiple pitch length is a screw. (Example: woodscrews, tapping screws.)

What are the different steel fastening products?

Fasteners are often made of steel, but there are many different types of steel. Here are the steels most commonly used for fasteners: Alloy steels: Steels alloyed with molybdenum, nickel, and chromium (AISI 4037, 4130, 8630) are best if strength is required.

Is a bolt a fastener?

A bolt is a form of threaded fastener with an external male thread. Bolts are closely related to screws.

Why are fasteners coated?

Zinc is one of the most common coatings for most fasteners mainly due to the fact that it's cheap and protective. It is mainly used to protect the fasteners from oxidative damage, such as rusting of susceptible metals.

What are special fasteners?

Special fasteners are a bolt used under industrial circumstances to hold pieces heavy weight industrial components together under extreme pressure. These screws are made out of materials highly resistant to corrosion.

What are the types of screws?

There are two basic types of sheet metal screws, self-tapping screws and self-drillingscrews

What do screws screw into?

Screws are one kind of simple machines. ... The head is specially shaped to allow a screwdriver or wrench to grip the screw when driving it in. The most common uses ofscrews are to hold objects together — such as wood — and to position objects. Oftenscrews have a head on one end of the screw that allows it to be turned.

What are the different types of screws?

Screw Head Types

Screws come with different types of heads, including the flat head (-) and Phillips head (+), as well as hex head (shaped like a hexagon), and Torx head (shaped like a six-pointed star)

What are metal fasteners?

Metal Fasteners. Metal fasteners are of two kinds—those producing a permanent bond and those requiring either a releasable or a sliding bond. Screws, nuts and bolts, rivets, retaining rings and clamps are examples from the first category.

Are nails fasteners?

Nails are most commonly used to fasten pieces of wood together, but they are also used with plastic, drywall, masonry, and concrete. Nails are usually made of steel but can also be made of stainless steel, iron, copper, aluminum, or bronze.

What is difference between bolt and screw?

Screws are generally turned into an object, like a piece of wood, so the head needs to be bigger than the surface. ... The shafts of bolts are not tapered, whereas manyscrews are tapered. The main difference between a bolt and a screw is that a typicalscrew can work on its own and a bolt requires a nut to secure it

Why are washers coated with zinc?

Zinc coatings prevent corrosion of the protected metal by forming a barrier, and by acting as a sacrificial anode if this barrier is damaged. When exposed to the atmosphere, zinc reacts with oxygen to form zinc oxide, which further reacts with water molecules in the air to form zinc hydroxide.

What is the most common screw size?

What's The Most Common Size? A screw's diameter is called its gauge. The most common gauges are between 2 and 16 in diameter. An 8-gauge screw is a good general-purpose size.

Why are there different types of screw heads?

Torque and stripping

Although slotted head and Phillips head screw drives are common and effective, they both suffer from slipping and stripping. ... They are also much less likely to strip, which is a problem for Phillips screw drives. There are so many screw head typesthat we could spend all day talking about them.

What are mechanical fasteners?

A mechanical fastener is a device that is used to mechanically join (or fasten) two or more objects together. There are many different types of mechanical fasteners, but, in general, fasteners can be divided into two main categories; non-permanent and permanent fasteners

Is zinc coating the same as galvanized?

When used on bolts, due to the thickness of the zinc coating, all galvanized nuts must be tapped oversize. Zinc plating or electroplating is a process where zinc is applied by using a current of electricity. It is a thinner coating than hot dip galvanizing making it unsuitable for outdoor applications.
