130lm Per Watt Indoor LED Strip Lights 2835 LEDs CRI90 24VDC Low Voltage
130lm Per Watt Indoor LED Strip Lights 2835 LEDs CRI90 24VDC Low Voltage
Specifications
Brand Name :
TL
Model Number :
TL-FW28HE-IN96-10-CC80-24V-CCT
Certification :
CE ROSH ETL UL
Place of Origin :
Shenzhen
MOQ :
1000M
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50000M per month
Delivery Time :
2 weeks
Packaging Details :
Carton
LED :
SMD 2835
Color :
2200-6500K
Luminous Efficiency :
115-130lm/w
Voltage :
24VDC
Wattage :
18.5W/M
CRI :
90
Working lifetime(hour) :
50000 hours
Cutting length :
83.33mm
Description

130lm Per Watt Indoor LED Strip Lights 2835 LEDs CRI90 24VDC Low Voltage

SMD2835

1, High luminous Efficiency 115~130lm/w

2, 96LEDs per meter, 8LEDs per cutting, 24DCV

3, Warranty 3 years

4, Beam angle 120°

5, 2 layer PCB/1+2OZ copper 10mm width

6, CRI≥90, life time 30000h

7, CCT/X.Y: 2200k 2700k 3000k 4000k 5000k 6500k

1, Features

High quality flexible PCB strip with ETL, CE and UL certified

Use 2835 SMD LED as light source with high brightness and large vier angle

Environment friendly, no UV, noinfrared, no radiation

Use high qualily LED

8pce LED/cutting section

Item Unit Data Item Unit Data
LED type / SMD 2835 LED quantity/m PCS 96
LED brand / Epistar or equivalent LED power dissipation/m W 15.9
Beam angle 2θ1/2 120 Strip power dissipation/m W 17.5
PCB type type 2 layer PCB/1+2oz copper 10mm Luminous flux±10% lm/m 2200
Length M 5 Efficacy lm/w 135
Protection degree IP IP20 Operating Voltage VDC 24
Tape / 3M 9495 200MP Operating current/m A 0.72
Color / WW/NW/CW Ta(ambient temperature) ℃ -20℃~60℃
CRI Ra ≥80 Tc(surface temperature) ℃ Max. 67
CCT 2700k 27S(2645-2805K) X=0.459 Y=0.412 115lm/w Heatsink [c㎡/m] 519
3000k 29S(2854-3026K) X=0.44 Y=0.403 115lm/w Warranty period year 3
4000k 41S(3897-4223K) X=0.38 Y=0.38 125lm/w Life time H 30000
5000k 50S(4900-5300K) X=0.346 Y=0.359 130lm/w

2, Layout

130lm Per Watt Indoor LED Strip Lights 2835 LEDs CRI90 24VDC Low Voltage

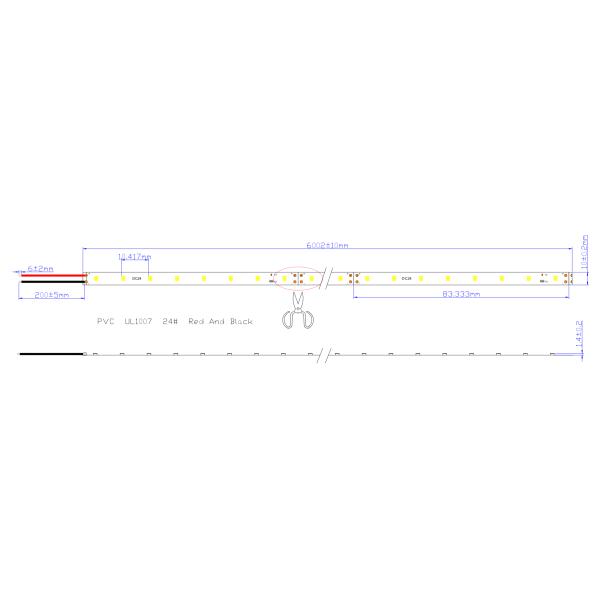

3, Outline drawing

130lm Per Watt Indoor LED Strip Lights 2835 LEDs CRI90 24VDC Low Voltage

4, Connection Diagram

130lm Per Watt Indoor LED Strip Lights 2835 LEDs CRI90 24VDC Low Voltage

5, Package

130lm Per Watt Indoor LED Strip Lights 2835 LEDs CRI90 24VDC Low Voltage
