V-2 Flame Resistant Outdoor LED Rope Lighting 6mm Wide Stable Reliability
V-2 Flame Resistant Outdoor LED Rope Lighting 6mm Wide Stable Reliability
V-2 Flame Resistant Outdoor LED Rope Lighting 6mm Wide Stable Reliability
V-2 Flame Resistant Outdoor LED Rope Lighting 6mm Wide Stable Reliability
Specifications
Brand Name :
TL
Model Number :
TL-SW06A/B
Certification :
CE,ROSH,UL
Place of Origin :
Shenzhen,China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
5000m/day
Delivery Time :
7-15 workdays
Packaging Details :
Carton
Light Source :
2835 SMD
Input voltage :
12V
Beam angle :
150°
CRI (Ra>) :
85
IP Rating :
IP68
Color :
white/red/green/blue/yellow /pink/purple
Dimension :
6*12mm
Lamp Body :
Silicone
Application :
Indoor/Outdoor Decoration
certification :
UL CE ROSH
Description

Ip68 Waterproof 12V Led Neon Light Silicone Neon Flex Rope 6mm Wide with CE UL

Product Description

  • In order to further upgrade products, improve product quality and product usage lifetime, our engineers devoted themselves to research, Our company decided to produce a new generation of silicone neon strips, Compared with the traditional PVC material, Silicone neon lights more soft, environmental , high temperature resistance, waterproof grade IP68, for indoor and outdoor decorative lighting. Because of soft texture, It can be any bent for 180 degrees, So it can make any shapes and sign easily. The advantages of silicone neon strips are self-evident.

Product features

  • Dot-free linear neon-like illumination;
  • Fabricated with Eco-friendly, UV-resistant silicone material;
  • V-2 flame resistance;
  • Flexible PCB with 2835 SMD LED technology;
  • 25mm cutting mark by each, much flexible on different length request;
  • Small size L6XW12mm, economical;
  • CE RoH, cULus Listed.​.

  • Beam angle: 120°.

  • Input voltage: 12VDC/24VDC.

  • Excellent lumen maintenance (3oz FPC).

  • IP68.

  • table reliability and anti-UV.

Application data

Maximum length①

10/15 meters

(32.8/49.2ft)
Ambient temperature range -25 ~ +50 °C
The temperature of module top 65 °C
Storage temperature range -40 ~ +70 °C
Certification CE/UL/ RoHS

Installation

U-type PC accessory to fix

Technical data

Product Name Nominal voltage③ Color temperature or Wavelength①② CRI①②

Typ.

Flux/meter(3.28ft)

①②

Typ.

Power/meter(3.28ft)①②
TL-SW06A/B(2835) 12/24 VDC 2700-5500 K >75 850~1100 lm 12 W
TL-SR06A/B(2835) 12/24 VDC 620-625 nm Red 300~350 lm 12 W
TL-SG06A/B(2835) 12/24 VDC 520-528 nm Green 210~230 lm 12 W
TL-SB06A/B(2835) 12/24 VDC 465-470 nm Blue 1100~1010 lm 12 W
TL-SY06A/B(2835) 12/24 VDC 590-596 nm Yellow 300~310 lm

12 W

① Tolerance range for optical and electrical data: ±15 %.

② All value @ ta=25℃.

③ Voltage tolerance range of the power supply: ±5 %.

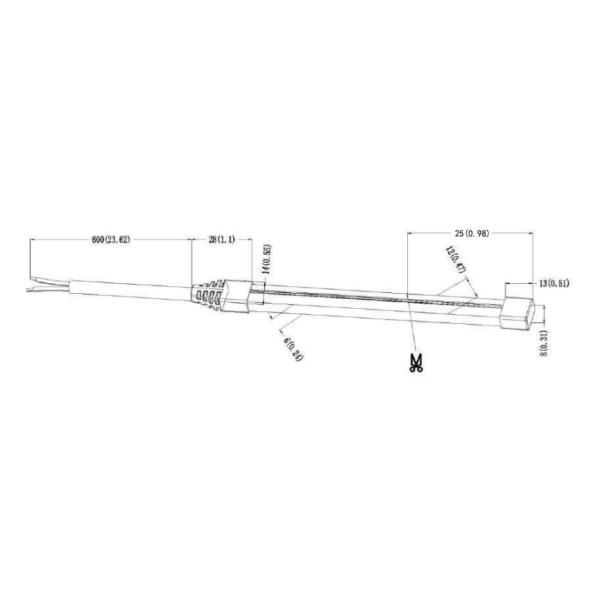

Product 2D drawing

  • 12VDC/24VDC product interior drawing

3 LEDs cut-able

V-2 Flame Resistant Outdoor LED Rope Lighting 6mm Wide Stable Reliability

6 LEDs cut-able

V-2 Flame Resistant Outdoor LED Rope Lighting 6mm Wide Stable Reliability

  • Product installation schematic diagram

V-2 Flame Resistant Outdoor LED Rope Lighting 6mm Wide Stable Reliability

Product sectional drawing

V-2 Flame Resistant Outdoor LED Rope Lighting 6mm Wide Stable Reliability

V-2 Flame Resistant Outdoor LED Rope Lighting 6mm Wide Stable Reliability

Product application

Product ⇒ Fix letter groove ⇒ Clip product ⇒ Actual result

V-2 Flame Resistant Outdoor LED Rope Lighting 6mm Wide Stable Reliability

Connect two products

Product ⇒ Cut the product based ⇒ Solder the wire ⇒ Actual result

on application requirement “+/+”, “-/-“

V-2 Flame Resistant Outdoor LED Rope Lighting 6mm Wide Stable Reliability

Benging direction

The maximum bending angle 360°V-2 Flame Resistant Outdoor LED Rope Lighting 6mm Wide Stable ReliabilityThe minimum bending radius: 15mm (0.59")

Light distribution

V-2 Flame Resistant Outdoor LED Rope Lighting 6mm Wide Stable Reliability

Packaging information

Product name

Product dimension

(L*W*H)

Carton dimension

(mm/inch)

Total length/carton

Gross

weight (kg)

RCC0GX06A/B(2835)

 5m*6mm*12mm (16.4ft*0.32"*0.47") 520*370*260 (20.5"*14.5"*10.2")

200m (656ft)

20

V-2 Flame Resistant Outdoor LED Rope Lighting 6mm Wide Stable Reliability
