120 Degree Beam Angle Wireless LED Strip Lights ETL RoHS And CE Certified
120 Degree Beam Angle Wireless LED Strip Lights ETL RoHS And CE Certified
Specifications
Brand Name :
TL
Model Number :
TL-FW28CE-IN98-CV80-10-24V-CCT
Certification :
CE RoSH UL
Place of Origin :
Shenzhen China
MOQ :
1000M
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30000M per month
Delivery Time :
2 weeks
Packaging Details :
Cartons
LED SMD :
2835
Color :
2200-5500K
Luminous Efficiency :
125~135lm/w
Voltage :
24VDC
Wattage :
19.62W/M
CRI :
80
Type :
Flex LED Strips
Lamp body material :
Copper
Description

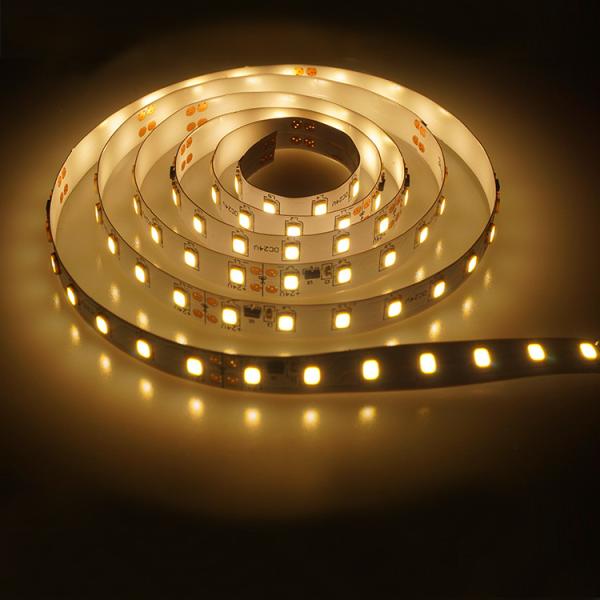

SMD2835 LED Strip Indoor LED Strip Lights 7LEDs Cutting 24VDC CRI80 120lm per watt

SMD2835

1, High luminous Efficiency 125~135lm/w

2, 98LEDs per meter, 7LEDs per cutting

3, 24DCV

4, Warranty 3 years

5, Beam angle 120°

6, 2 layer PCB/1+2OZ copper 10mm width

7, CRI≥80, lifetime 30000h

8, CCT/X.Y: 2300k 2700k 3000k 4000k 5000k 6000k

1, Features

High quality flexible PCB strip with ETL, RoHS and CE certified

Use 2835 SMD LED as light source with high brightness and large vier angle

Environment friendly, no UV, noinfrared, no radiation

Use high qualily LED

7pce LED/cutting section

Item Unit Data Item Unit Data
LED type / SMD 2835 LED quantity/m PCS 98
LED brand / Epistar or equivalent Sanan LED power dissipation/m W 19.62
Beam angle 2θ1/2 120 Strip power dissipation/m W 21.8
PCB type type 2 layer PCB/1+2oz copper 10mm Luminous flux±10% lm/m 3000
Length M 5 Efficacy lm/w 140
Protection degree IP IP20 Operating Voltage VDC 24
Tape / 9495 200MP Operating current/m A 0.91
Color / WW/NW/CW Ta(ambient temperature) ℃ -20℃~60℃
CRI Ra ≥80 Tc(surface temperature) ℃ Max. 67
CCT 2700k 27S(2645-2805K) X=0.459 Y=0.412 120lm/w Heatsink [c㎡/m] 654
3000k 29S(2854-3026K) X=0.44 Y=0.403 120lm/w Warranty period year 3
4000k 41S(3897-4223K) X=0.38 Y=0.38 135lm/w Life time H 30000
5000k 50S(4900-5300K) X=0.346 Y=0.359 135lm/w

2, Layout

120 Degree Beam Angle Wireless LED Strip Lights ETL RoHS And CE Certified

3, Outline drawing

120 Degree Beam Angle Wireless LED Strip Lights ETL RoHS And CE Certified

4, Connection Diagram

120 Degree Beam Angle Wireless LED Strip Lights ETL RoHS And CE Certified
