SMD 5050 Flexible RGBW RGB LED Rope Light Spool Waterproof With UL
SMD 5050 Flexible RGBW RGB LED Rope Light Spool Waterproof With UL
SMD 5050 Flexible RGBW RGB LED Rope Light Spool Waterproof With UL
SMD 5050 Flexible RGBW RGB LED Rope Light Spool Waterproof With UL
SMD 5050 Flexible RGBW RGB LED Rope Light Spool Waterproof With UL
SMD 5050 Flexible RGBW RGB LED Rope Light Spool Waterproof With UL
Specifications
Brand Name :
TL
Model Number :
TL-SW10CA/B
Certification :
CE,ROSH,UL
Place of Origin :
Shenzhen,China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
5000m/day
Delivery Time :
7-15 workdays
Packaging Details :
Carton
Part No :
TL-SW10CA/B
LED Qty/m :
108pcs
LED :
SMD5050
Materials :
Silicone
IP Grade :
IP67
Color :
RGB RGBW
Voltage :
DC12V/24V
Performance :
Stable reliability,UV and yellowish resistant
Cut Length :
28mm/56mm
certification :
UL CE ROSH
Description

SMD 5050 waterproof Led flexible RGB RGBW neon strip light with UL

Application

  • Can be Widely used in building outline decoration lighting, KTV decoration lighting, Car decoration lighting,

urban lighting and others decoration lighting​.

Product description

  • Product standard length: 5 meters(16.4ft).
  • Product can be fixed in the rugged place (smooth surface and bendable).
  • Beam angle: 150°.
  • Input voltage: 12VDC/24VDC.
  • Excellent lumen maintenance (3oz FPC).
  • 12VDC product: maximum length 5 meters (16.4ft).
  • 24VDC product: maximum length 10 meters (32.8ft).
  • Flexible cutting (the cut mouth sealed by silicone glue).
  • IP68.
  • Stable reliability and anti-UV.​

LED Type SMD-5050
Voltage 12V/24V
Color RGB/W/R/G/B/Y/A
Refresh Frequency 800 KB
Application Outdoor decoration light
IP rank IP20/IP65/IP68/IP67
IC Model P943
Wire 99.99% pure gold wire
Warranty 3 Years

SMD 5050 Flexible RGBW RGB LED Rope Light Spool Waterproof With UL

SMD 5050 Flexible RGBW RGB LED Rope Light Spool Waterproof With UL

Technical data

Part No light color light wavelength (nm) light angle (°) lumens (lm/m) light efficiency (lm/W) voltage (DC/V) power (W/M)

TL-SW10CA/B

 R 617 120 55.25 12.79 12/24

17.28
G 515 120 136.79 21.11 12/24
B 462 120 26.19 4.042 12/24


① Tolerance range for optical and electrical data: ±15 %.

② All value @ ta=25℃.

③ Voltage tolerance range of the power supply: ±5 %.

Maximum length①

10/15 meters

(32.8/49.2ft)
Ambient temperature range -25 ~ +50 °C
The temperature of module top 65 °C
Storage temperature range -40 ~ +70 °C
Certification CE/UL/ RoHS

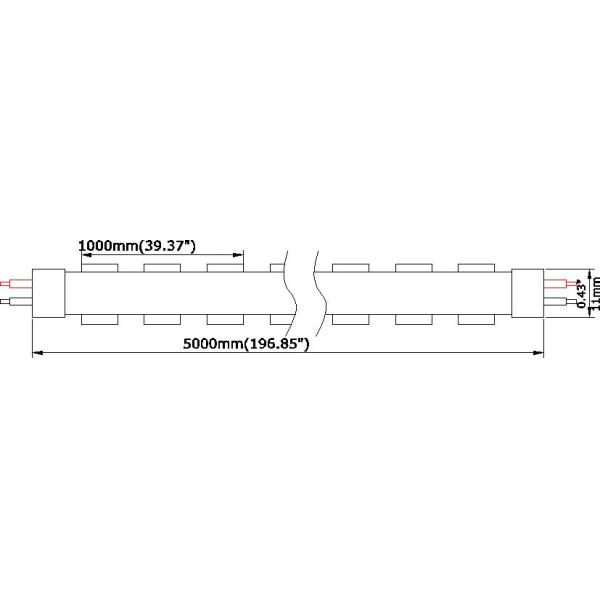

Product 2D drawing

  • 12VDC/24VDC product interior drawing


SMD 5050 Flexible RGBW RGB LED Rope Light Spool Waterproof With UL

  • Product installation schematic diagram

SMD 5050 Flexible RGBW RGB LED Rope Light Spool Waterproof With UL

Product sectional drawing


SMD 5050 Flexible RGBW RGB LED Rope Light Spool Waterproof With UL

Installation


SMD 5050 Flexible RGBW RGB LED Rope Light Spool Waterproof With UL



Benging direction

SMD 5050 Flexible RGBW RGB LED Rope Light Spool Waterproof With UL

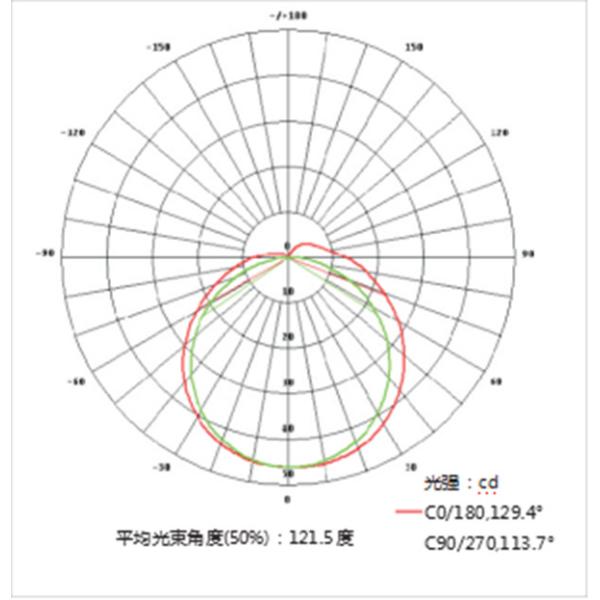

Light distribution

SMD 5050 Flexible RGBW RGB LED Rope Light Spool Waterproof With UL

Packaging information

Product name

Productd

dimension

(L*W*H)

Carton dimension

(mm/inch)

Total length/carton

Gross
weight (kg)

RCC0GX06A/B(2835)

 5m*10mm*17mm (16.4ft*0.39"*0.67")

390*390*325

(15.4"*15.4"*12.8")

60m (195ft)

15.5
