RF Receiver And Manual RGB LED RGBW Controller 12-36V DC Stand Alone
RF Receiver And Manual RGB LED RGBW Controller 12-36V DC Stand Alone
RF Receiver And Manual RGB LED RGBW Controller 12-36V DC Stand Alone
RF Receiver And Manual RGB LED RGBW Controller 12-36V DC Stand Alone
RF Receiver And Manual RGB LED RGBW Controller 12-36V DC Stand Alone
RF Receiver And Manual RGB LED RGBW Controller 12-36V DC Stand Alone
Specifications
Brand Name :
TL
Model Number :
TL-1009MS
Certification :
CE,ROSH,UL
Place of Origin :
Shenzhen,China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000pcs /week
Delivery Time :
7-15 workdays
Packaging Details :
Carton
Output Power :
4x(60-180)W
Output Current :
4x5A
Power Supply :
12-36VDC
Temperature range :
-20-+50°C
Relative humidity :
8% to 80%
Dimensions :
170x53.4x28mm
RF Remote Output :
RF signal
Power Supply of Remote :
3V(1xCR2025 battery)
Description

RF Receiver and Manual LED Controller RGB RGBW Controller 12-36V Stand alone UL CE Controller

Important: Read All Instructions Prior to Installation

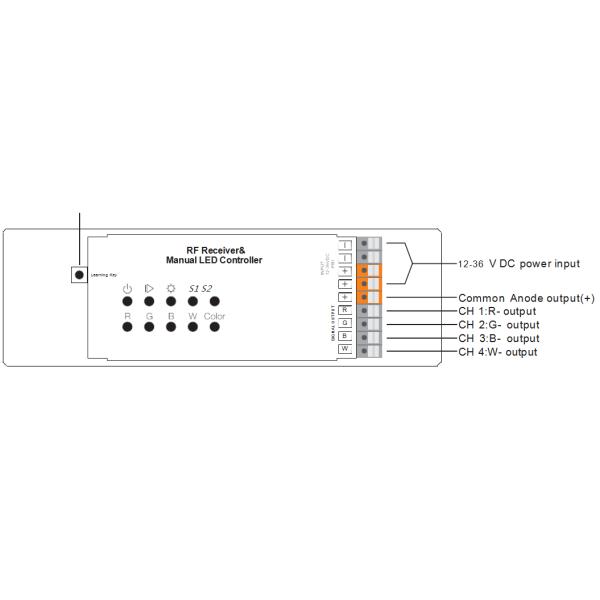

Function introduction

Learning Key:

Pairing with RF remote

Product Data

RF Receiver& Manual LED Controller

Output Power 4x(60-180)W
Output Current 4x5A
Power Supply 12-36VDC
Temperature range -20-+50°C
Relative humidity 8% to 80%
Dimensions 170x53.4x28mm

RF Remote

Output RF signal
Operation Frequency 869.5/916.5/434MHz
Power Supply 3V(1xCR2025 battery)
Operating temperature 0-40°C
Relative humidity 8% to 80%
Dimensions 136.3x38.9x10.7mm

RF Receiver And Manual RGB LED RGBW Controller 12-36V DC Stand Alone

Safety & Warnings

• DO NOT install with power applied to device.

• DO NOT expose the device to moisture.

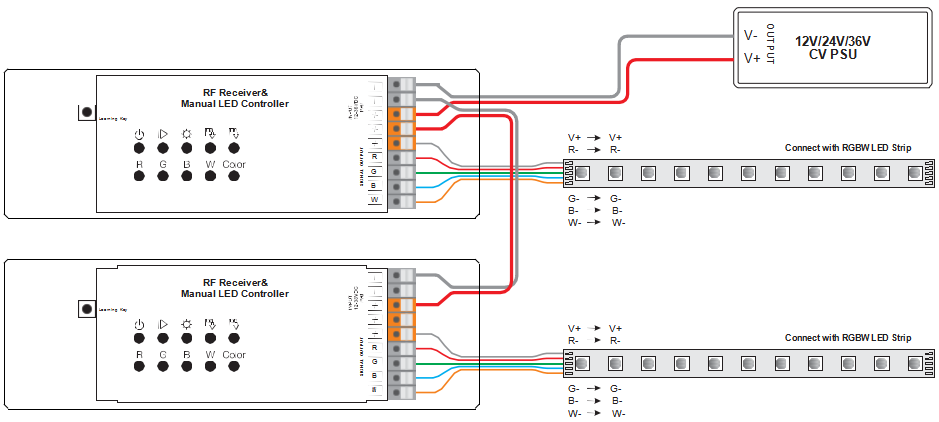

Wiring Diagram

RF Receiver And Manual RGB LED RGBW Controller 12-36V DC Stand Alone

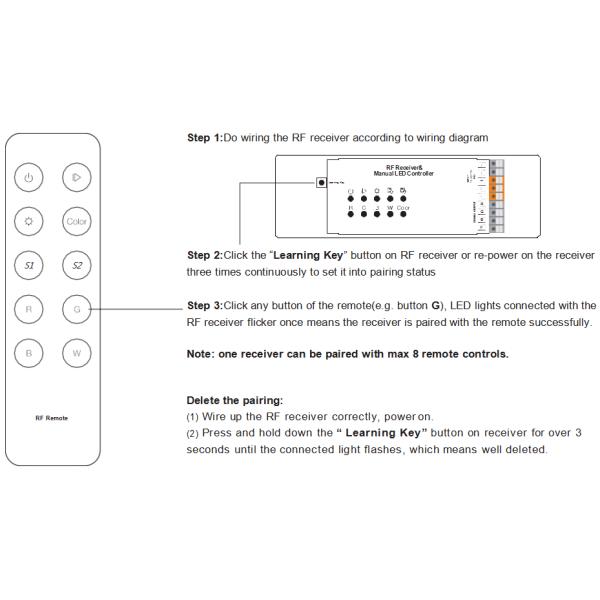

Pair with RF receiver

RF Receiver And Manual RGB LED RGBW Controller 12-36V DC Stand Alone

Built-in 10 color changing modes are as follows:

Mode 1: Any two colors of RGB mix fade-in & fade-out

Mode 2: RGB three colors mix fade-in & fade-out

Mode 3: RGB three colors mix fade-out & fade-in

Mode 4: RGB flash

Mode 5: RGB three colors fade-in & fade-out successively

Mode 6: RGB three colors fade-in successively

Mode 7: RGB three colors fade-out successively

Mode 8: RGB three colors jump changing successively
Mode 9: R&B two colors mix fade (R in B out), then G fade-in, then R&B mix fade (R out B in), then G fade-out

Mode 10: B fade-out, then G&B mix fade (G out B in), then R&G mix fade (R out G in), then R fade-in
