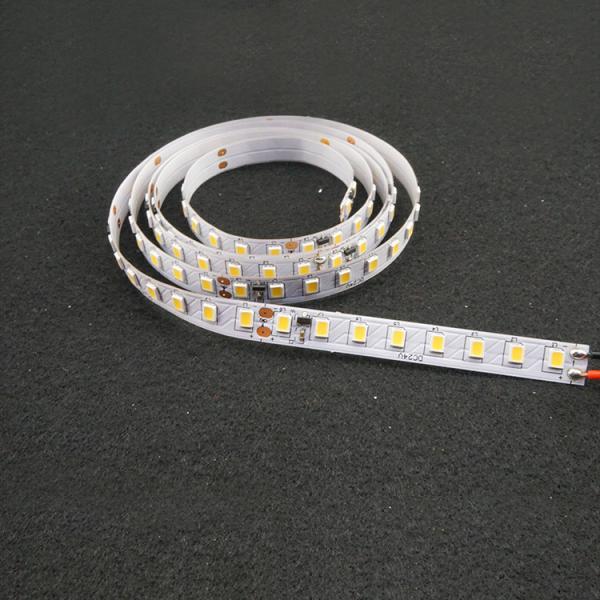

128pcs SMD2835 IP20 8LEDs Cutting Indoor LED Strip Lights 24VDC CRI90 130lm per watt
128pcs SMD2835 IP20 8LEDs Cutting Indoor LED Strip Lights 24VDC CRI90 130lm per watt
Specifications
Brand Name :
TL
Model Number :
TL-FW28HE-IN128-CV90-10-24V-CCT
Certification :
CE RoHS ETL
Place of Origin :
Shenzhen China
MOQ :
1000M
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30000M per month
Delivery Time :
2 to 3 weeks
Packaging Details :
Cartons
LED SMD :
SMD2835
Color :
2000-6500K
Luminous Efficiency :
130~135lm/w
Voltage :
24VDC
Wattage :
25W/M
CRI :
90
Type :
Flex LED Strips
Working lifetime(hour) :
50000h
Description

128pcs SMD2835 IP20 8LEDs Cutting Indoor LED Strip Lights 24VDC CRI90 130lm per watt

SMD2835

1, High luminous Efficiency 130~135lm/w

2, 128LEDs per meter, 8LEDs per cutting

3, 24DCV

4, Warranty 3 years

5, Beam angle 120°

6, 2 layer PCB/1+2OZ copper 10mm width

7, CRI≥90, lifetime 30000h

8, CCT/X.Y: 5000k 5500k 6000k 6500k

1, Features

High quality flexible PCB strip with ETL, RoHS and CE certified

Use 2835 SMD LED as light source with high brightness and large vier angle

Environment friendly, no UV, noinfrared, no radiation

Use high qualily LED

8pce LED/cutting section

Item Unit Data Item Unit Data
LED type / SMD 2835 LED quantity/m PCS 128
LED brand / Epistar or equivalent Sanan LED power dissipation/m W 22.5
Beam angle 2θ1/2 120 Strip power dissipation/m W 25
PCB type type 2 layer PCB/1+2oz copper 10mm Luminous flux±10% lm/m 3200
Length M 3 Efficacy lm/w 130
Protection degree IP IP20 Operating Voltage VDC 24
Tape / TIA806FG Operating current/m A 1.05
Color / WW/NW Ta(ambient temperature) ℃ -20℃~60℃
CRI Ra ≥90 Tc(surface temperature) ℃ Max. 67
CCT 2700k 27S(2645-2805K) X=0.459 Y=0.412 125lm/w Heatsink [c㎡/m] 750
3000k 29S(2854-3026K) X=0.44 Y=0.403 125lm/w Warranty period year 3
4000k 41S(3897-4223K) X=0.38 Y=0.38 135lm/w Life time H 30000
5000k 50S(4900-5300K) X=0.346 Y=0.359 135lm/w

2, Layout

128pcs SMD2835 IP20 8LEDs Cutting Indoor LED Strip Lights 24VDC CRI90 130lm per watt

3, Outline drawing

128pcs SMD2835 IP20 8LEDs Cutting Indoor LED Strip Lights 24VDC CRI90 130lm per watt

4, Connection Diagram

128pcs SMD2835 IP20 8LEDs Cutting Indoor LED Strip Lights 24VDC CRI90 130lm per watt

5, Package

128pcs SMD2835 IP20 8LEDs Cutting Indoor LED Strip Lights 24VDC CRI90 130lm per watt
