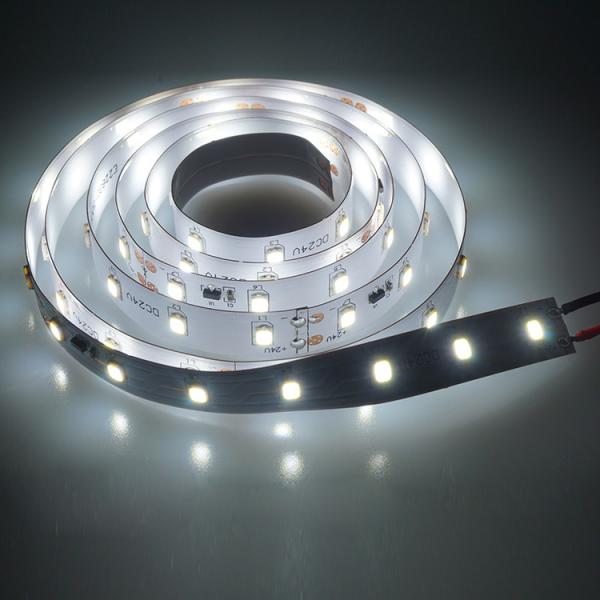

50000h Life Time Outdoor LED Strip Lights High Brightness Energy Saving
50000h Life Time Outdoor LED Strip Lights High Brightness Energy Saving
Specifications
Brand Name :
TL
Model Number :
TL-FW28HE-IN70-CV90-8-24V-30K
Certification :
CE RoHS ETL UL
Place of Origin :
Shenzhen China
MOQ :
1000M
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30000M per month
Delivery Time :
2-3 weeks
Packaging Details :
Cartons
LED SMD :
2835 LED
Color :
4000-6000K
Luminous Efficiency :
130-135lm/w
Voltage :
24VDC
Wattage :
16W/M
CRI :
90
Type :
Flex LED Strips
Lamp body material :
Copper
Description

50000h Life Time Outdoor LED Strip Lights High Brightness Energy Saving

SMD2835

High luminous Efficiency 130~135lm/w

70LEDs per meter, 7LEDs per cutting

24DCV

Warranty 3 years

Beam angle 120°

2 layer PCB/1+1OZ copper 8mm width

CRI≥90, lifetime 50000h

CCT/X.Y: 2700 3000k 4000k 5000k 6000k

1, Features

High quality flexible PCB strip with ETL UL RoHS and CE certified

Use 2835 SMD LED as light source with high brightness and large vier angle

Environment friendly, no UV, noinfrared, no radiation

Use high qualily LED

7pce LED/cutting section

Item Unit Data Item Unit Data
LED type / SMD 2835 LED quantity/m PCS 70
LED brand / Epistar or equivalent Sanan LED power dissipation/m W 15.12
Beam angle 2θ1/2 120 Strip power dissipation/m W 16.8
PCB type type 2 layer PCB/1+1oz copper 8mm Luminous flux±10% lm/m 2200
Length M 5 Efficacy lm/w 135
Protection degree IP IP20 Operating Voltage VDC 24
Tape / 3M 9495 200MP Operating current/m A 0.7
Color / WW/NW Ta(ambient temperature) ℃ -20℃~60℃
CRI Ra ≥90 Tc(surface temperature) ℃ Max. 67
CCT 2700k 27S(2645-2805K) X=0.459 Y=0.412 125lm/w Heatsink [c㎡/m] 504
3000k 29S(2854-3026K) X=0.44 Y=0.403 125lm/w Warranty period year 3
4000k 41S(3897-4223K) X=0.38 Y=0.38 130lm/w Life time H 50000
5000k 50S(4900-5300K) X=0.346 Y=0.359 135lm/w

2, Layout

50000h Life Time Outdoor LED Strip Lights High Brightness Energy Saving

3, Outline drawing

50000h Life Time Outdoor LED Strip Lights High Brightness Energy Saving

4, Connection Diagram

50000h Life Time Outdoor LED Strip Lights High Brightness Energy Saving

5, Package

50000h Life Time Outdoor LED Strip Lights High Brightness Energy Saving
