1220 WHT 4000K Silicone LED Neon Lumileds SMD 2835 DC24V IP67 5 Years Warranty

Quick Detail:

· Voltage: DC24V

· Neon Size: 12mm*20mm

· Bending Direction: Side bending (horizontal bending)

· Cutting Interval: 50mm

· Max Wattage: 10W/m

· CCT:3500K

· Max Run Length: 13m

· IP Rating: IP67

· Endcap Option: Injection, Silicone, Mechanical

· CE, RoHS, TUV, UL compliant

· 5 Year Warranty

Description:

IP67 protected, UV resistant, chemical resistant and DIY connectors for indoor & outdoor solutions. Very easy to cut & reconnect on site. -2-Step MacAdam bin and dot free lighting guarantee the most excellent performance over the rated lifetime.

Specifications:

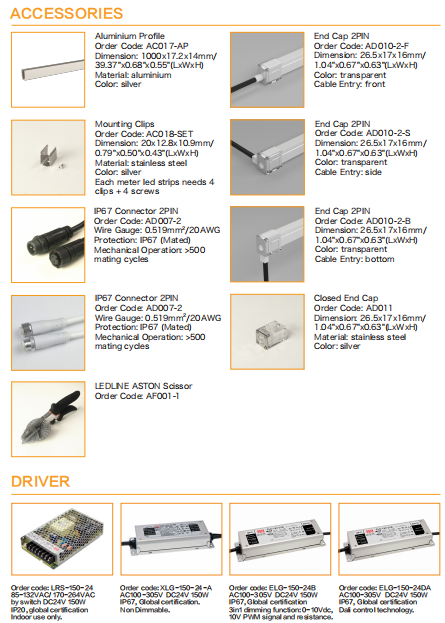

Download datasheet: LEDLINE ASTON 1212 WHT Datasheet.pdf

JRLite Linkedin: https://www.linkedin.com/company/jrlite (Neon Supplier from China)

Notices:

1.Max production length 30meters per reel, and the standard packaging is 10meters per reel.

2.Standard cable length is 30cm, if you need cable longer than 30cm, please mention us the required cable length.

3.Patented easy endcap achieves mechanical IP67 waterproof without any glue.

4. Please light it up for a quick check before installation. Bending diameter of ASTON 1220 WHT is 240mm, do not bend to side direction, or bend too sharp or twist. If bend it wrongly, PCB inside will be damaged and the lighting fixture will not turn on.

5. During installation, please make sure there are at least two workers to cooperate together and strictly follow the instruction manuals.

6. Warranty: All LED light are warranted to be free from defects in product itself for 5 years from the date of purchase. This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions

FAQ:

Commercial CE RoHS Reach UL Certificate Outdoor Underwater IP68 Waterproof

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: 2-4 weeks after payment.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available.
