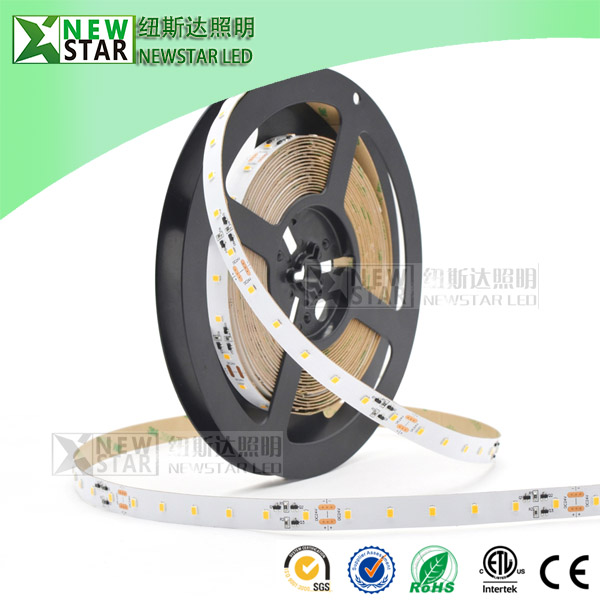

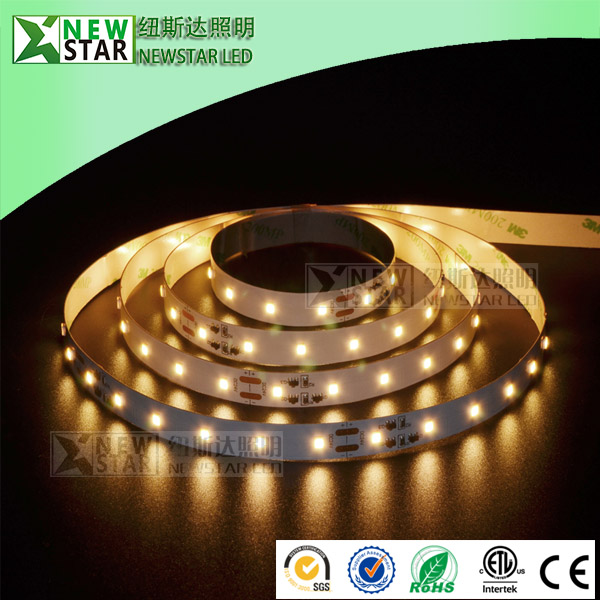

10m-15m 2835 constant current 120lm/w Samsung Super length dc24v 2835smd 60leds led strips for linear lighting design
10m-15m 2835 constant current 120lm/w Samsung Super length dc24v 2835smd 60leds led strips for linear lighting design
10m-15m 2835 constant current 120lm/w Samsung Super length dc24v 2835smd 60leds led strips for linear lighting design
10m-15m 2835 constant current 120lm/w Samsung Super length dc24v 2835smd 60leds led strips for linear lighting design
10m-15m 2835 constant current 120lm/w Samsung Super length dc24v 2835smd 60leds led strips for linear lighting design
10m-15m 2835 constant current 120lm/w Samsung Super length dc24v 2835smd 60leds led strips for linear lighting design
10m-15m 2835 constant current 120lm/w Samsung Super length dc24v 2835smd 60leds led strips for linear lighting design
10m-15m 2835 constant current 120lm/w Samsung Super length dc24v 2835smd 60leds led strips for linear lighting design
10m-15m 2835 constant current 120lm/w Samsung Super length dc24v 2835smd 60leds led strips for linear lighting design
10m-15m 2835 constant current 120lm/w Samsung Super length dc24v 2835smd 60leds led strips for linear lighting design
Specifications
Brand Name :
NEWSTAR
Model Number :
NSS-2835-60
Certification :
CE ROHS UL TUV SAA
Place of Origin :
China
MOQ :
100meters
Price :
1-10USD
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000meters/month
Delivery Time :
5-8 workdays
Packaging Details :
natural package
Product Name :
10-15M super length 2835smd led strips
Model No. :
NSS-2835-60
LED Type :
Epistar 2835smd
Voltage :
DC24V
Description

10m-15m 2835 constant current 120lm/w Samsung Super length dc24v 2835smd 60leds led strips for linear lighting design system

We Newstar's Super-long constant current LED strip is drived by only one side power supply 10-15m in one series. if two send with led driver, can be 20-30m in one line without brightness drop. The current through each LED is constant to keep same brightness from the beginning to the end of the strips. A power supply can drive such LED strips in continuous length of 10m/15m/20m/30m.

10M constant current 2835smd 60leds/m led strips

10m-15m 2835 constant current 120lm/w Samsung Super length dc24v 2835smd 60leds led strips for linear lighting design

10m-15m 2835 constant current 120lm/w Samsung Super length dc24v 2835smd 60leds led strips for linear lighting design

Technical Parameters

  • Product Name: 10M constant current 2835smd 60leds/m led strips
  • Model No: NSS-2835-60
  • Led Type: SMD2835
  • Led Quantity: 60Leds/M
  • Lumen/Meter: 1375-1548lm/Meter
  • Actual Power(w/m): 12.5W/Meter
  • CRI(Ra): >80
  • Max Length: 10Meters
  • PCB Width: 10mm
  • Voltage: DC24V
  • Cuttable size: 100mm/24V
  • Color: Warm white/Natural white/Cool white
  • CCT(K): 2700K~6000K
  • IP Grade: IP65/IP67
  • Ambient Temperature: -25℃ ~ +45℃
  • Warranty: 5-year or 30000hr whichever comes first
  • Length: 10Meter/Roll

15M constant current 2835SMD 60leds/m led strips

10m-15m 2835 constant current 120lm/w Samsung Super length dc24v 2835smd 60leds led strips for linear lighting design

10m-15m 2835 constant current 120lm/w Samsung Super length dc24v 2835smd 60leds led strips for linear lighting design

Technical Parameters

  • Product Name: 15M constant current 2835 60leds/m led strip
  • Model No: NSS-2835-60
  • Led Type: SMD2835
  • Led Quantity: 60Leds/M
  • Lumen/Meter: 1176-1324lm/Meter
  • Actual Power(w/m): 10.5W/Meter
  • CRI(Ra): >80
  • Max Length: 15Meters
  • PCB Width: 10mm
  • Voltage: DC24V
  • Cuttable size: 100mm/24V
  • Color: Warm white/Natural white/Cool white
  • CCT(K): 2700K~6000K
  • IP Grade: IP65/IP67
  • Ambient Temperature: -25℃ ~ +45℃
  • Warranty: 5-year or 30000hr whichever comes first
  • Length: 15Meter/Roll

10-15M Super length constant current 2835smd led strips application

1. Architectural decorative lighting
2. Archway, canopy and bridge edge lighting
3. Amusement park, theater and aircraft cabin mood lighting
4. Emergency hallway lighting
5. Auditorium walkway lighting
6. Stairway accent lighting
7. Concealed lighting
8. Backlighting for signage letters
9. Channel letter lighting
10.Emergency exit path lighting
11. Cove lighting

10m-15m 2835 constant current 120lm/w Samsung Super length dc24v 2835smd 60leds led strips for linear lighting design

10m-15m 2835 constant current 120lm/w Samsung Super length dc24v 2835smd 60leds led strips for linear lighting design10m-15m 2835 constant current 120lm/w Samsung Super length dc24v 2835smd 60leds led strips for linear lighting design

10M constant current 2835 60leds/m led strip

10m-15m 2835 constant current 120lm/w Samsung Super length dc24v 2835smd 60leds led strips for linear lighting design

Technical Parameters

  • Product Name10M constant current 2835 60leds/m led strip
  • Model NoSK-ST2Q60V24-c
  • Led TypeSMD2835
  • Led Quantity60Leds/M
  • Lumen/Meter1375-1548lm/Meter
  • Actual Power(w/m)12.5W/Meter
  • CRI(Ra)>80
  • Max Length10Meters
  • PCB Width10mm
  • VoltageDC24V
  • Cuttable size100mm/24V
  • ColorWarm white/Natural white/Cool white
  • CCT(K)2700K~6000K
  • IP GradeIP65/IP67
  • Ambient Temperature-25℃ ~ +45℃
  • Warranty5-year or 30000hr whichever comes first
  • Length10Meter/Roll
