Single Sided 94v0 30W LED Printed Circuit Board Aluminum Plate
Single Sided 94v0 30W LED Printed Circuit Board Aluminum Plate
Specifications
Brand Name :
Yizhuo
Model Number :
single-side 05
Certification :
CE,ROHS,UL
Place of Origin :
China
MOQ :
2PCS
Payment Terms :
T/T, Western Union
Delivery Time :
10-12 work days
Packaging Details :
Vacuum Package+ Good quality carton box
Voltage :
165-265V
Copper Thickness :
0.5oz-2oz
Base Material :
aluminum
Min. Hole Size :
0.20mm
Product name :
led pcb board
Type :
Electronic Board
Description

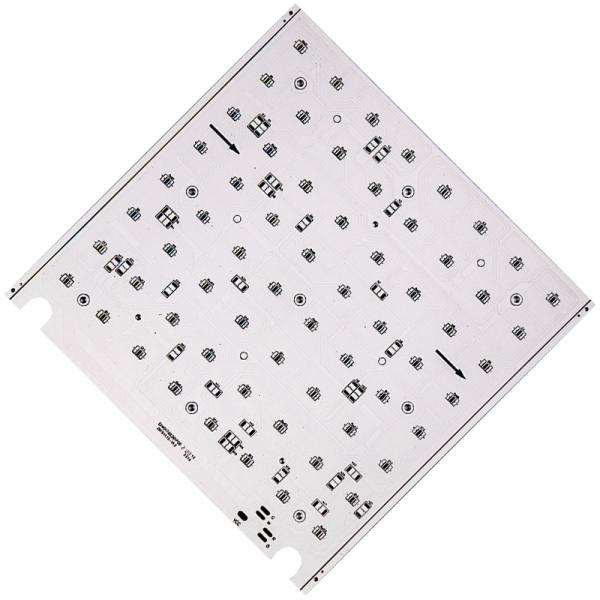

Single Sided 94v0 30W LED Printed Circuit Board Aluminum Plate

30W LED Aluminum Plate single-side 94v0 PCB Board For Led bulbs light

A thin layer of thermally conductive but electrically insulating dielectric is laminated between a metal base and a copper foil. The copper foil is etched into the desired circuit pattern and the metal base draws heat away from this circuit through the thin dielectric.
Aluminum PCB is a unique metal-based copper clad laminate; it has good thermal conductivity, electrical insulation and machining performance. Aluminum PCB market mostly Fuchs Wright aluminum substrate. Common in the LED lighting products.
Aluminum PCB is one of metal-based pcb, including copper foil, thermal insulating layer and metal substrate, its structure divide into three layers:

  1. Circuit layer: the equivalent of an ordinary PCB, copper thickness from 1oz to 10oz.
  2. Insulation layer: Insulation is a layer of thermal insulating material with low thermal resistance. Thickness: 0.003 "to 0.006" inch is the aluminum pcb core technology.
  3. Based Layer: a metal substrate, usually aluminum or copper may be chosen.
Item Capability
Layers 1-30
Thicker Copper 1-6OZ
Products Type

HF(High-Frequency)&(Radio Frequency) board, Impedance controlled board , HDI board ,


BGA& Fine Pitch board
Solder Mask Nanya&Taiyo ;LPI & Matt Red, green, yellow,white, blue,black.
Base material FR4(Shengyi China,ITEQ, KB A+,HZ), HI-TG, FR06, Rogers,Taconic,Argon and so on
Finished Surface Conventional HASL,Lead-free HASL,Falsh Gold, ENIG (Immersion Gold)OSP(Entek), Immersion Tin,ImmersionSilver,Hard Gold
Selective Surface Treatment

ENIG(immersion Gold)+OSP, ENIG(immersion Gold)+Gold Finger,Flash Gold +Gold Finger,


immersion Silver+ Gold Finger, Immersion Tin+Gold Finger
Technical Specification Minimum line width/gap:3.5/4mil(laser drill)
Minimum hole size:0.15mm(mechanical drill)/4mil(laser drill)
Minimum Annular Ring: 4mil
Max Copper thickness: 6OZ
Max Production size:900×1200mm
Board Thickness:D/S: 0.2-7.0mm, Multilayers:0.40-7.0mm,
Min Solder Mask Bridge:0.08mm
Aspect ratio: 15:1
Plugging Visa capability: 0.2-0.8mm
Tolerance Plated holes Tolerance:0.08mm(min±0.05)
Non-plated hole tolerance:0.05min(min+0/-0.05mm or +0.05/-0mm)
Outline Tolerance:0.15min(min±0.10mm)
Functional test :
Insulating resistance : 50 ohms (mormality)
Peel off strength: 1.4N/mm
Thermal Stress test :2650c,20 seconds
Solder mask hardness:6H
E-Test voltage :500V+15/-0V 30S
Warp and Twist: 0.7% (semiconductor test board≤0.3% )
