High Bright 25W 6500K DC AC Pure White LED Vinyl Underwater 12v Swimming Pool Lights
Product details
1. Working Voltage:Must use AC12V coil transformer.
2. Private Mode products.Support ODM&OEM.
3. Shinning angle:120°.
4. Vinyl pool lights Supply Power pass CE certified.
5. Anti-UV PC cover, excellent yellowing resistance, and durable
6. Environmental ABS material shell.
Product Features

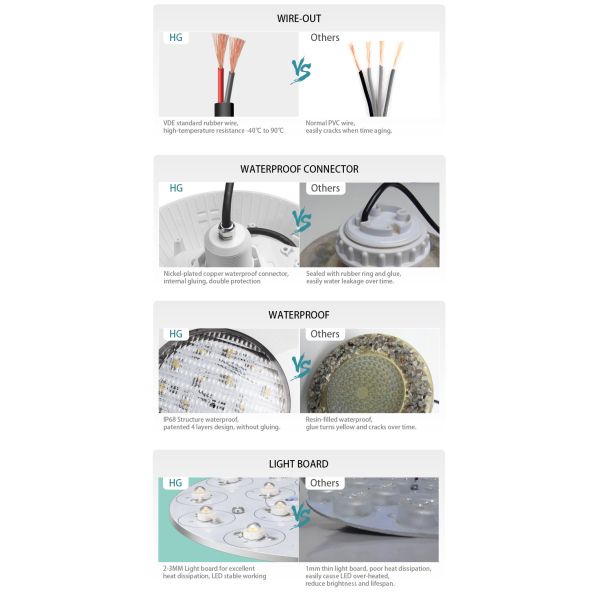

1. LED vinyl pool light has VED standard waterproof cable ,better waterproof and anti-aging ability with pure copper wire.
2. Nickel plated brass PG7 connector,good waterproof and anti-corrosion.
3. LED pool lights china are structure waterproof without glue ,color changing <3%.
4. White PC back cover ,High tension waterproof silicone ring.
5. Patented 4-layers waterproof structure, more stable than resin-filled pool lights.
Specification
HG-PL-18X3W-V1 | ||||||||
Lamp paramater | Material | ABS + Transparent PC cover | ||||||
Light dimension | Φ290×150.6mm | |||||||
Input voltage | AC12/DC12V | |||||||
Wattage | 25W±10% | |||||||
Light lumen | 1750LM±10% | |||||||
Halogen replacement | 150W | |||||||
Beam angle | 120° | |||||||
BASE | Wire out | |||||||
CCT | Pure White: 6500±10% Warm White:3000K±10% costomized/RGB | |||||||
Specifics | Operating Temperature (℃) | -20~40℃ | ||||||
IP Rating | IP68 | |||||||
Certificate | CE, ROHS,FCC, IP68,VDE | |||||||
Life-span | 50,000 hours | |||||||
Warranty | 2 Years | |||||||
!!! Remarks | Connect coil transformer | must be coil transformer | ||||||
Waterproof ring of housing | must do right to get IP68 | |||||||
Test position | LED Surface Mounted Swimming Pool Light(Min) | |||||||
Working temperature 28℃ | Working temperature 40℃ | |||||||
Underwater test time(Min) | 480 | 480 | ||||||
LED edge temperature(℃) | 73 | 73 |
Product Size
Installtion
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Vinyl Pool lights Led Must be 8 hours aging test.
3. Pool light Viny Finished products all passed 30 steps quality inspection
4. IP68 structure waterproof, can long time use underwater.
5. Constant current driver, comply with CE & EMC standard.
Application
Led Vinyl Pool Lights widely used for underwater lighting in film pools, hot spring pools, garden pools, etc.
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after getting your inquiry. If you are urgent to get the prices,
please call us or tell us in your email so that we will give priority to your inquiry.
2, Q: Do you accept the OEM&ODM?
A: Yes, OEM or ODM service are available.
3, Q: May I get samples to test quality and how long can I get them?
A: Yes, quote of the sample is the same as a normal order and can be ready in 3-5 days.
4, Q: What is the MOQ?
A: One piece is OK. Because any order is from the sample.
5, Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get our full attention. It’s our great honor to cooperate with you.
