Specifications
Brand Name :
Birmate
Model Number :
HG-PL-18x3W-C2
Certification :
CE, ROHS,FCC, IP68,VDE
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiation
Payment Terms :
Paypal,L/C,T/T,etc.
Supply Ability :
50000 pcs per month
Delivery Time :
5-7 working days
Packaging Details :
1pcs in a box,10 pcs/CTN
Working voltage :
AC/DC12 V
IP Rank :
IP68 waterproof
LED Color :
Warm White color
Color temperature :
3000K±10%/6000K±10%
Wattage :
25W±10%
Warranty :
2 years
Description

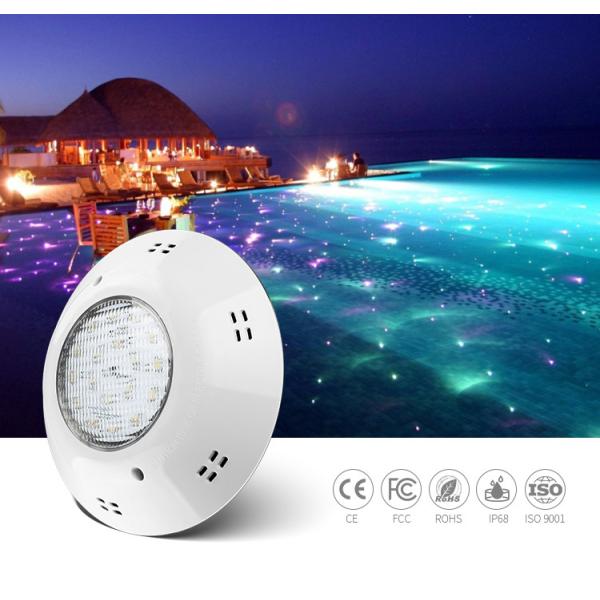

IP68 Waterproof Wall Mounted 18W Swimming Pool Led Lights Underwater Dimmable

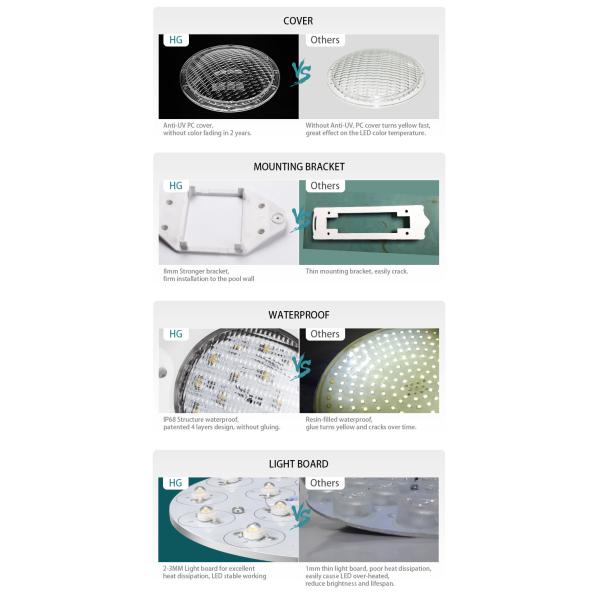

Product details

1. Anti-UV PC cover, excellent yellowing resistance, and durable

2. Environmental ABS material shell, 7 colors for optional.

3. 316L Stainless steel material base shell, great heat-dissipation and corrosion-resistant.

4. Engineering ABS material+ANTI UV PC cover,no yellowing or dazzling for two years.

5. RGB Switch control and synchronous control are the best selling control in Heguang.

IP68 Waterproof Wall Mounted  18W  Swimming Pool Led Lights Underwater Dimmable

Specification

HG-PL-18X3W-C2
Lamp paramater Material ABS + Transparent PC cover
Light dimension Φ290×49.5mm
Input voltage AC12/DC12V
Wattage 25W±10
Light lumen 1750LM±10
Halogen replacement 150W
Beam angle 120°
BASE Wire out
CCT Pure White: 6500±10% Warm White:3000K±10% Costomized/RGB
Specifics Operating Temperature () -20~40
IP Rating IP68
Certificate CE, ROHS,FCC, IP68,VDE
Life-span 50,000 hours
Warranty 2 Years
!!! Remarks Connect coil transformer must be coil transformer
Waterproof ring of housing must do right to get IP68
Test position LED Surface Mounted Swimming Pool Light(Min)
Working temperature 28 Working temperature 40
Underwater test time(Min) 480 480
LED edge temperature() 70 73

Product Features

1. Constant current driver, comply with CE & EMC standard.

2. VDE standard rubber wire, connected with IP68 nickel-plated copper connector.

3. High bright and energy saving imported LED chips, low light decay.

4. Copper nickel-plated PG7 waterproof connector + VDE waterproof wire, pure copper core wir

5. Nylon+fiber plastic,good toughness and anti-aging ability.

6. 8mm thickness bracket with screws fixation at 2 end,more fastness.

IP68 Waterproof Wall Mounted  18W  Swimming Pool Led Lights Underwater Dimmable

Advantage

1. Swimming pool light Reliable quality with 100% 10m depth waterproof test.

2. Super bright led pool lights Must be 8 hours aging test.

3. Finished products all passed 30 steps quality inspection

4. IP68 structure waterproof ,can long time use underwater.

5. Constant current driver, comply with CE & EMC standard.

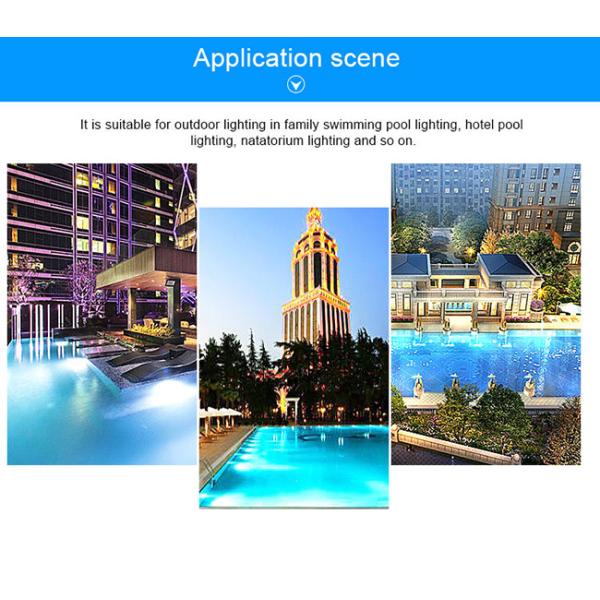

Application

Surface mounted pool lights application: Concrete pool ,Vinyl pool, Outdoor Swimming Pool.

family pool,hotel pool ,underwater etc.

IP68 Waterproof Wall Mounted  18W  Swimming Pool Led Lights Underwater Dimmable

Packing List

Item

HG-PL-18x3W-C2

Product weight

1080G

color box size

185×185×118mm

Carton/pcs

20pcs/Carton

Carton size

610x410x410mm

Carton weight

26.8KG

Some tips for you

Q1: How to choose the right LED energy saving lamps?

Low watage with high Lumen. This will save more electricity bill.

Q2: What is the advantages of LED?

Environmental friendly, Energy saving and Long lifespan.

Q3: The key factor that influence LED lifespan.

Temperature: It requires that junction temperature of LED chip should be ≤120℃,

so the center temperature at the LED bottom of light board should be ≤ 80 ℃.

Q4: Why choose us?

1. Lower wattage with high Lumen and more energy-efficient.

2. All lamps are self-developed patent products.

3. IP68 structure waterproof without glue, and lamps disspate heat through structure.

4. According to the LED characteristic, the center temperature at the LED bottom of light board must be controlled strictly( ≤ 80 ℃).

5. High quality driver of lamps to ensure the long lifespan.

6. All products have passed CE, ROHS, FCC, IP68, and our Par56 pool light have got UL certification.

7. All products need to pass 30 steps QC inspection, the quality has the guarantee, and the faulty rate is less than three per thousand .
