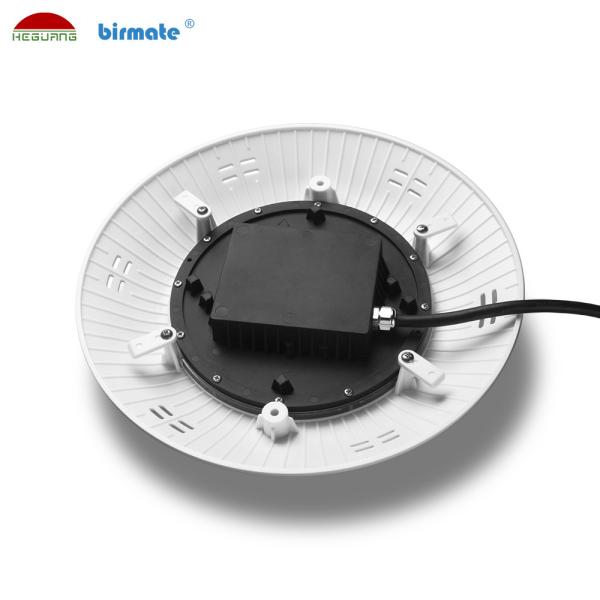

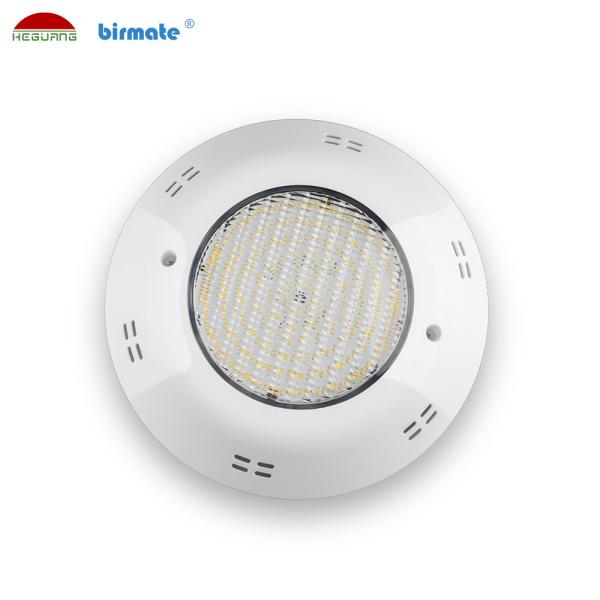

Surface Mount Led Light 18W IP68 Waterproof LED Lights Underwater Spot Light
Surface Mount Led Light 18W IP68 Waterproof LED Lights Underwater Spot Light
Surface Mount Led Light 18W IP68 Waterproof LED Lights Underwater Spot Light
Surface Mount Led Light 18W IP68 Waterproof LED Lights Underwater Spot Light
Surface Mount Led Light 18W IP68 Waterproof LED Lights Underwater Spot Light
Surface Mount Led Light 18W IP68 Waterproof LED Lights Underwater Spot Light
Specifications
Brand Name :
Birmate
Model Number :
HG-PL-18W-C1
Certification :
CE, ROHS,FCC, IP68,VDE
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiation
Payment Terms :
Paypal,L/C,T/T,etc.
Supply Ability :
50000 pcs per month
Delivery Time :
5-7 working days
Packaging Details :
1pcs in a box,10 pcs/CTN
working voltage :
AC12/DC12V
LED Color :
White/Red/Green/Blue/RGB
Power :
18W±10％
IP rank :
IP68
Luemn :
1400LM±10％
Warranty :
2 Years
Description

Surface Mount Led Light 18W IP68 Waterproof LED Lights Underwater Spot Light

Product details

1. IP Rate: IP68 Structural waterproof.

2. Anti-UV PC cover, excellent yellowing resistance, and durable

3. Environmental ABS material shell, 7 colors for optional.

4. Nylon+Fiber material base shell, good toughness and aging-resistant

5. RGB Switch control and synchronous control are the best selling control in Heguang.

Surface Mount Led Light 18W IP68 Waterproof LED Lights Underwater Spot Light

Product Features

1. 18w swimming pool lights has transparent PC cover, uniform lighting no dazzing.

2. Engineering ABS material,multiple color for option.

3. Waterproof lights for swimming pool has high tension waterproof silicone ring.

4. QC led surface mounted pool lights with Nylon+fiber plastic back cover, good toughness and anti-aging ability;

5. 2-3MM aluminum light board for excellent heat dissipation, 2.0W/(m.k) Thermal conductivity.

Specification

HG-PL-18W-C1
Lamp paramater Material ABS + Transparent PC cover
Light dimension Φ290×49.5mm
Input voltage AC12/DC12V
Wattage 18W±10％
Light lumen 1400LM±10％
Halogen replacement 120W
Beam angle 120°
BASE Wire out
CCT

Pure White: 6500±10%

Warm White:3000K±10% costomized
Wave Length (nm) R: 621-625nm
G: 518-520nm
B: 464-467nm
Specifics Operating Temperature (℃) -20~40℃
IP Rating IP68
Certificate CE, ROHS,FCC, IP68,VDE
Life-span 50,000 hours
Warranty 2 Years
!!! Remarks Connect coil transformer must be coil transformer
Waterproof ring of housing must do right to get IP68
Test position LED Surface Mounted Swimming Pool Light(Min)
Working temperature 28℃ Working temperature 40℃
Underwater test time(Min) 480 480
LED edge temperature(℃) 67 70

LED swimming pool light compared to others

Surface Mount Led Light 18W IP68 Waterproof LED Lights Underwater Spot Light

Advantage

1. Reliable quality with 100% 10m depth waterproof test.

2. Concrete swimming pool lamp must be 8 hours aging test.

3. Finished products all passed 30 steps quality inspection

4. IP68 structure waterproof ,can long time use underwater.

5. Constant current driver, comply with CE & EMC standard.

LED swimming pool light all passed 30 steps quality control , 100% waterproof at 10m depth, 8 hours LED agening test, 100% inspection before deliver.

Application

Surface mounted pool lights application: Concrete pool ,Vinyl pool ,Outdoor Swimming Pool ,family pool,hotel pool ,underwater etc.

Surface Mount Led Light 18W IP68 Waterproof LED Lights Underwater Spot Light

Packing List

Item HG-PL-105S5-C1-WW
Product weight 110G
color box size 185×185×118mm
Carton/pcs 20pcs/Carton
Carton size 610x410x410mm
Carton weight 26.8KG

FAQ

1. Q: When can I get the price?

A: We usually quote within 24 hours after got your inquiry. If you are urgent to get the prices,

please call us directly or leave us the messge ,we will give priority to your inquiry.

2. Q: May I get samples to test quality and how long can I get them?

A: Yes, samples can be ready in 3-5 days.

3. Q: What is the MOQ?

A: NO MOQ, the more you order ,the cheaper price you will get .

4. Q: Can you accept small trial order?

A: Yes

5. Q: Do you accept the OEM&ODM?

A: Yes, OEM/ODM acceptable.

6.Q:what's the RGB control you have?

A: Patent design RGB 100% synchronous control ,switch control ,external control ,wifi control ,DMX512 control,etc.
