Specifications
Brand Name :
Birmate
Model Number :
HG-UL-5W-SMD-R-12V
Certification :
CE, RoHs, FCC, IP68,IK10
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, PayPal
Supply Ability :
50000 pcs per month
Delivery Time :
5-7 working days
Packaging Details :
Standard Export Carton Box
Lifespan :
50000H
Beam angle :
15°/30°/45°/60°
Led Chip :
Cree
IP Rank :
IP68
Lamp body material :
SS316L body+tempered glass cover+VDE rubber cable
Wattage :
5W±1W
Description

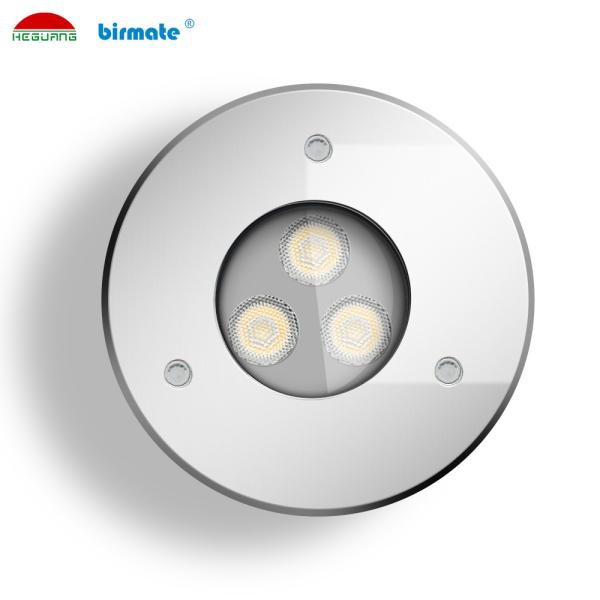

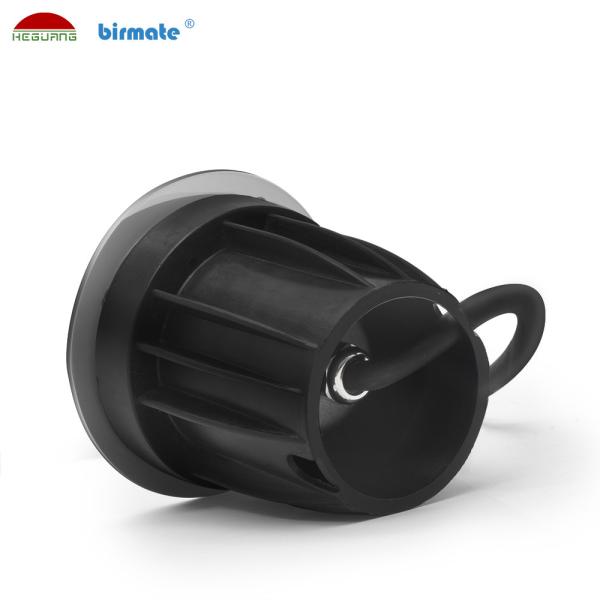

5W 12v IP68 6500K 316( Stainless Steel Waterproof Underwater Swimming Pool Lights

Product details

1. IP68 Structure waterproof, all products succeeded in 10m deep water testing before delivery.

2. Grounding fixing method default: aluminum grounding pole (plastic grounding pole optional).

3. Lamp succeeded in the IES and Temperature rise test.

4. Underwater spot light, durable and project used.

5. Led Swimming pool light for pool fountain waterfall used.

5W 12v  IP68 6500K 316( Stainless Steel Waterproof Underwater Swimming Pool Lights

Product Features

1. Led pool lighting is used for pond, pool, waterfall.

2. Pool lights led underwater adjustable angle led underwater light for pool

3. 316 screws are riveted on the surface cover, good looking and won't loosen.

4. Integrated bead lens with uniform lighting ,no dazzling,light transmittance >85%.

5. Constant current driver, high efficiency>90%, assure the LED stable working without input fluctuation.

Specification

HG-UL-5W-SMD-R-12V
Lamp paramater Material SS316L body+tempered glass cover+VDE rubber cable
length Φ98×88mm
Input voltage AC/DC12V
Constant Driver yes
Over-current Protection yes
Wattage 5W±1W
Light lumen 420LM±10
Beam angle 15°/30°/45°/60°
CCT Pure White: 6500K±10% Warm White:3000K±10% costomized
Specifics Operating Temperature () -20~40
IP Rating IP68
Certificate CE, RoHS,FCC,IP68,IK10
Life-span 50,000 hours
Warranty 2Years
Test position LED Underwater light (Min)
Working temperature 28 Working temperature 40
Underwater test time(Min) 480 480
LED edge temperature() 53 62

Product Size

5W 12v  IP68 6500K 316( Stainless Steel Waterproof Underwater Swimming Pool Lights

5W 12v  IP68 6500K 316( Stainless Steel Waterproof Underwater Swimming Pool Lights

Advantage

1. Reliable quality with 100% 10m depth waterproof test.

2. Finished products all passed 30 steps quality inspection

3. Good looking stamping SS316 rivet screws, more stable, never fall off.

4. Good looking with rivet screw and cover nut assembly, longer lifespan.

5. Pool light underwater must be 8 hours aging test and provide 2 Years warranty.

6. Thickened aluminum board :2-3mm, better heat dissipation with the conductivity :2.0W/(m.k).

LEDunderwater pool light all passed 30 steps quality control , 100% waterproof at 10m depth ,

8 hours LED agening test,100% inspection before deliver.

Application

Lights swimming pool widely used in cement swimming pools, hot spring pools, garden pools

and other underwater lighting.

5W 12v  IP68 6500K 316( Stainless Steel Waterproof Underwater Swimming Pool Lights

Packing List

Item HG-UL-5W-SMD-R-12V
Product weight 510G/PCS
color box size 625×380×325mm
Carton/pcs 50pcs/Carton
Carton size 610x410x410mm
Carton weight 28KG/CTN

FAQ

1. Q: When can I get the price?

A: We usually quote within 24 hours after got your inquiry. If you are urgent to get the prices,

please call us or tell us your email, so that we will give priority to your inquiry.

2. Q: Do you accept the OEM&ODM?

A: Yes, OEM or ODM service are available.

3. Q: May I get samples to test quality and how long can I get them?

A: Yes, quote of sample is same as normal order and can be ready in 3-5 days.

4. Q: What is the MOQ?

A: NO MOQ, the more you order ,the cheaper price you will get.

5. Q: Can you accept small trial order?

A: Yes, no matter large or small trial order, your needs will get our full attention. It’s our great honor to cooperate with you.

6.Q: How many pieces of lamp can connect with one RGB synchronous controller?

A: It doesn’t depend on the power. It depend on quantity, maximum is 20pcs. If it plus the amplifier, it can plus 8pcs amplifier. Totally the quantity of led par56 lamp is 100pcs. And RGB Synchronous controller is 1 pcs, amplifier is 8pcs.
