Specifications
Brand Name :
birmate
Model Number :
HG-UL-12W-SMD-R
Certification :
FCC,CE, RoHS,IP68,IK10
Place of Origin :
China shenzhen
MOQ :
1 pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, PayPal.
Supply Ability :
50000 pcs per month
Delivery Time :
5-7 working days.
Packaging Details :
Standard Export Carton Box
cable length :
1M
Lumen :
1100LM
Current :
550ma
power :
12W
model :
Private mould product
Description

DC24V 316L Recessed underwater lamp led Underwater light

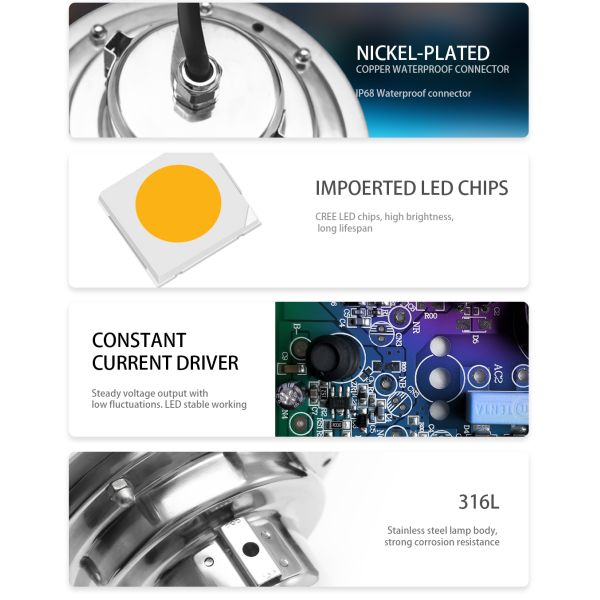

LED Underwater Light Features:

● SS316L material,lamp body thickness:0.8mm,surface ring thickness:2.5 mm;

● Transparent tempered glass,thickness :8.0mm;

● VDE rubber cable ,cable length :1M

● IP68 structure waterproof

● Recessed installation;

● Constant current driver circuit design,DC24V input power supply

● SMD3030 CREE LED,white/warm white/red/blue/red etc.

● Beam angle:15°/30°/45°/60°;

● 2 years warranty

Model

HG-UL-12W-SMD-R

Electrical Voltage DC24V
Current 550ma
Wattage 12W±10%
LED LED chip

SMD3030LED(CREE)

LED QTY 12PCS
CCT

6500K±10%/4300K±10%/3000K±10%

Lumen 1100LM±10%

Certification

FCC,CE, RoHS,IP68,IK10

DC24V SS316L Recessed Led Underwater Lamp 1100LM Outdoor

DC24V SS316L Recessed Led Underwater Lamp 1100LM Outdoor

DC24V SS316L Recessed Led Underwater Lamp 1100LM Outdoor

Recessed underwater lamp All passed 30 steps quality control , 100% waterproof at 10m depth,

8 hours LED agening test,100% inspection before deliver.

1.OEM/ODM acceptable

2. Waterproof wire design ,prevent the water into the wire

3.Thickened aluminum board :2-3mm,super good heat dissipation,heat conductivity :2.0W/(m.k)

4. Integrated bead lens,uniform lighting without dazzling

5.Over temperature protection function

DC24V SS316L Recessed Led Underwater Lamp 1100LM Outdoor

DC24V SS316L Recessed Led Underwater Lamp 1100LM Outdoor

heguang History :

2006:

Established in Shenzhen ,near to Shenzhen Airport and HongKong

2009-2011:

-Glass PAR56 pool lights
-aluminum PAR56 pool lights
-wall mounted swimming pool lights
GLUE FILLED WATERPROOF

2012-2014:

-RGB 100% SYNCHRONOUS CONTROLLER
-ABS material PAR56
-Stainless steel PAR56
-Die casting aluminum PAR56
-Surface mounted led pool lights
STRUCTURE WATERPROOF TECHNOLOTY

2015-2017:

-Flat ABS PAR56 pool lights
-LED fountain lights
-LED underwater lights
-Wall mounted lights for concrete pool
-Wall mounted lights for vinyl pool
-Wall mounted lights for fiberglass pool
-2 wires DMX control system

2018-2021:

-PAR56 niches/housing
-New underwater lights
-New Fountain Lights
-LED underground lights
-UL LISTED (US and CANADA)

FAQ

Are LED pool lights worth it?
LED pool lights cost more than halogen or incandescent lights. However, most LED bulbs have

an expected lifespan of 30,000 hours, making them a worthwhile investment, especially when

you consider that incandescent lights usually last only 5,000 hours. Best of all, LED lights use

a fraction of the energy compared to incandescent lights, so they’ll save you money in the long term.

How many pieces of lamp can connect with one RGB synchronous controller?

It doesn’t depend on the power. It depend on quantity, maximum is 20pcs. If it plus the amplifier,

it can plus 8pcs amplifier. Totally the quantity of led par56 lamp is 100pcs. And RGB Synchronous

controller is 1 pcs, amplifier is 8pcs.

Why choose your factory?

We in led pool lighting over 10 years, iWe have own professional R&D and production and sales

team.we are the only one China supplier who is listed in UL certificate in Led Swimming pool light industry.
